Toyota Soluna

1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General

Discontinued model Data version 2004-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 5 illustrations

Illustrations

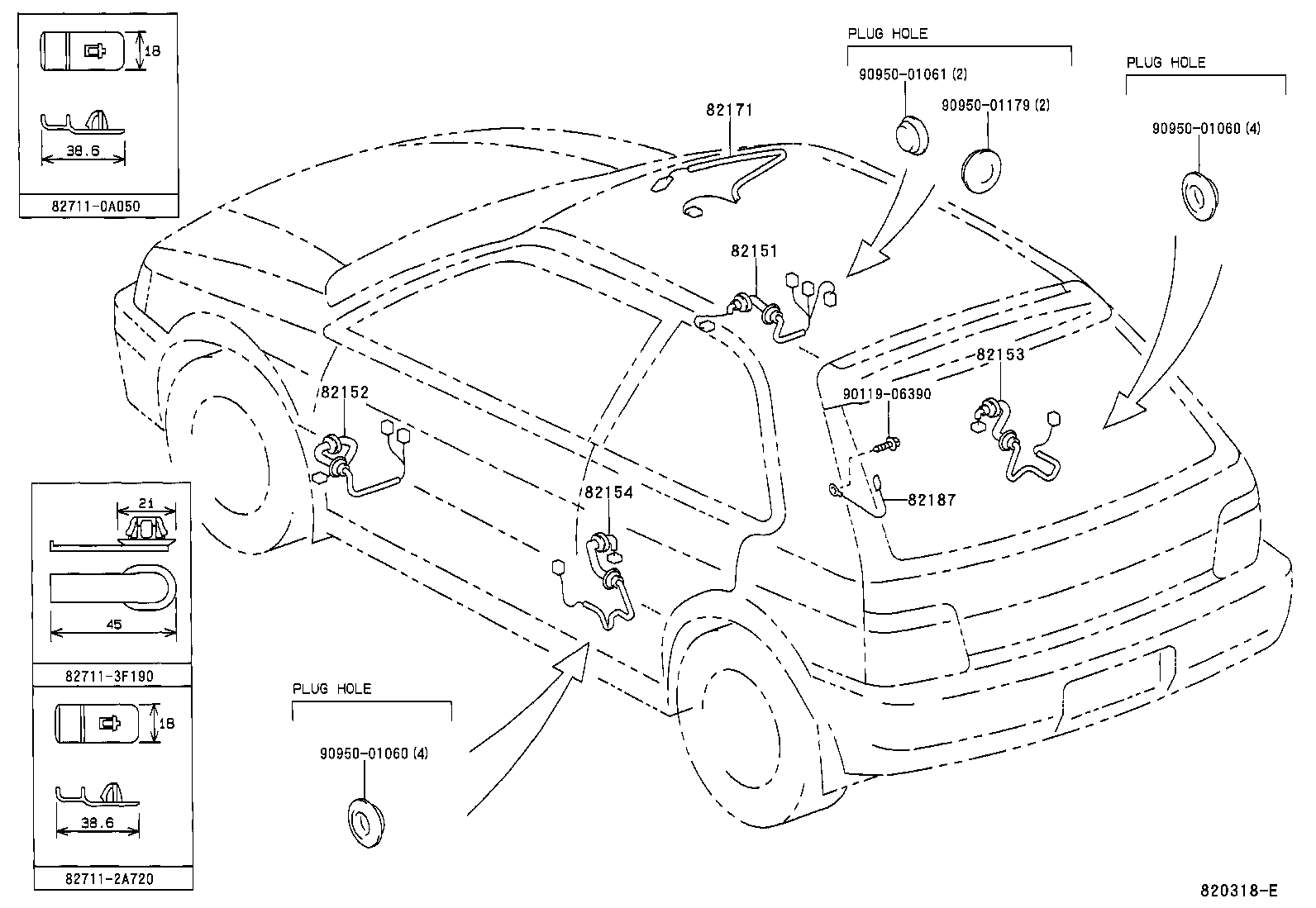

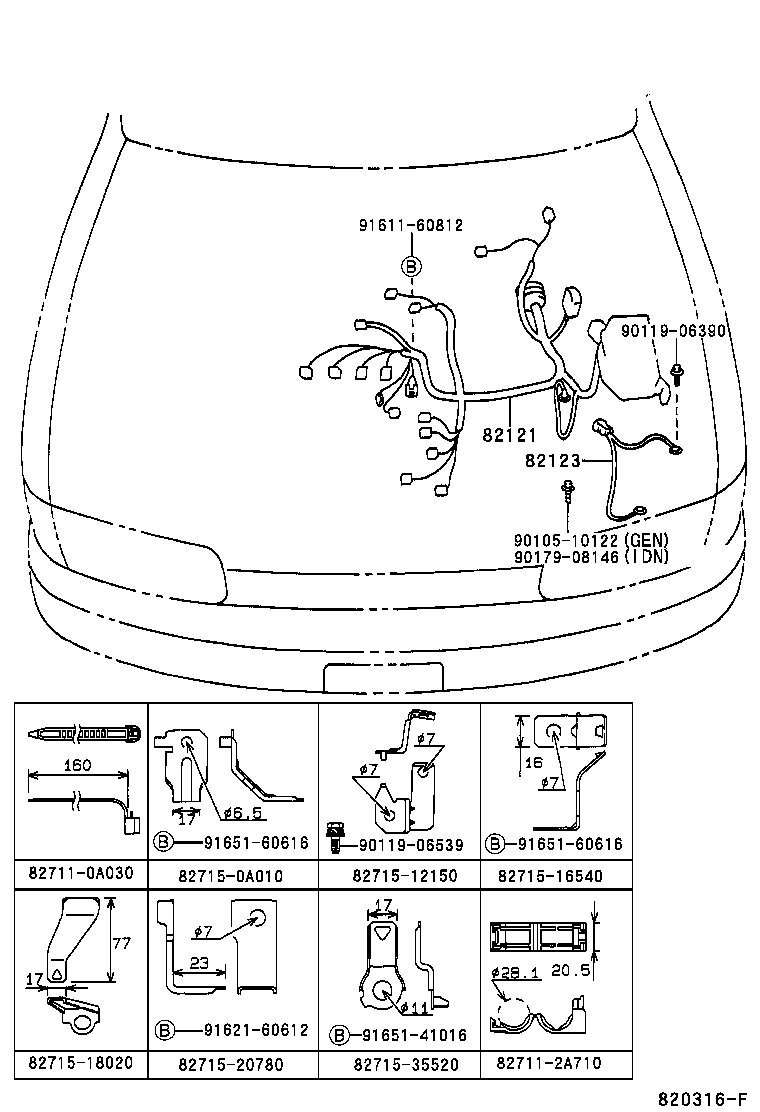

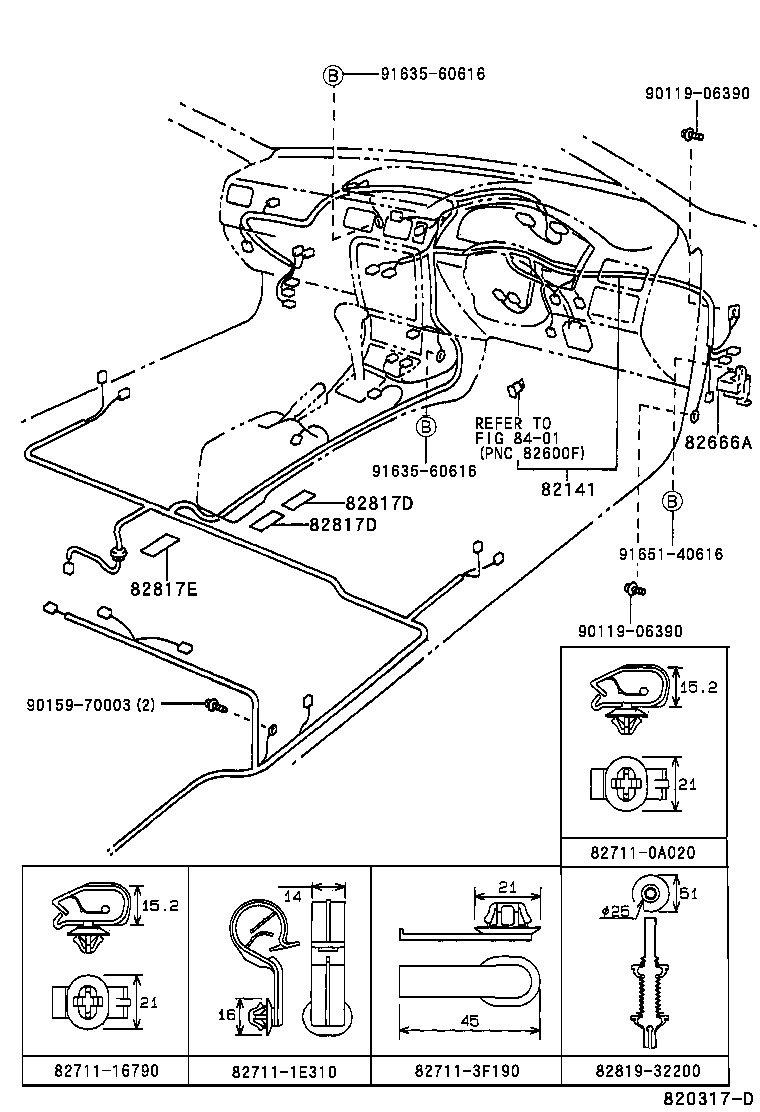

Figure 820315D 820315D 1996-12 → — Figure 820316F 820316F 1996-12 → — Figure 820317D 820317D 1996-12 → — Figure 820318E 820318E 1996-12 → — Figure 820319 820319 1996-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82666A Holder, Connector NO.2
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
