Toyota Soluna

1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General

Discontinued model Data version 2004-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

12 part groups · 7 illustrations

Illustrations

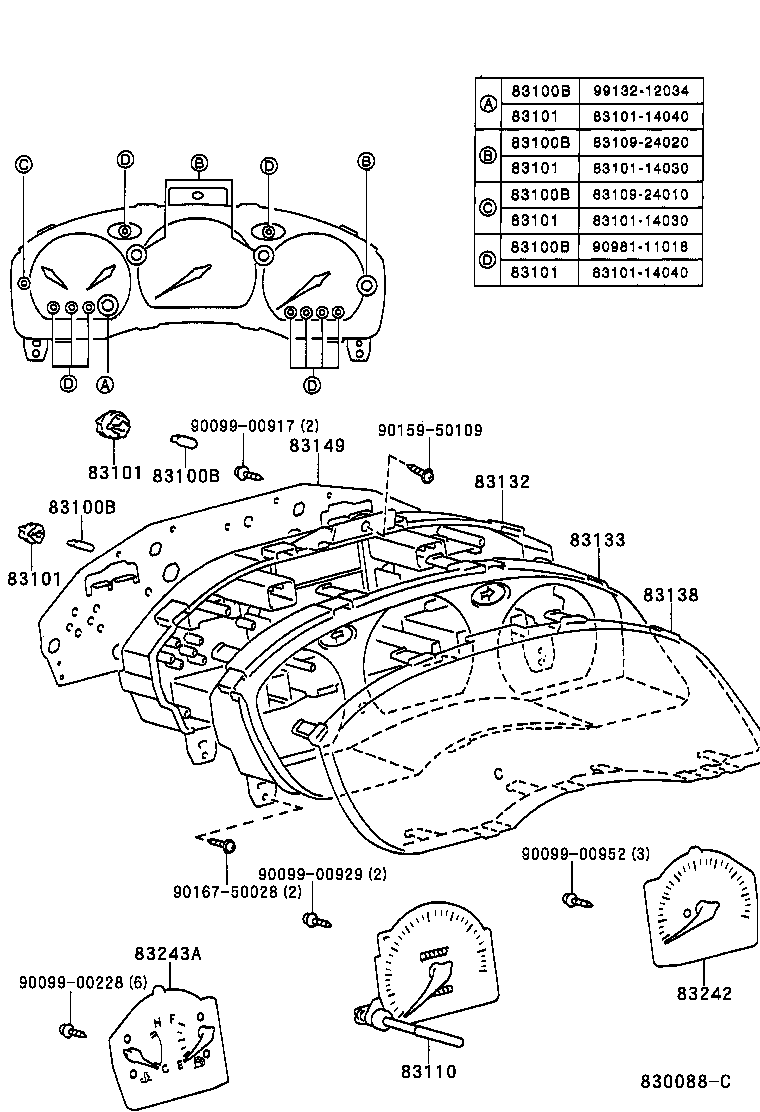

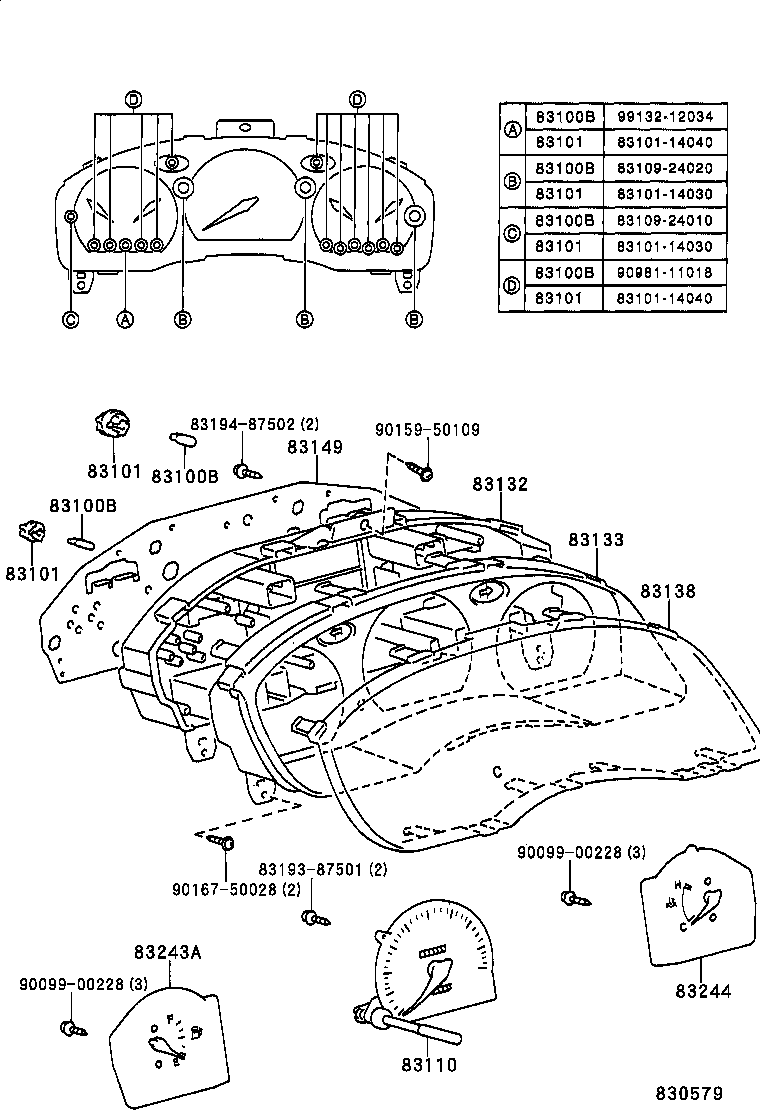

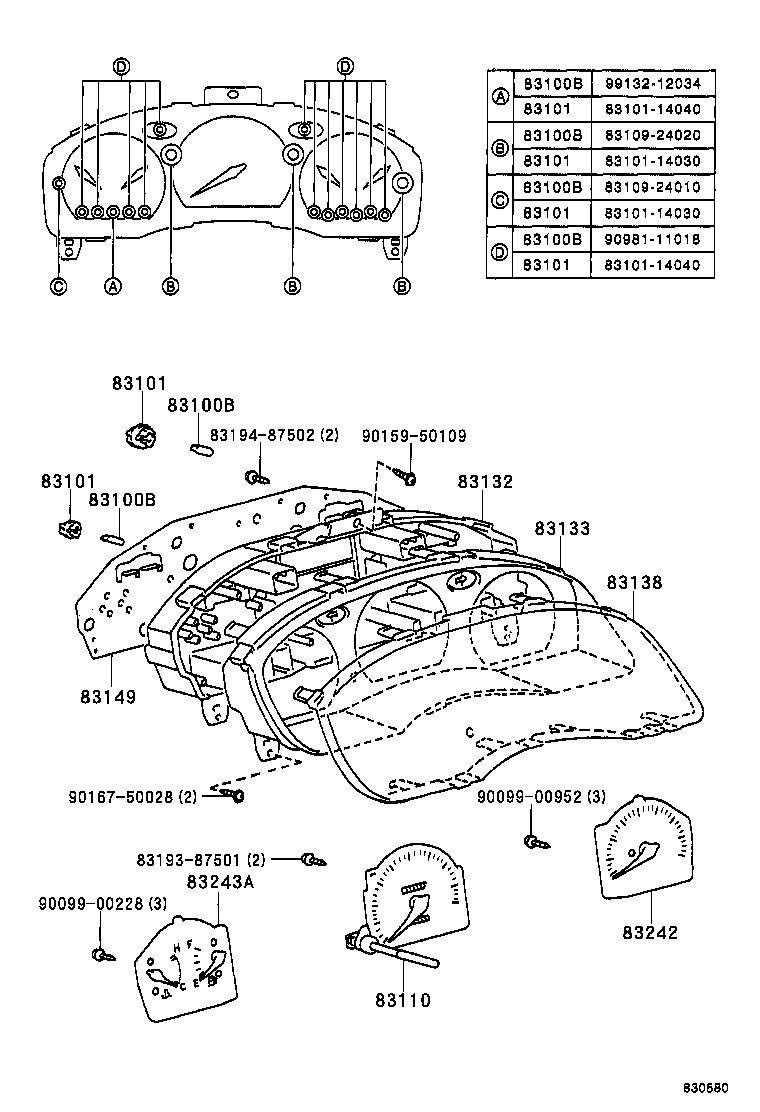

Figure 830079C 830079C 1996-12 → 1999-10 Figure 830079C 830079C 1999-10 → — Figure 830579 830579 1999-10 → — Figure 830088C 830088C 1996-12 → 1999-10 Figure 830088C 830088C 1999-10 → — Figure 830580 830580 1999-10 → — Figure 830080A 830080A 1996-12 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83149 Plate, Meter Circuit
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
