Toyota Soluna
1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General
Discontinued model
Data version 2004-04

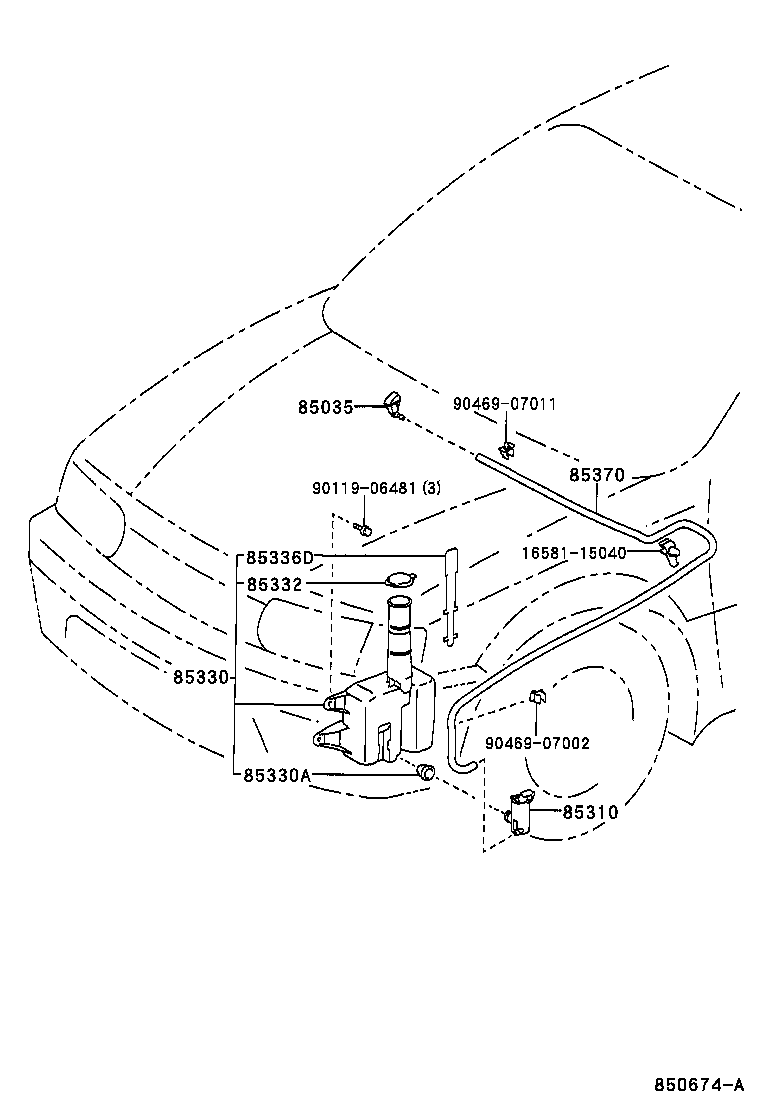

Windshield Washer
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035 | Nozzle Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85336D | Packing, Windshield Washer Jar |
| 85370 | Hose Assy, Windshield Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
