Toyota Soluna
1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General
Discontinued model
Data version 2004-04

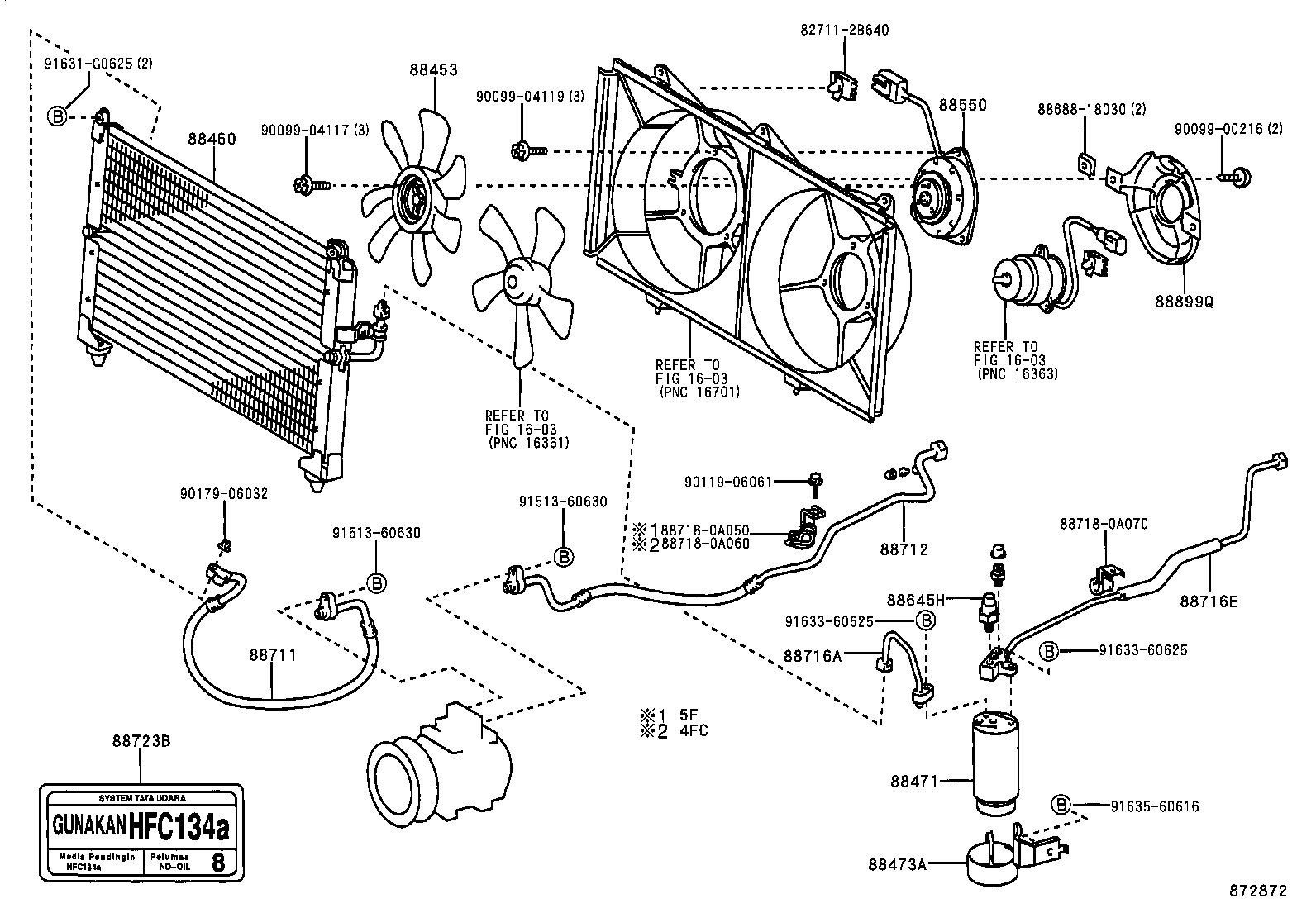

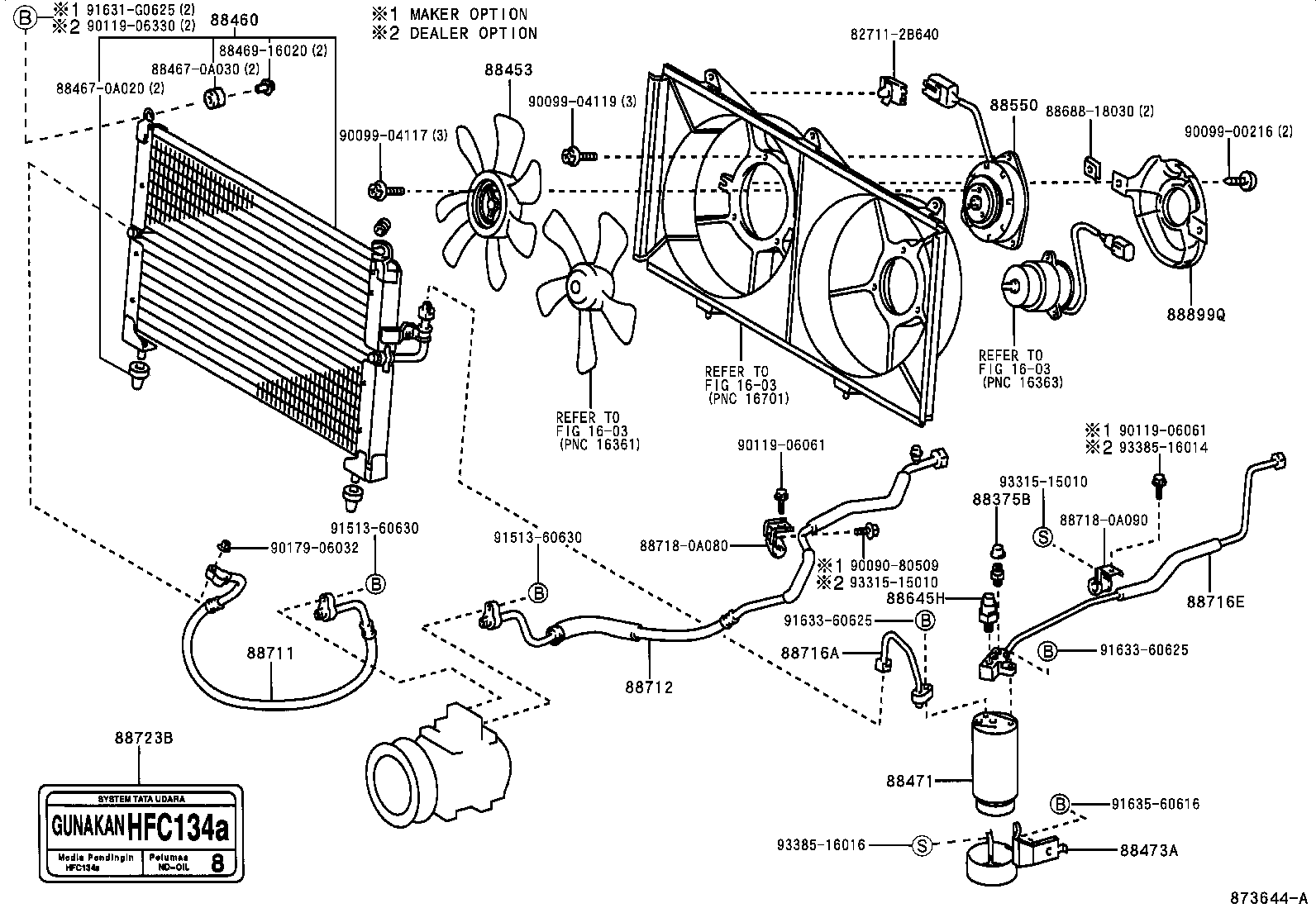

Heating & Air Conditioning - Cooler Piping
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375B | Cap, Service Valve, NO.1 |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88460 | Condenser Assy, Cooler |
| 88471 | Tank, Receiver Air Conditioner |
| 88473A | Holder, Receiver |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88645H | Switch, Pressure NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88723B | Label, Cooler Service Caution |
| 88899Q | Plate, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
