Toyota Soluna
1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General
Discontinued model
Data version 2004-04
Heating & Air Conditioning - Compressor
17 part groups · 2 illustrations
Part groups

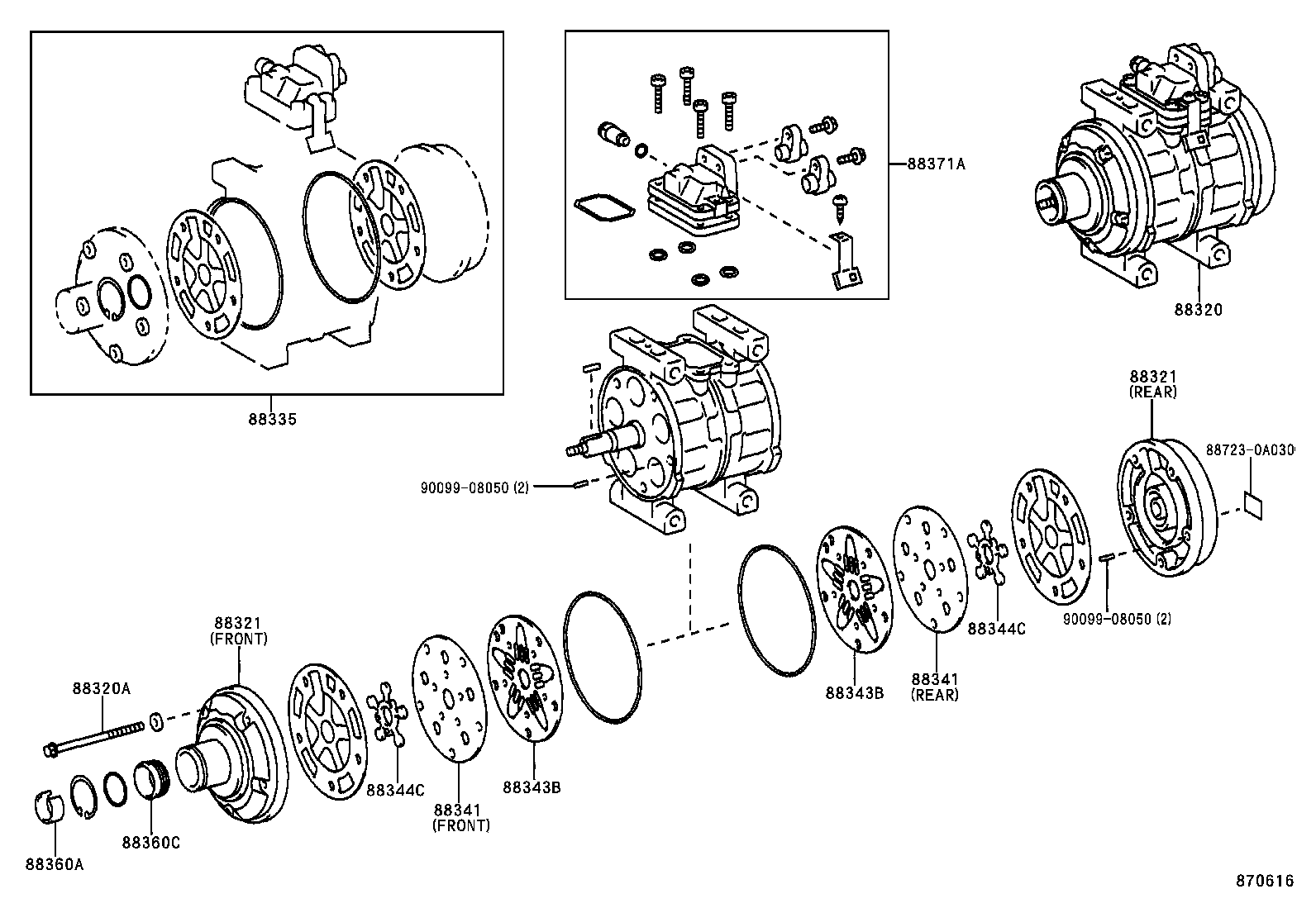

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88321 | Head, Cooler Compressor Cylinder |
| 88335 | Gasket Kit, Overhaul |
| 88341 | Plate, Front Valve |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88371A | Valve, Suction |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446 | Bolt, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
