Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

14 part groups · 3 illustrations

Illustrations

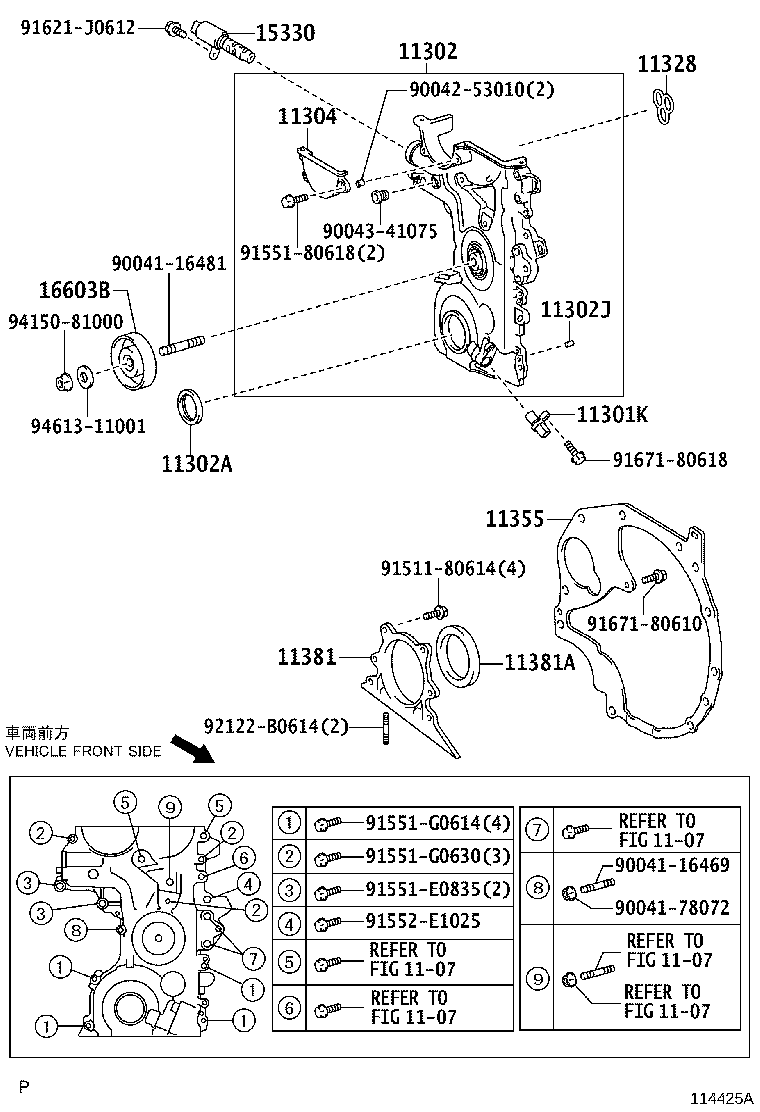

Figure 112565C 112565C 2002-10 → — Figure 114425A 114425A 2006-08 → — Figure 114426A 114426A 2006-08 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
15330 Valve Assy, Cam Timing Oil Control
16603B Pulley Sub-assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
