Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

33 part groups · 3 illustrations

Illustrations

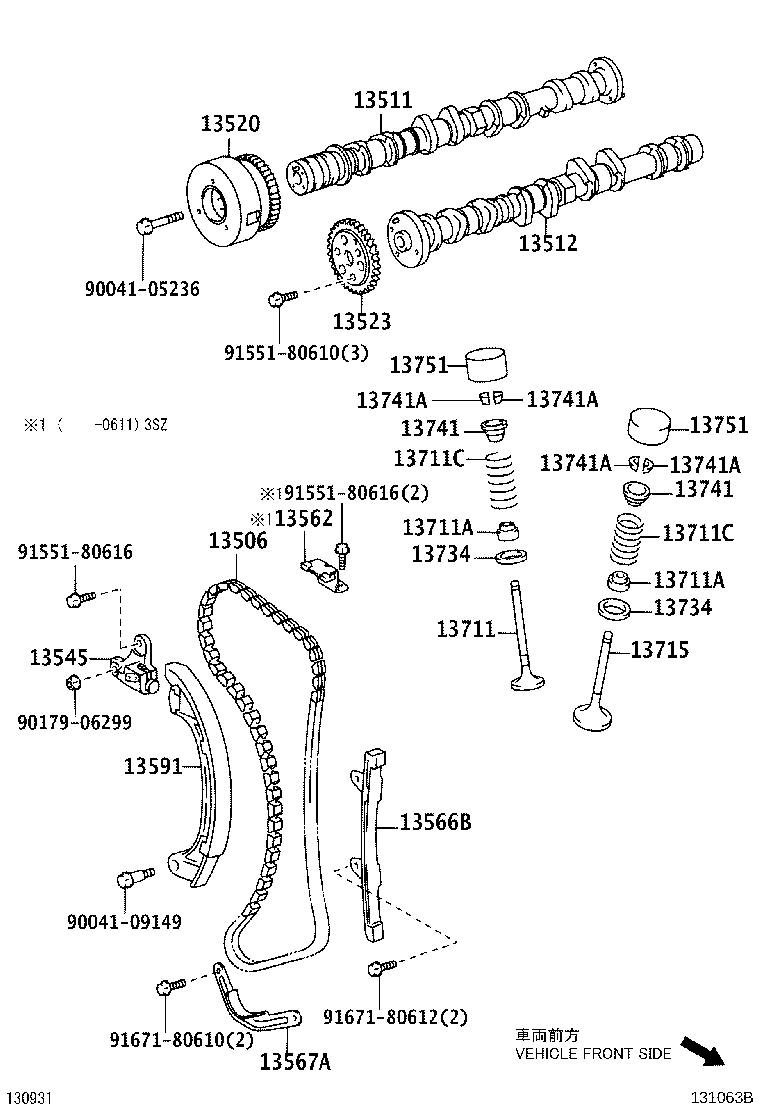

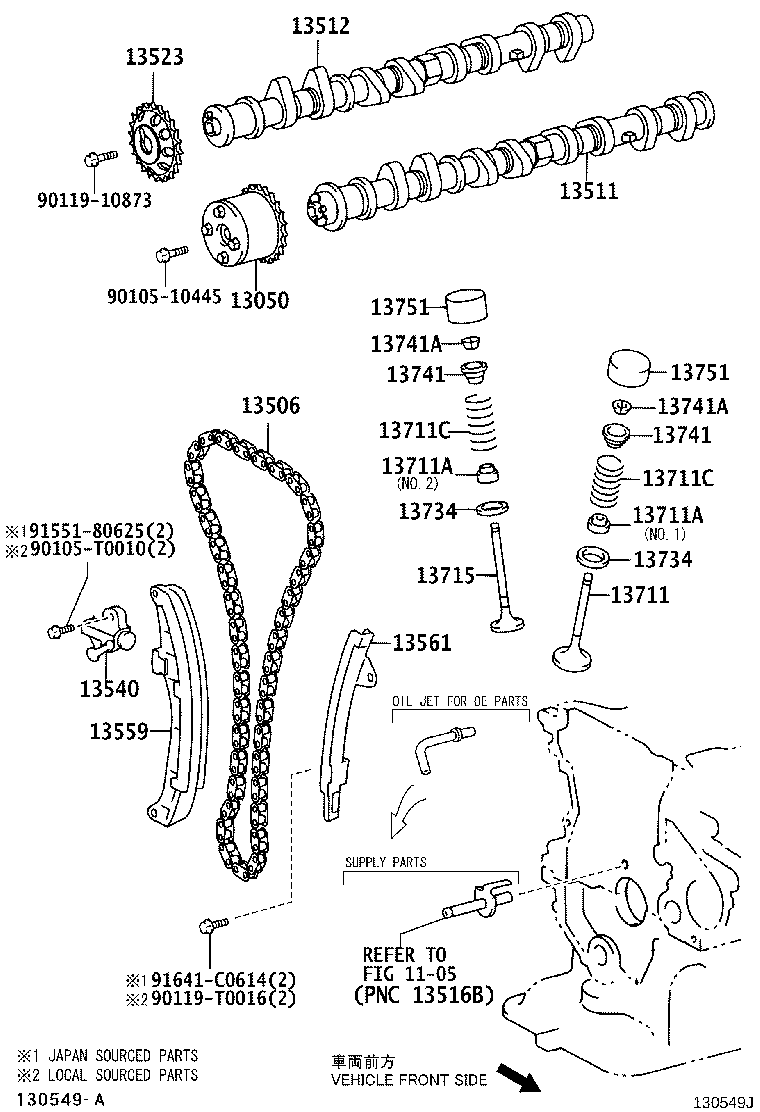

Figure 130030D 130030D 2002-10 → — Figure 130549J 130549J 2002-12 → — Figure 131063B 131063B 2006-08 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505B Bolt, Flange (FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13540 Tensioner Assy, Chain, NO.1
13545 Plunger, Chain Tensioner
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13562 Damper, Chain Vibration, NO.2
13566B Guide, Timing Chain
13567A Guide, Timing Chain, NO.2
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
