Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01

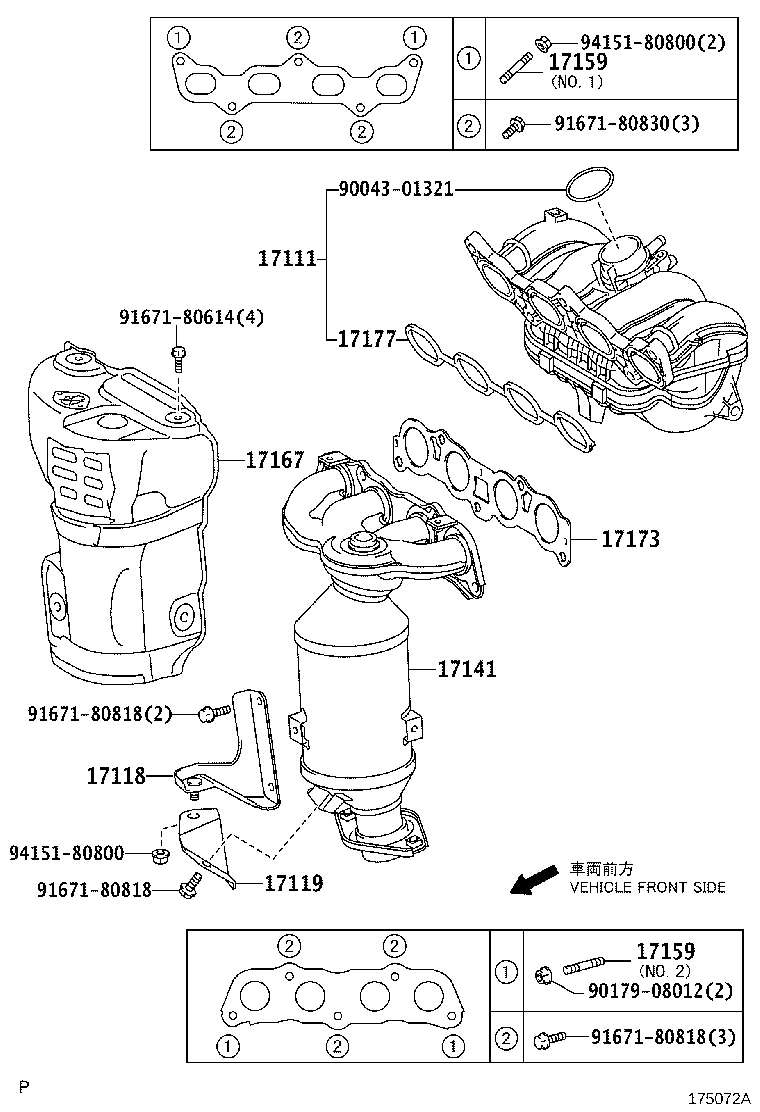

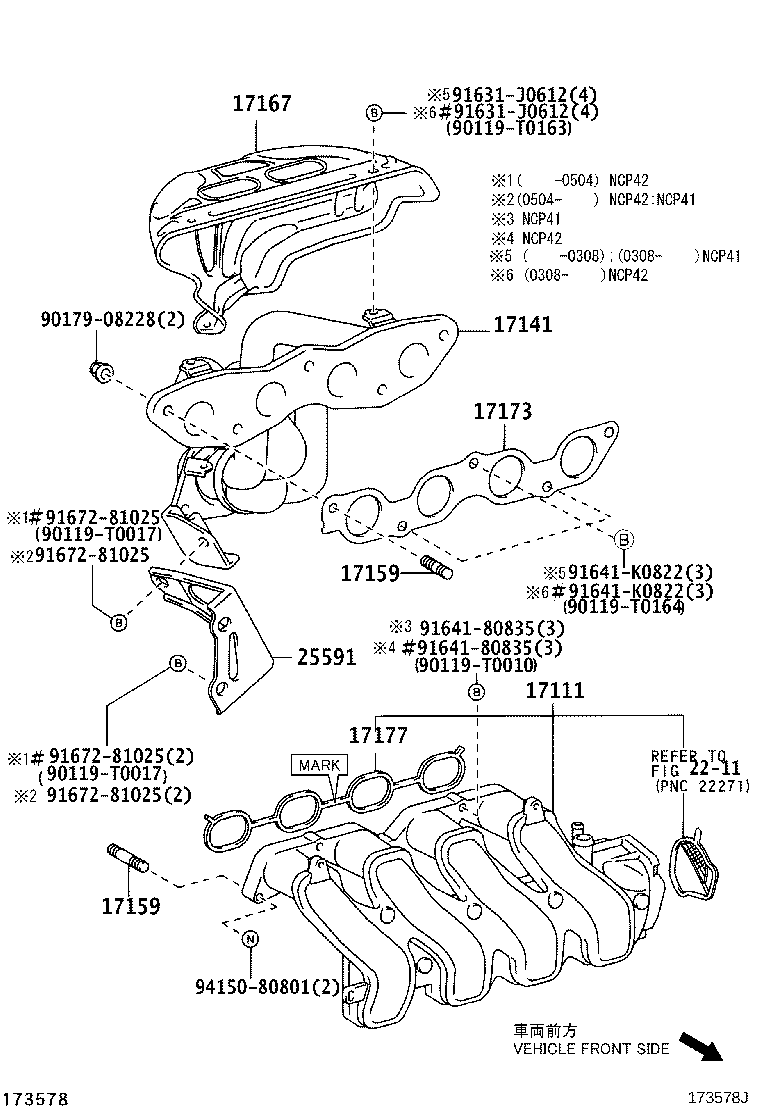

Manifold
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
