Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 3 illustrations

Illustrations

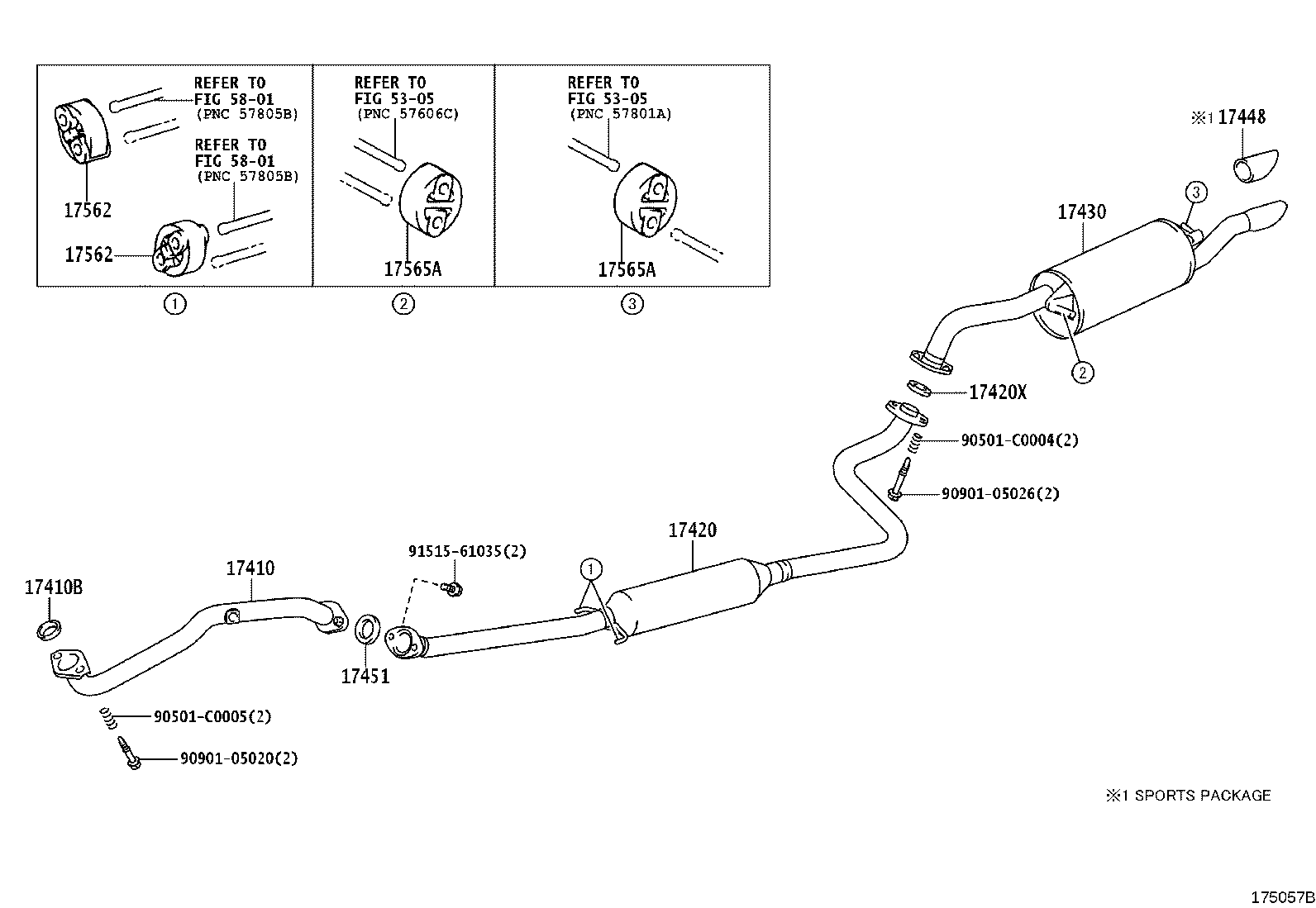

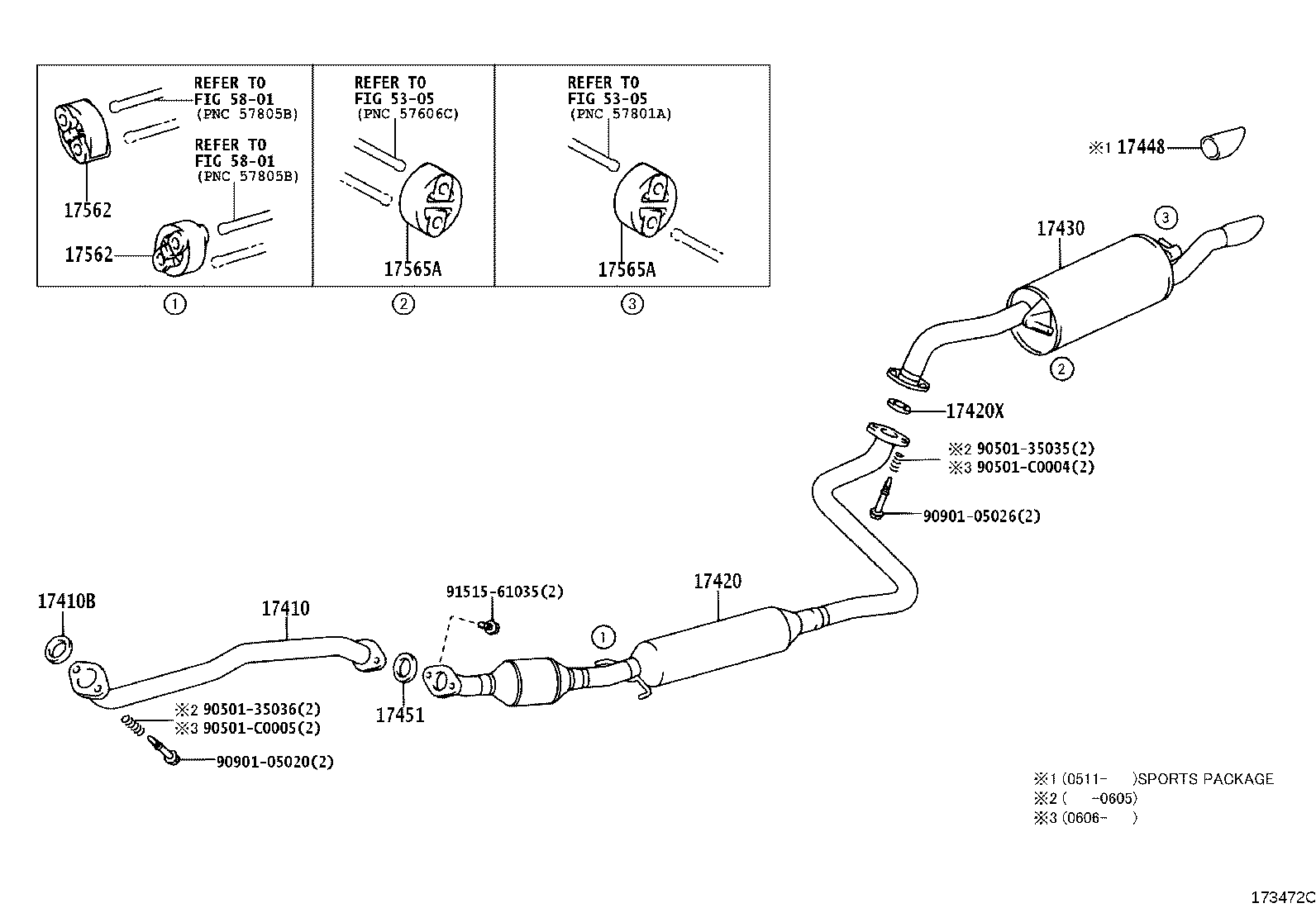

Figure 173577D 173577D 2002-12 → — Figure 173472C 173472C 2002-10 → 2006-08 Figure 175057B 175057B 2006-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
