Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 3 illustrations

Illustrations

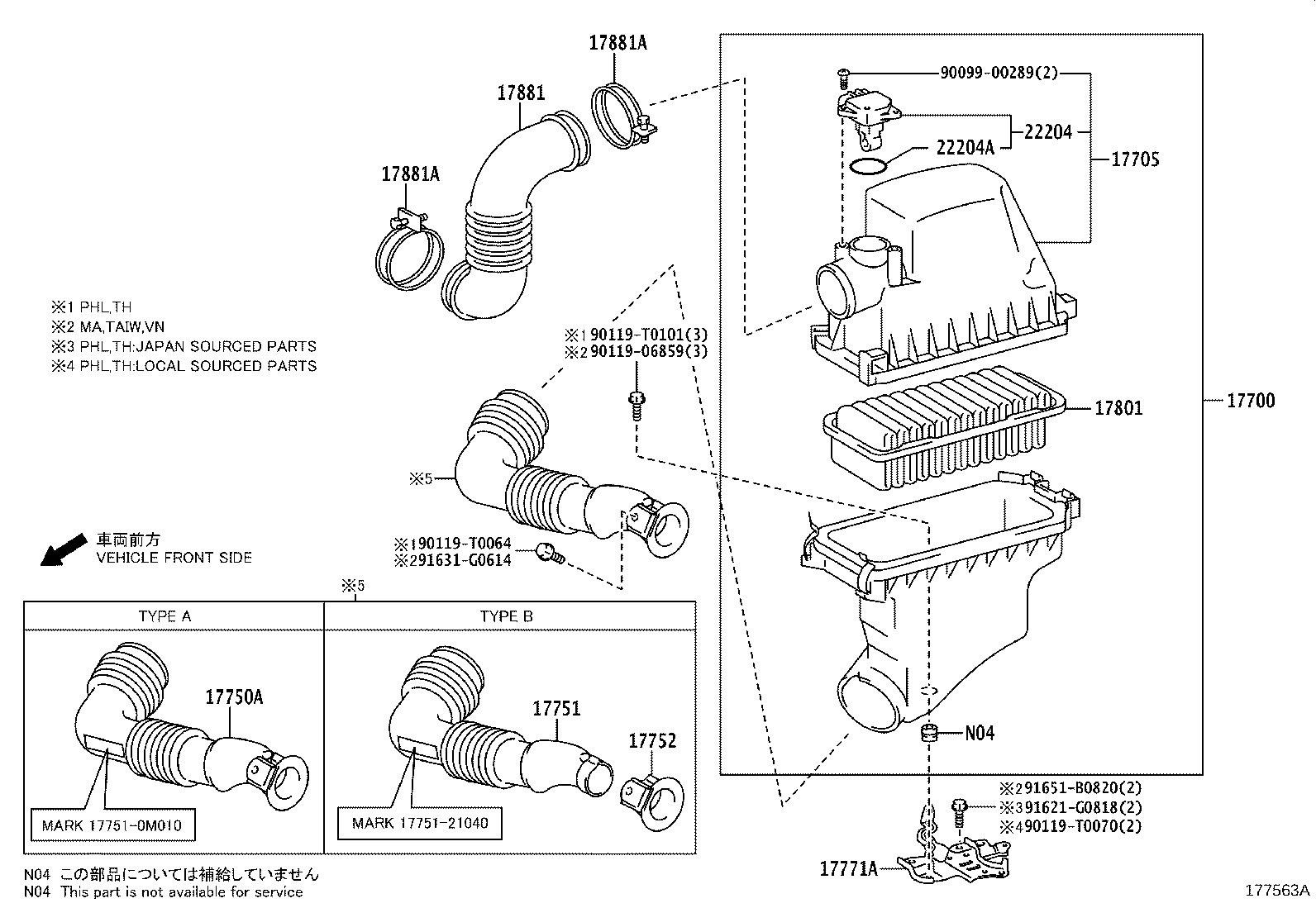

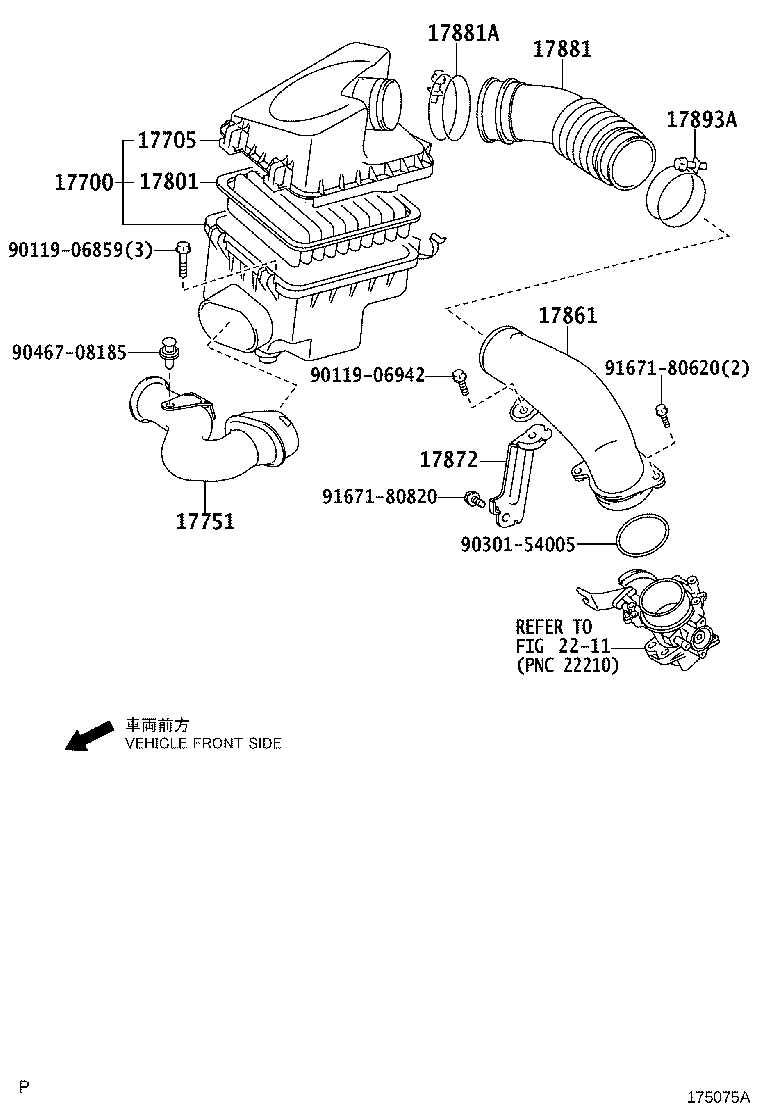

Figure 173470A 173470A 2002-10 → — Figure 177563A 177563A 2002-12 → — Figure 175075A 175075A 2006-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17872 Bracket, Intake Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
