Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 3 illustrations

Illustrations

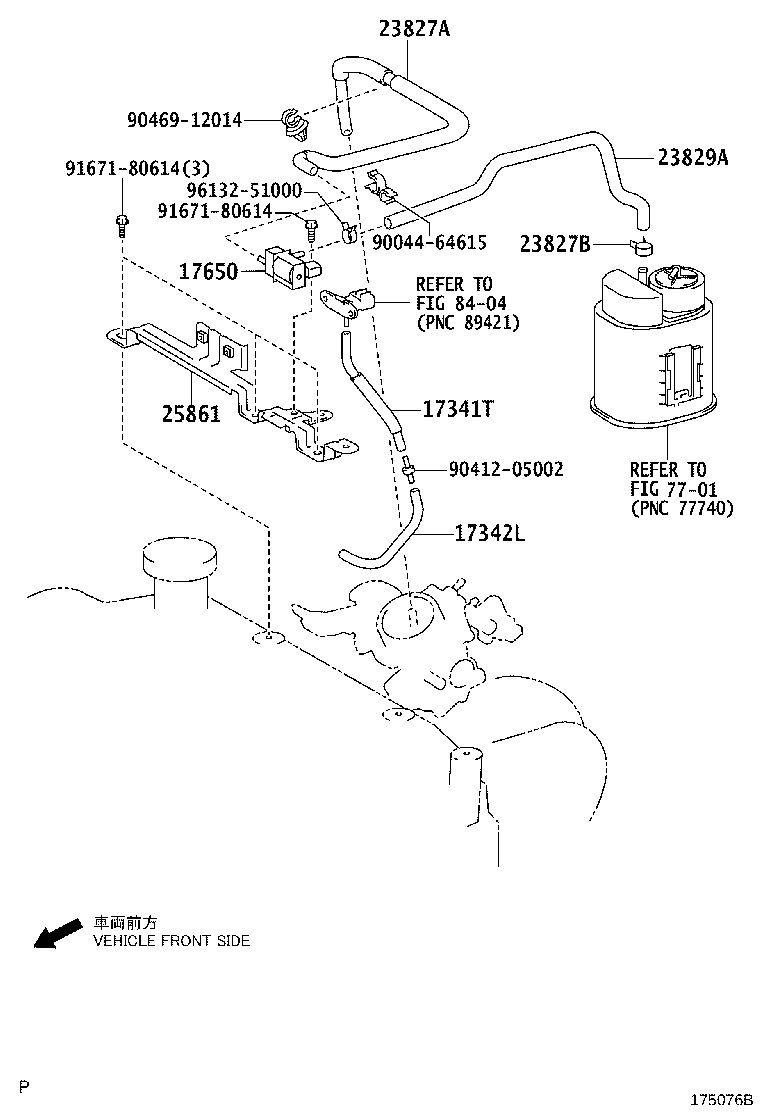

Figure 173471B 173471B 2002-10 → — Figure 173571B 173571B 2002-12 → — Figure 175076B 175076B 2006-08 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
