Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01

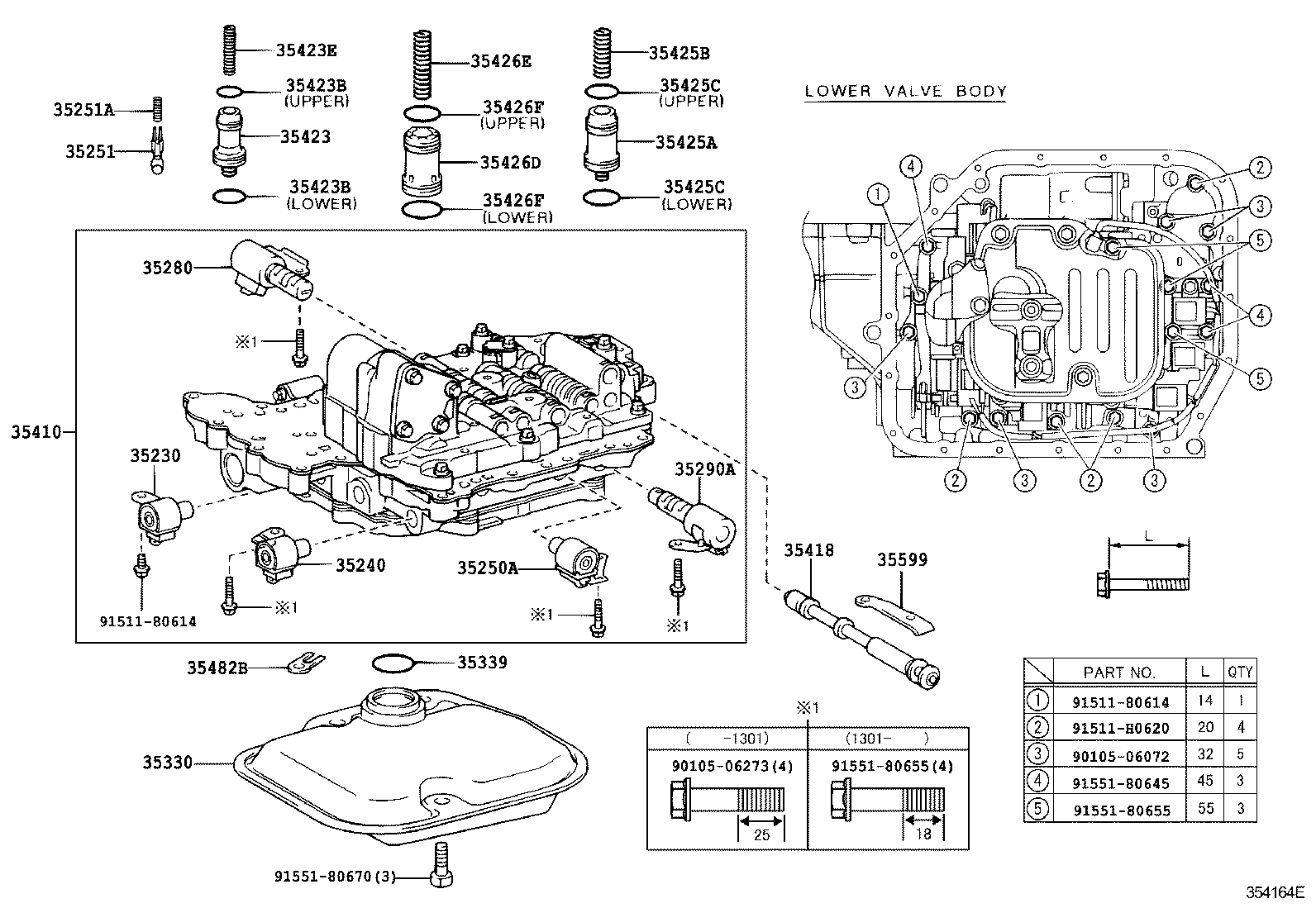

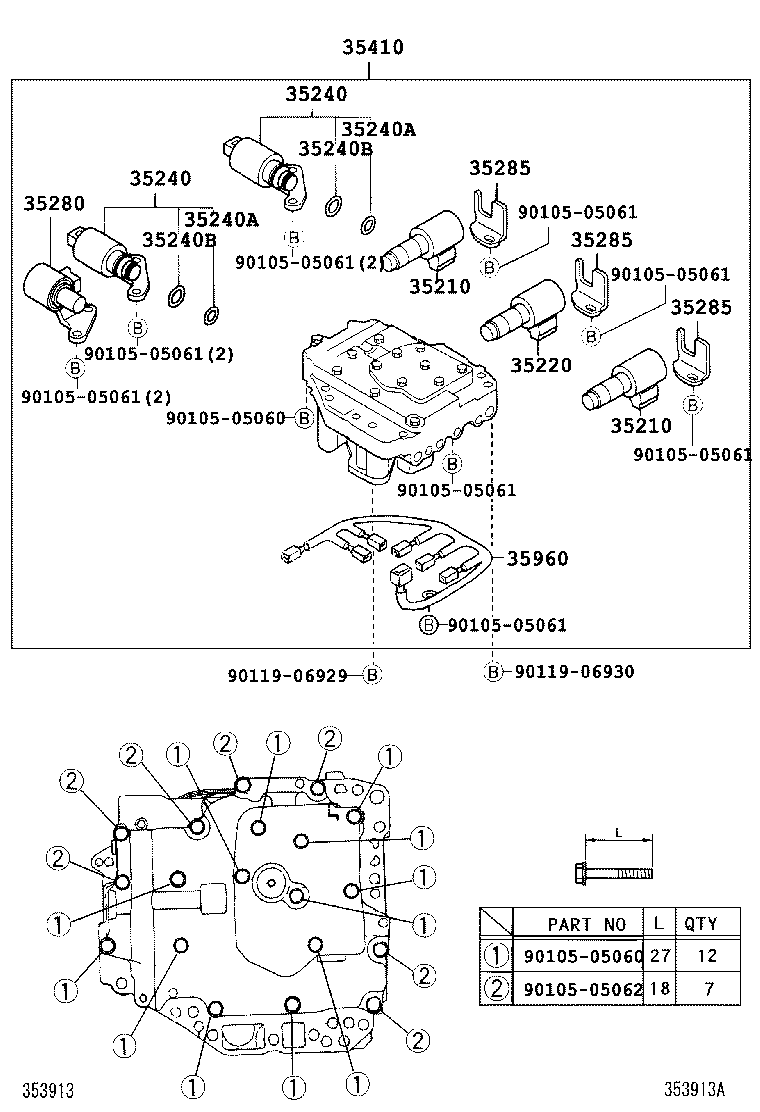

Valve Body & Oil Strainer (ATM)
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33485E | Plate, Lock |
| 35210 | Solenoid Assy, Clutch Control, NO.1 |
| 35220 | Solenoid Assy, Clutch Control, NO.2 |
| 35230 | Solenoid Assy, Transmission 3Way, NO.2 |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35240A | Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID) |
| 35240B | Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID) |
| 35250A | Solenoid Assy, Transmission, NO.3 |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35280 | Solenoid Assy, Lock UP Control |
| 35285 | Plate, Solenoid Lock |
| 35290A | Solenoid Assy, Line Pressure Control |
| 35303 | Strainer Sub-assy, Oil |
| 35303A | Ring, O (FOR OIL STRAINER) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35410 | Body Assy, Transmission Valve |
| 35418 | Valve, Manual |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35423 | Piston, B-2 Accumulator |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35423E | Spring, Compression (FOR B-2 ACCMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426D | Piston, C-3 Accumulator |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35482B | Clamp, Temperature Sensor |
| 35599 | Cover, Manual Detent Spring |
| 35960 | Wire, Solenoid |
| 82125J | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
