Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 6 illustrations

Illustrations

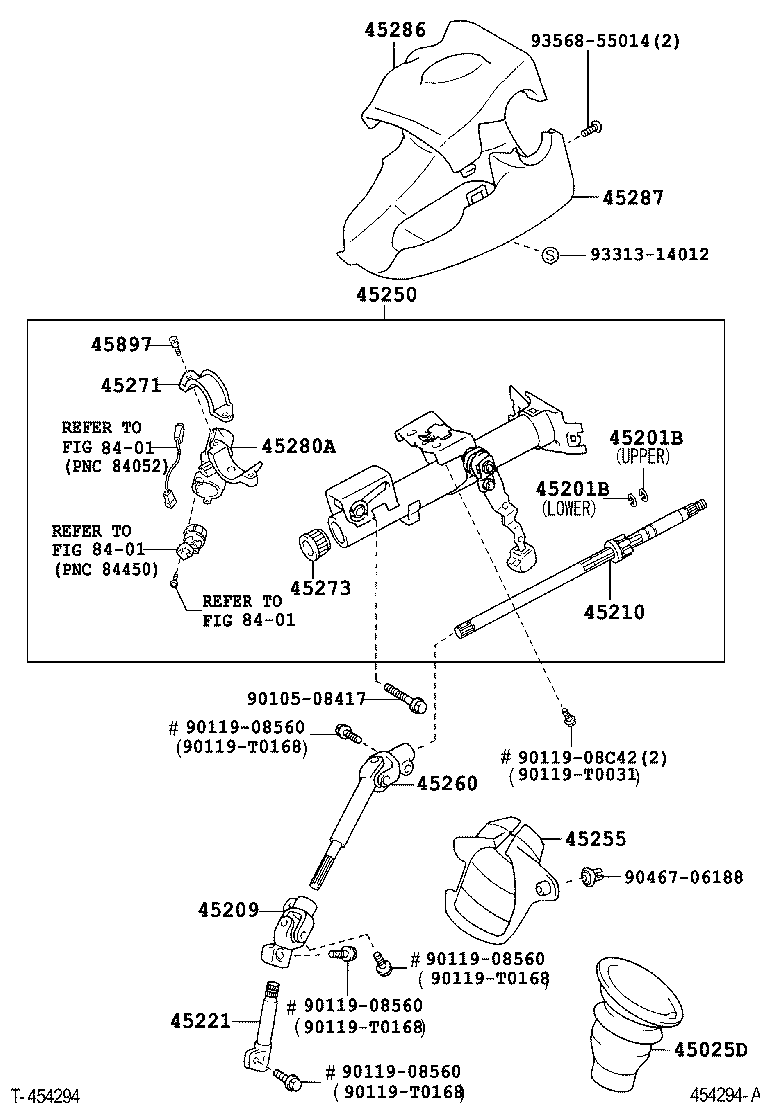

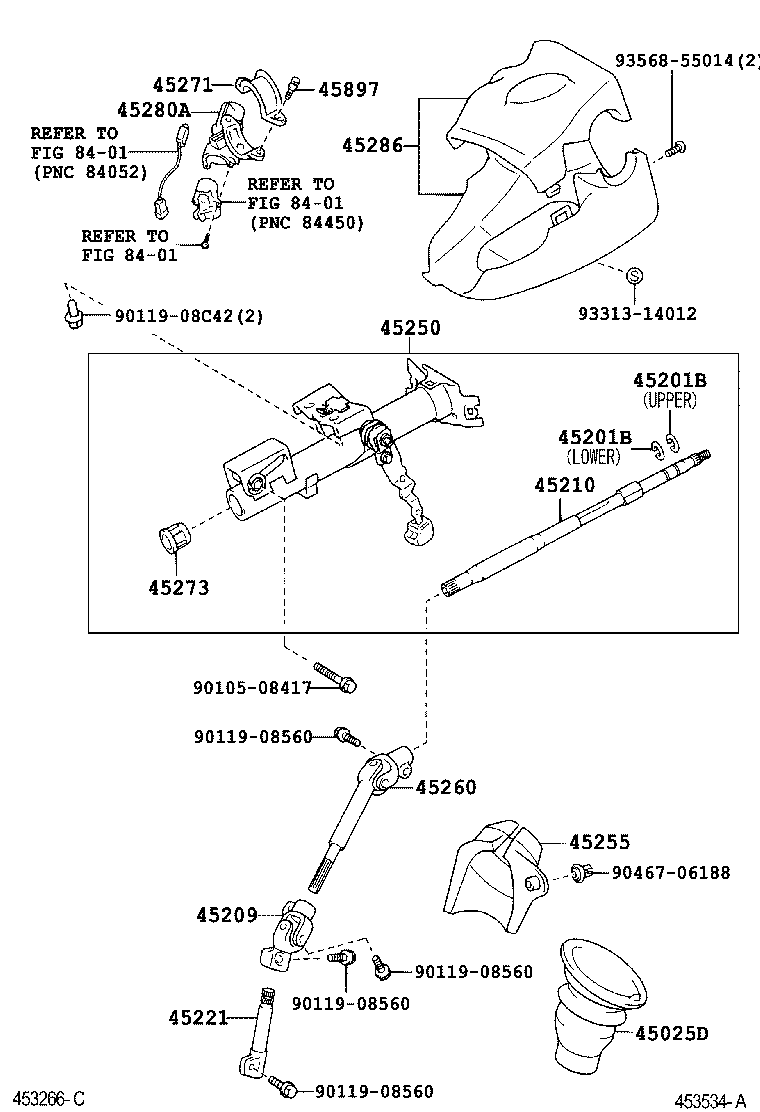

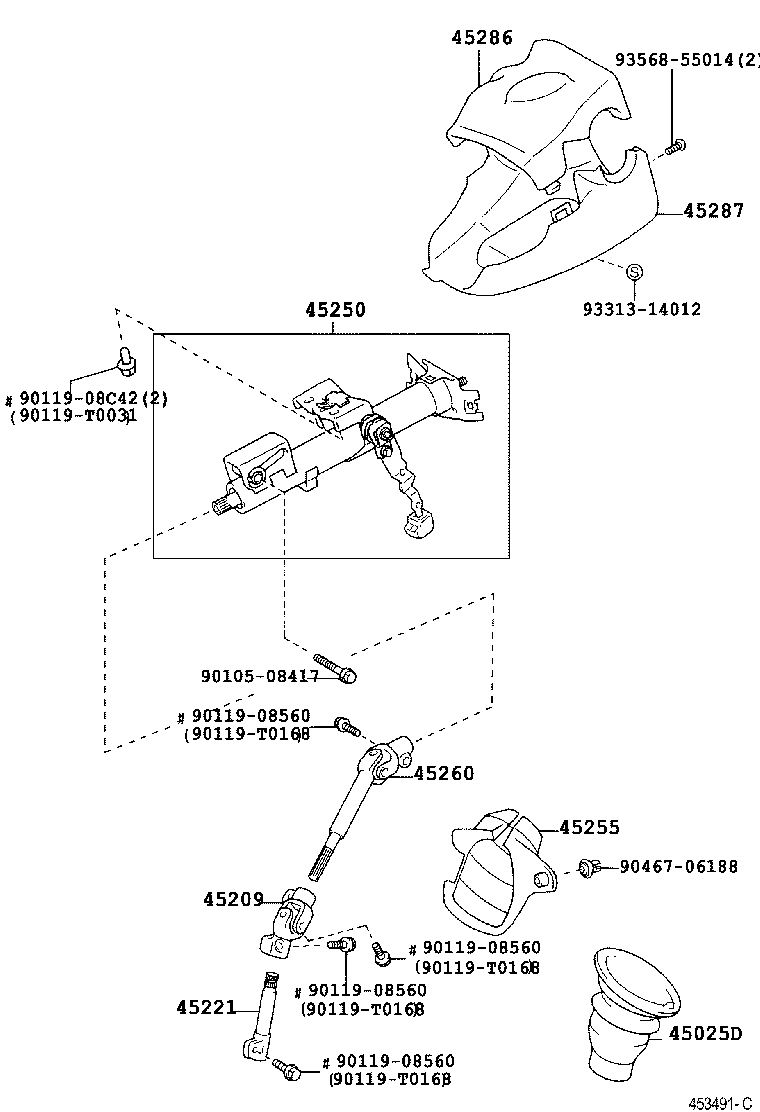

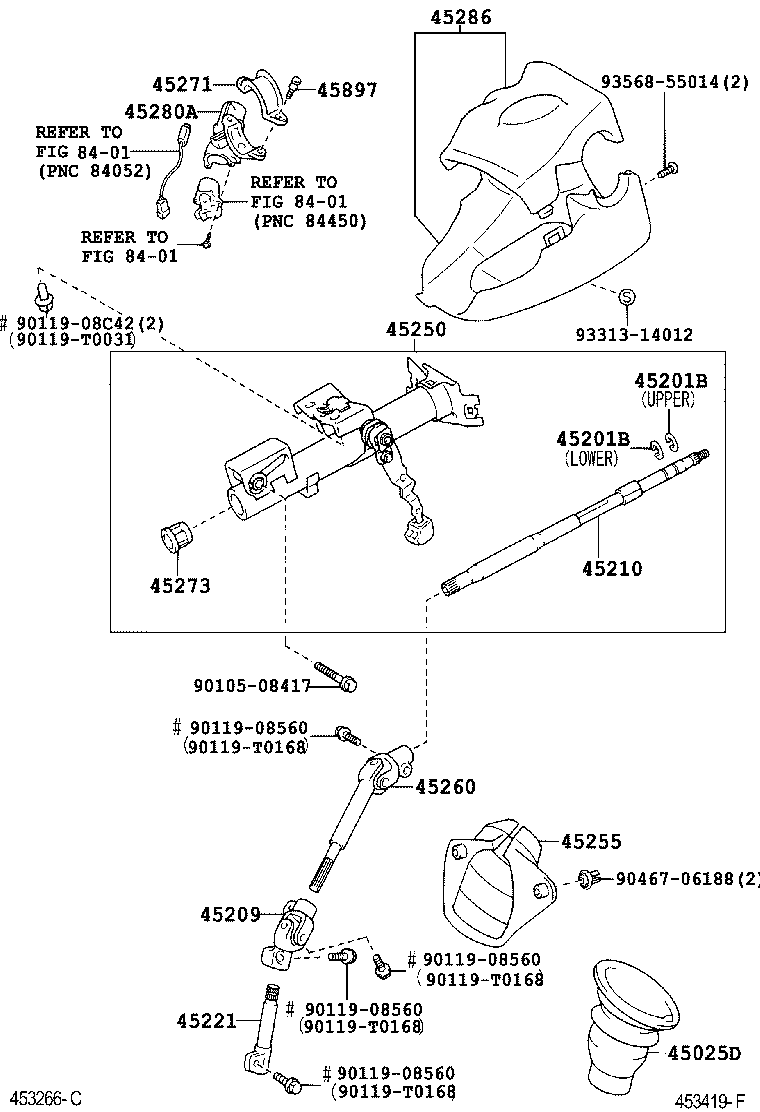

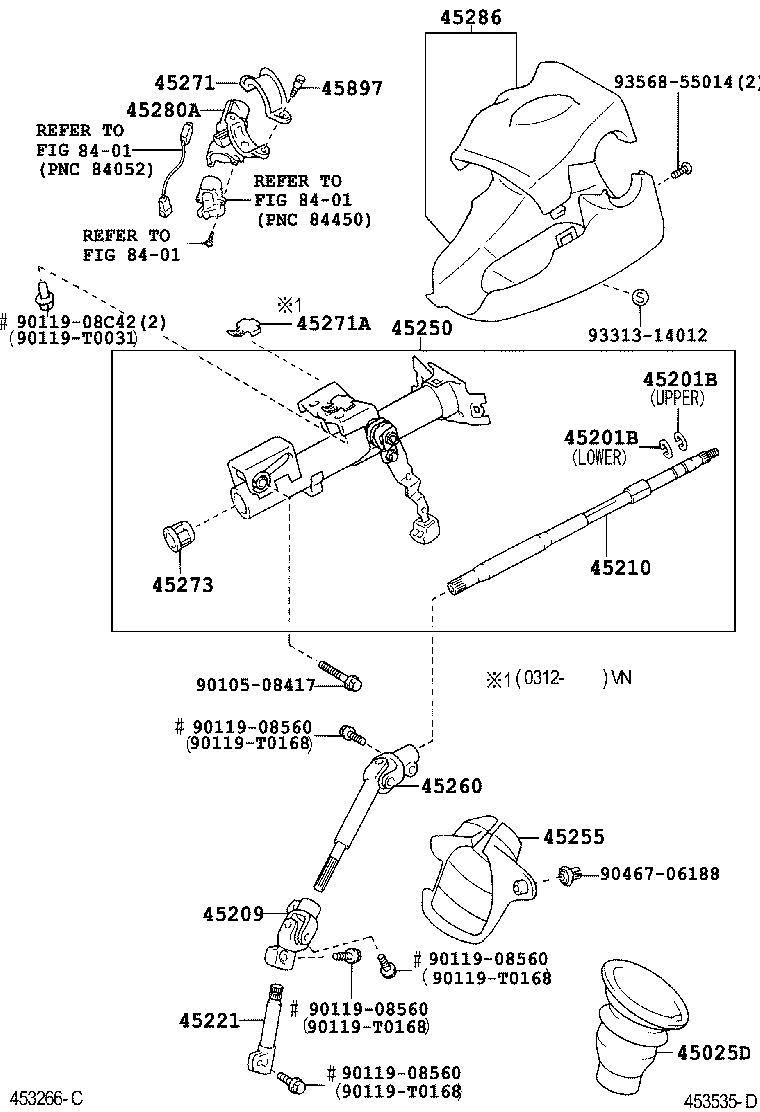

Figure 453266E 453266E 2002-10 → — Figure 453534A 453534A 2002-10 → 2005-11 Figure 453419F 453419F 2002-12 → — Figure 453491C 453491C 2003-03 → 2005-10 Figure 453535D 453535D 2003-05 → — Figure 454294B 454294B 2005-10 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45255 Plate, Steering Column Hole Cover
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45271A Clamp, Steering Column, Upper NO.2
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
