Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

15 part groups · 4 illustrations

Illustrations

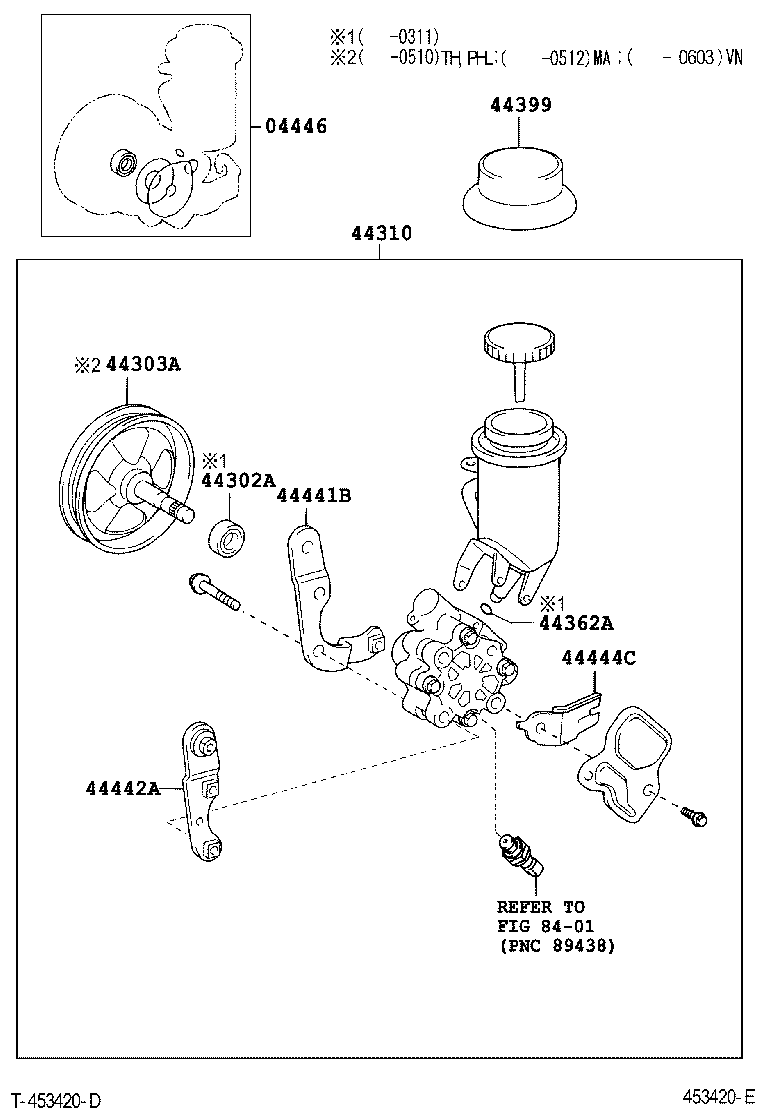

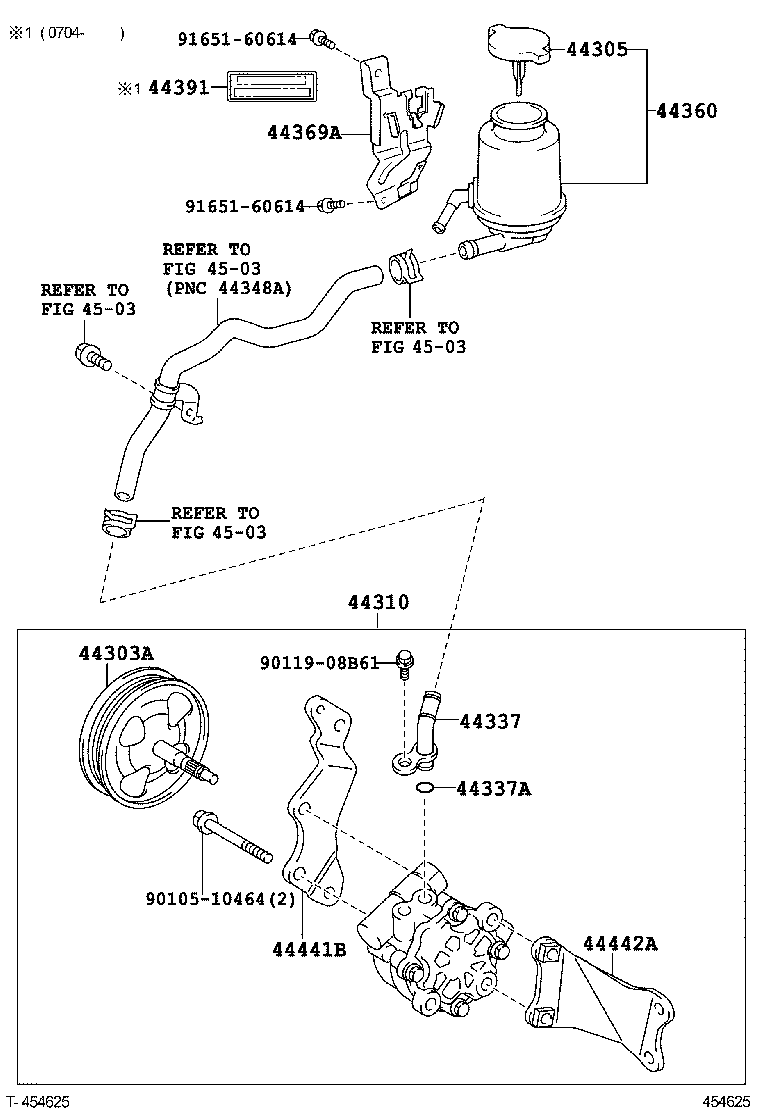

Figure 453267A 453267A 2002-10 → 2006-08 Figure 453420E 453420E 2002-12 → — Figure 453492B 453492B 2003-03 → — Figure 454625A 454625A 2006-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302A Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44369A Bracket, Oil Reservoir, NO.1
44391 Plate, Power Steering Oil Reservoir Caution
44399 Cover, Vane Pump Oil Reservoir
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
44444C Stay, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
