Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 4 illustrations

Illustrations

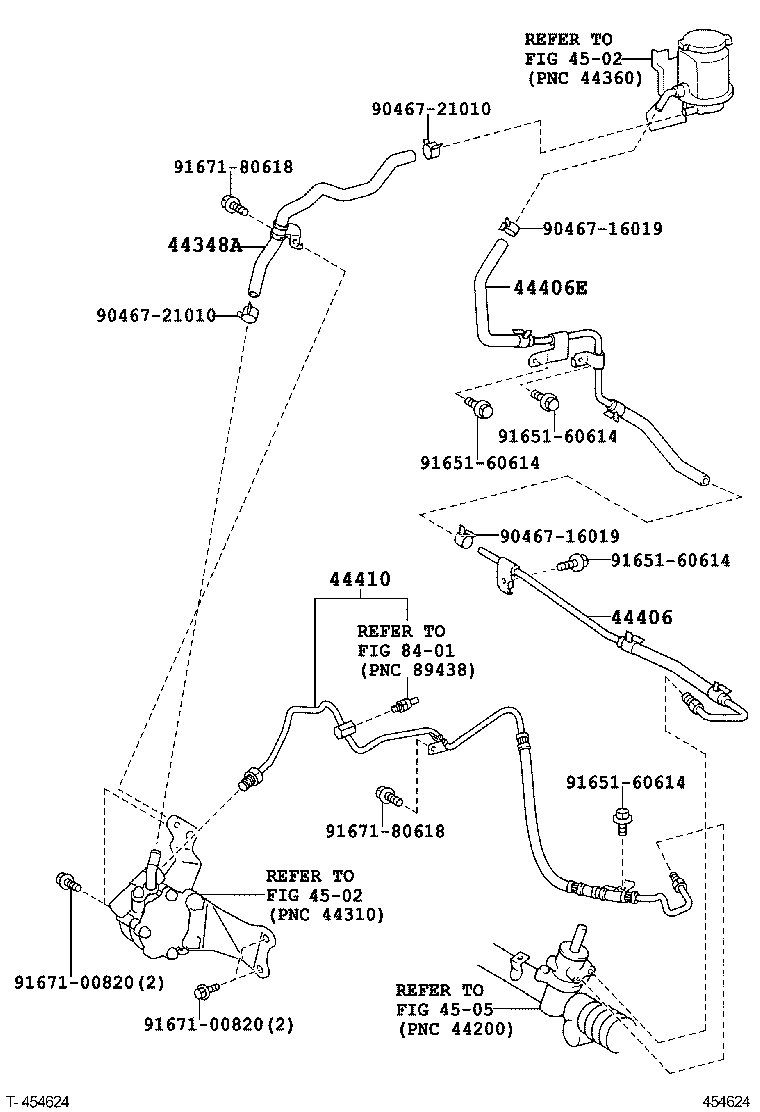

Figure 453275A 453275A 2002-10 → 2006-08 Figure 453421A 453421A 2002-12 → — Figure 453493A 453493A 2003-03 → — Figure 454624 454624 2006-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44406E Tube Sub-assy, Return, NO.2
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
44446 Strut, Adjusting
44446A Strut, Adjusting NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
