Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

5 part groups · 7 illustrations

Illustrations

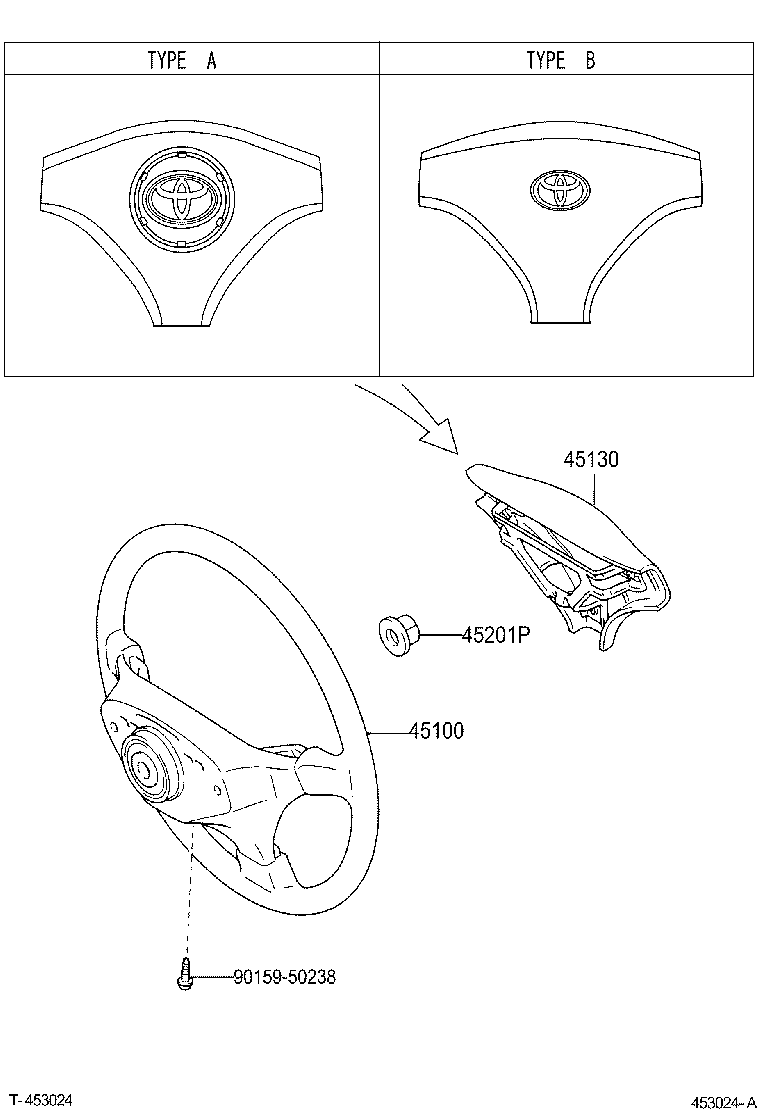

Figure 453422 453422 2002-10 → — Figure 453278 453278 2002-10 → — Figure 453024A 453024A 2002-12 → — Figure 453024A 453024A 2003-05 → 2004-09 Figure 453423 453423 2002-12 → — Figure 453423 453423 2004-09 → — Figure 453423 453423 2005-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
