Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

21 part groups · 5 illustrations

Illustrations

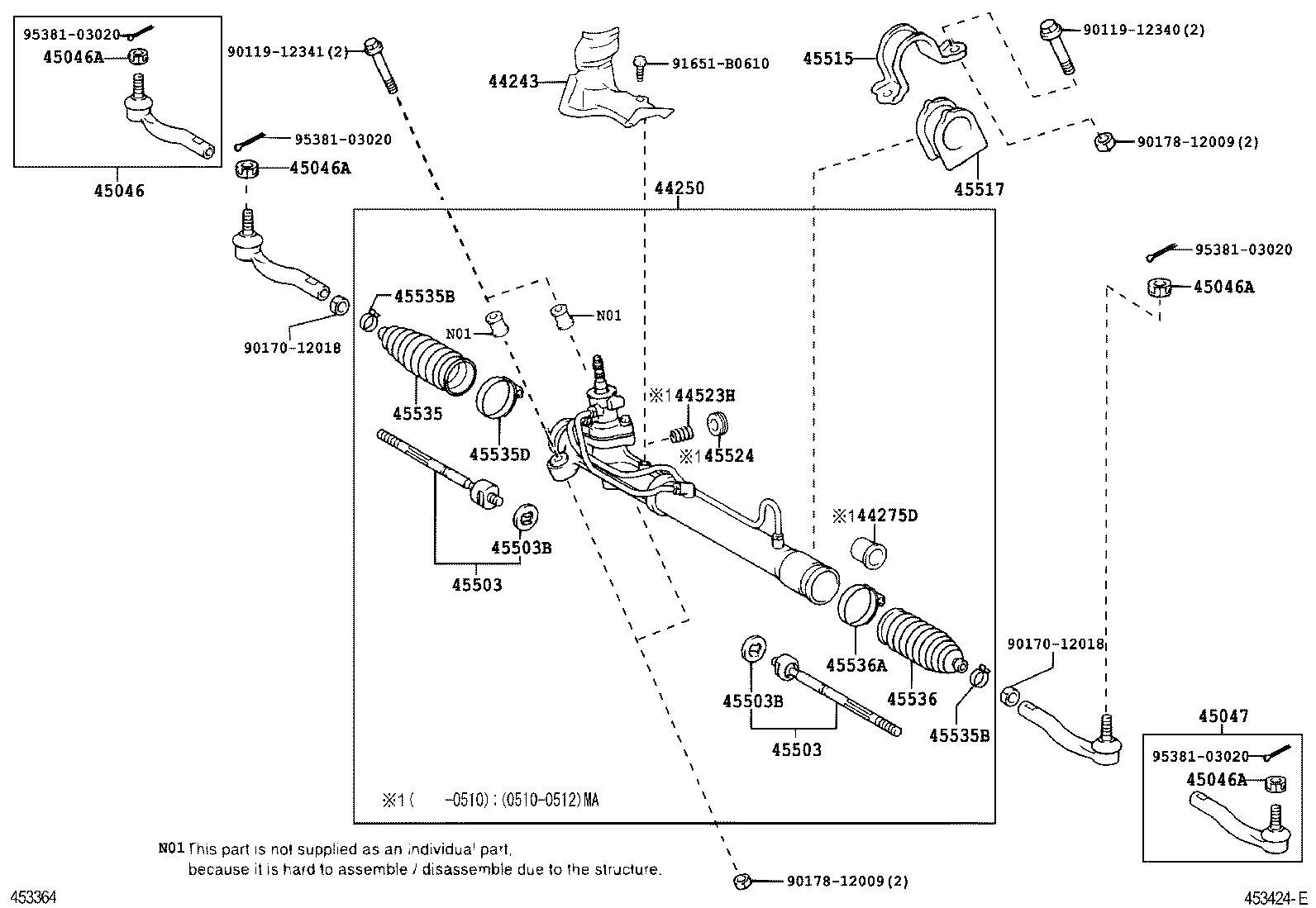

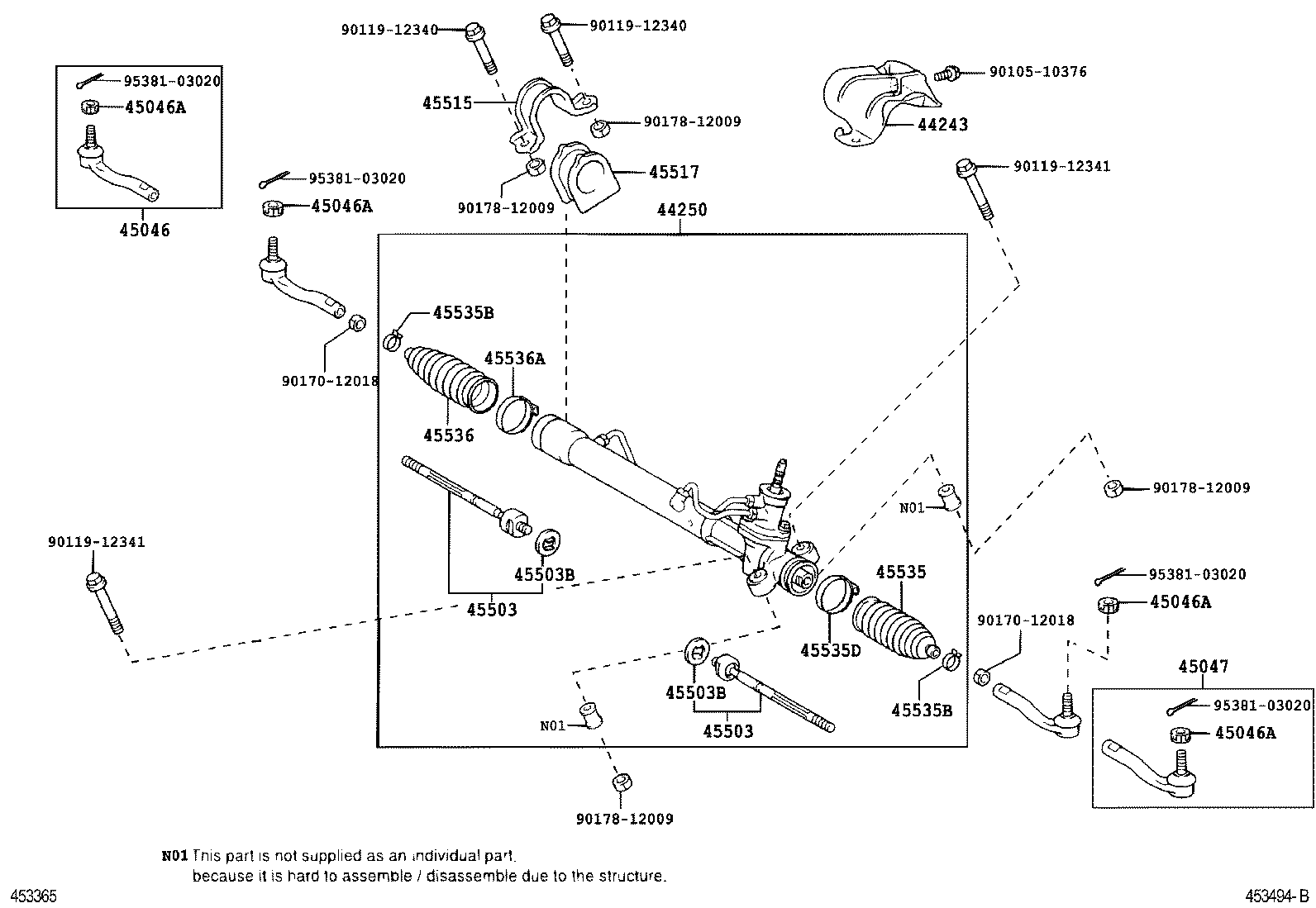

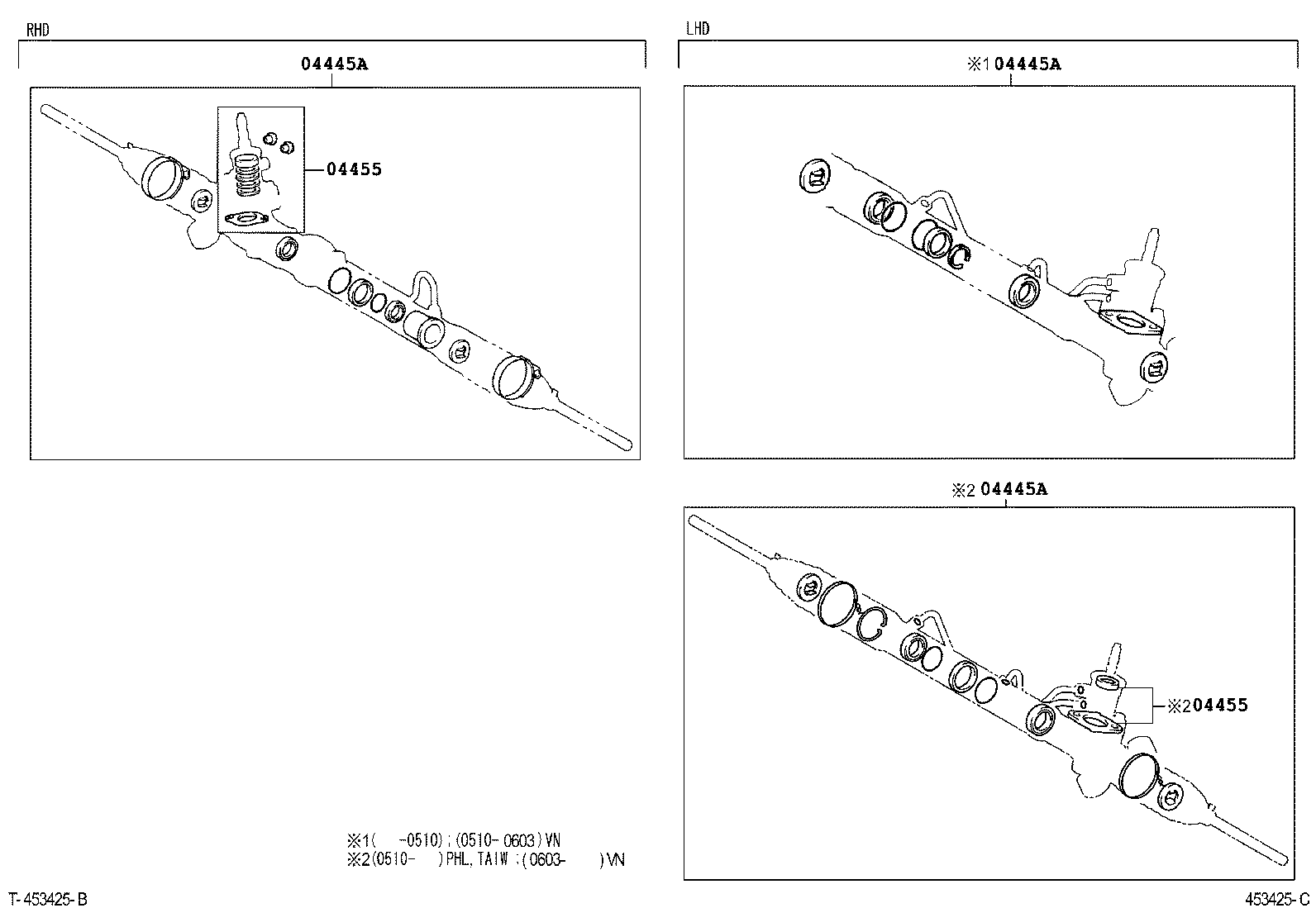

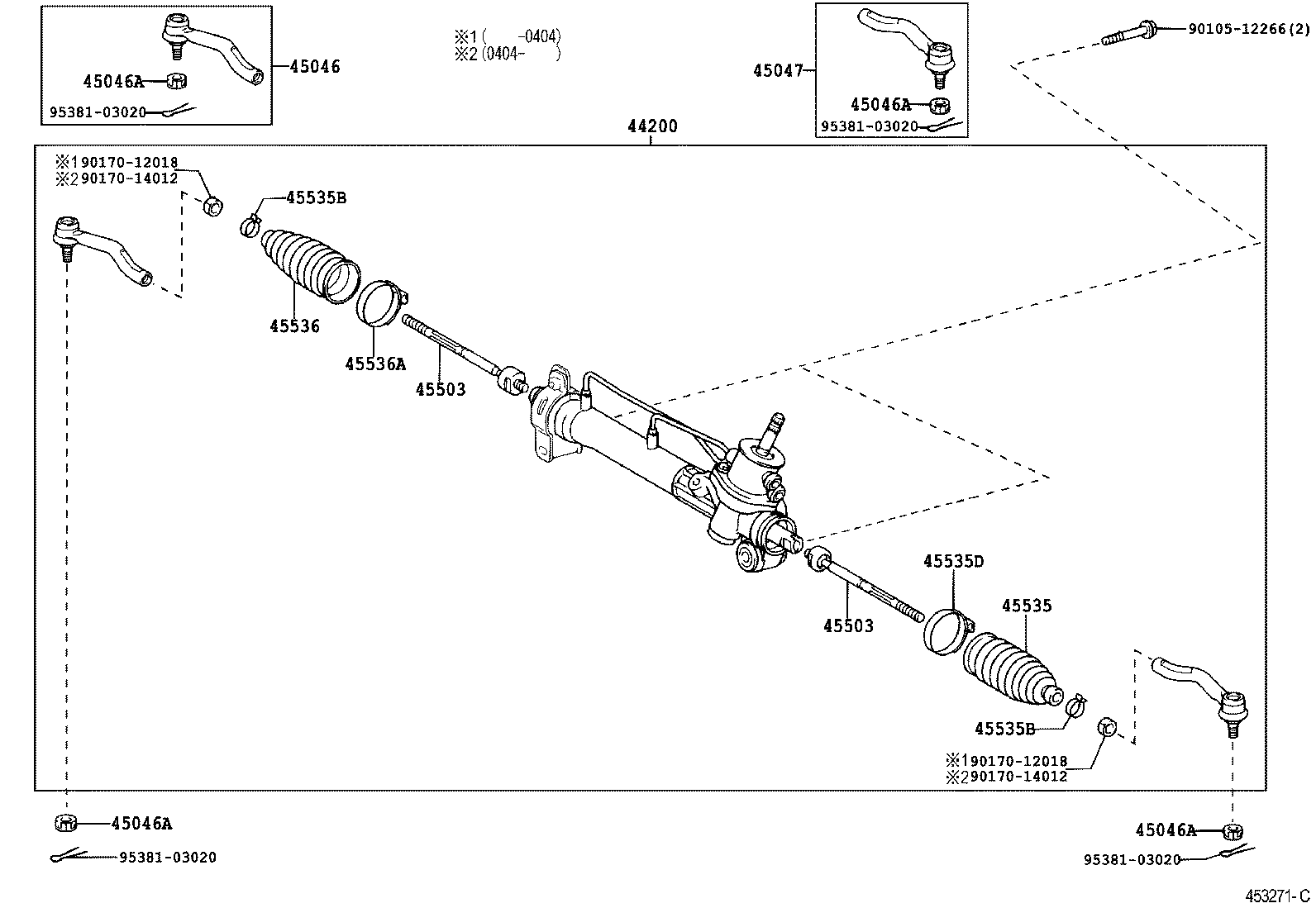

Figure 453273A 453273A 2002-10 → 2005-11 Figure 453271C 453271C 2002-10 → — Figure 453424E 453424E 2002-12 → — Figure 453494B 453494B 2003-03 → — Figure 453425C 453425C 2002-12 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44200 Link Assy, Power Steering
44243 Insulator, Power Steering Rack Housing Heat
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44275D Bush(FOR CYLINDER END STOPPER)
44523H Spring(FOR POWER STEERING RACK GUIDE)
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45510 Gear Assy, Steering
45515 Bracket, Steering Rack Housing, NO.2
45517 Grommet, Steering Rack Housing, NO.2
45524 Cap, Steering Rack Guide Spring
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
