Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01

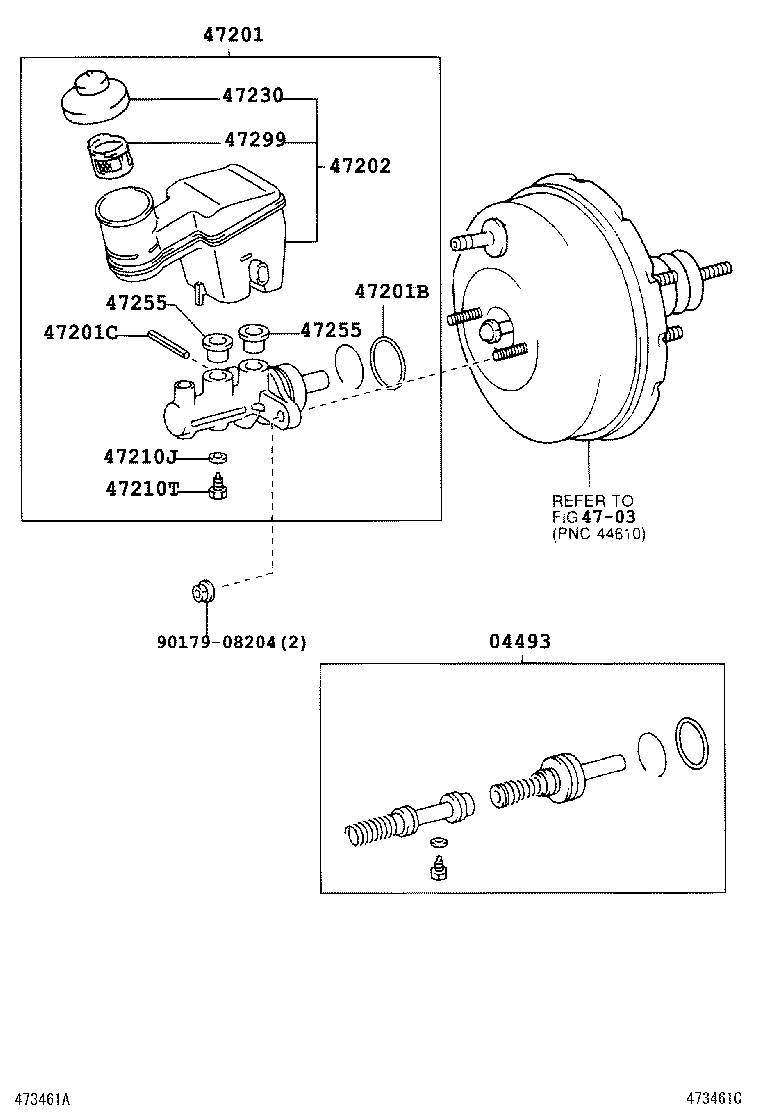

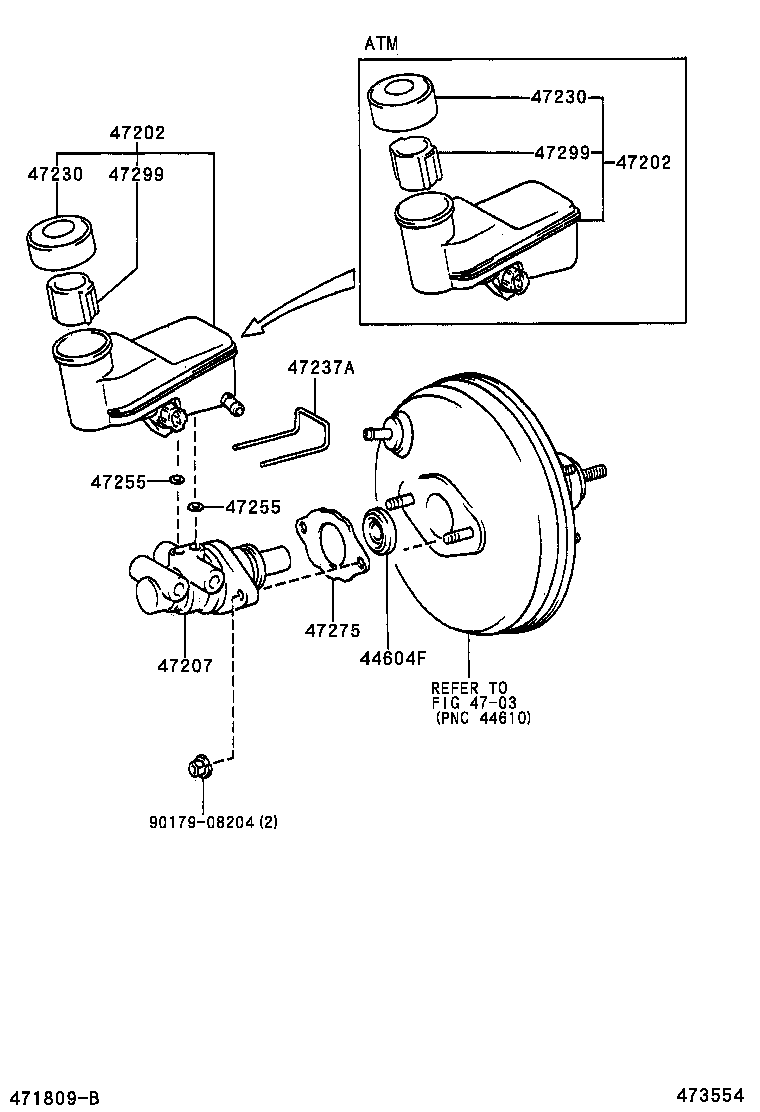

Brake Master Cylinder
16 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 44604F | Seal, Brake Booster Body |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47207 | Cylinder Sub-assy, Brake Master Less Reservoir Tank |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47237A | Stopper, Breke Master Cylinder Reservoir Tank |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47275 | Gasket, Brake Master Cylinder |
| 47287 | Label, Brake Fluid Information |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
