Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01
Brake Booster & Vacuum Tube

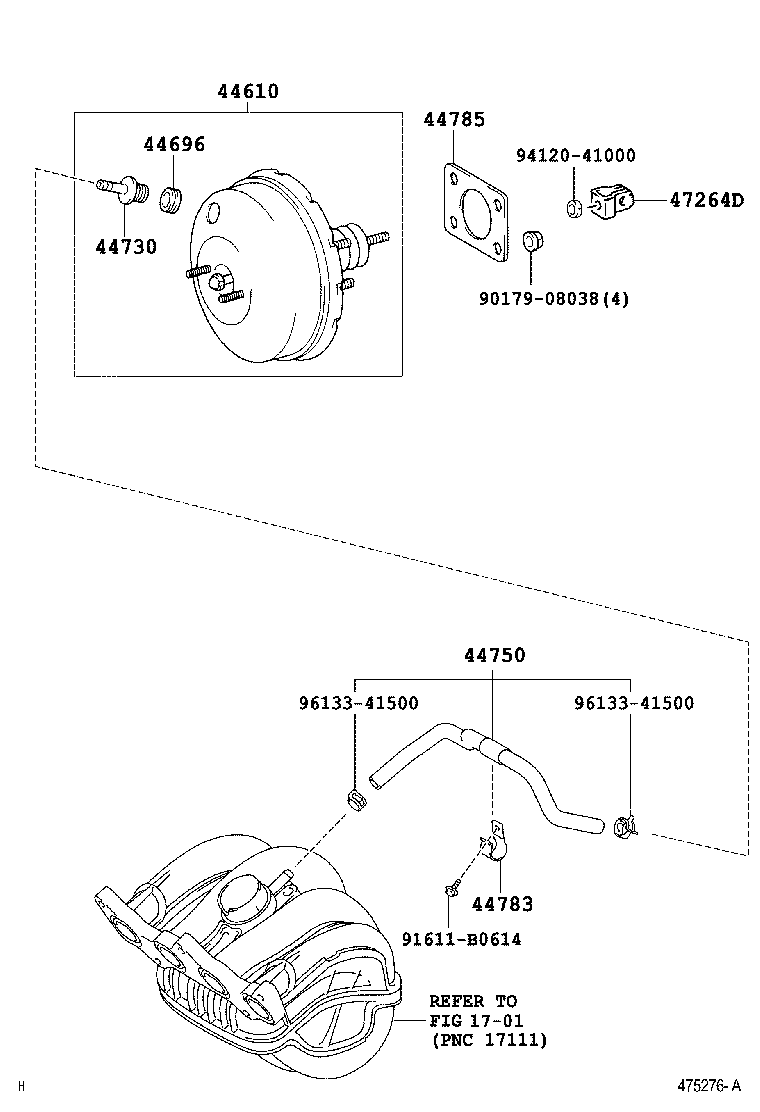

11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44750 | Hose Assy, Vacuum |
| 44763 | Tube, Booster Vacuum |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
