Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

13 part groups · 4 illustrations

Illustrations

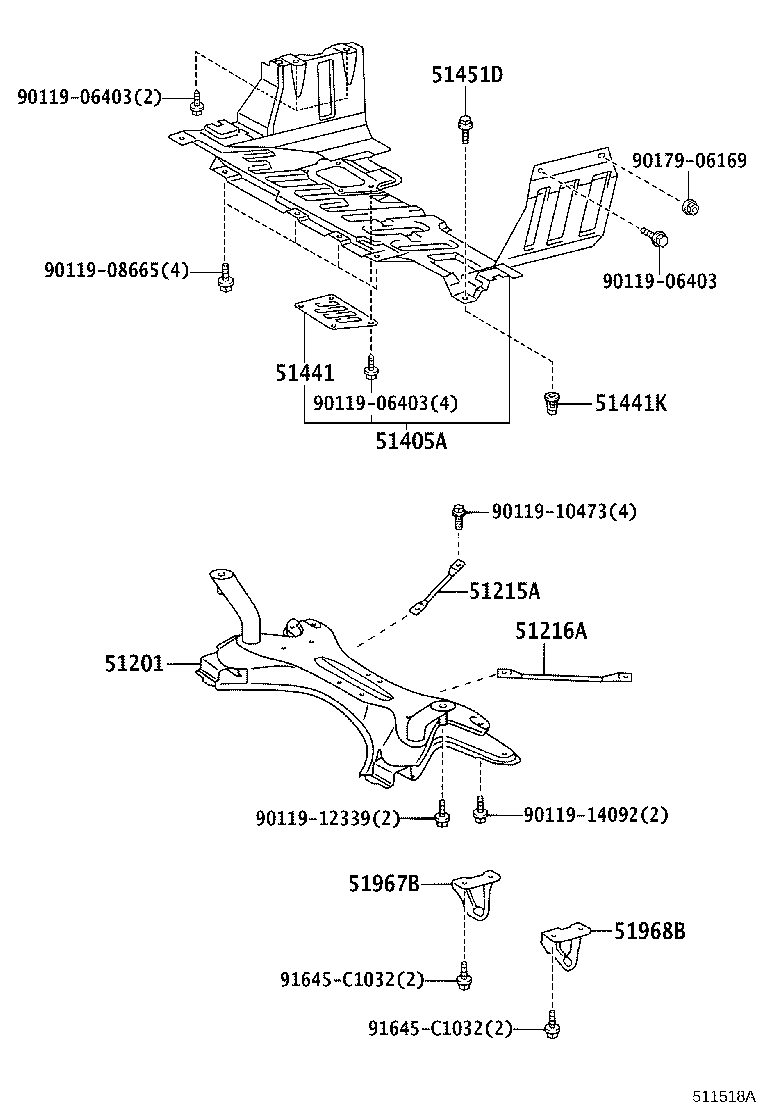

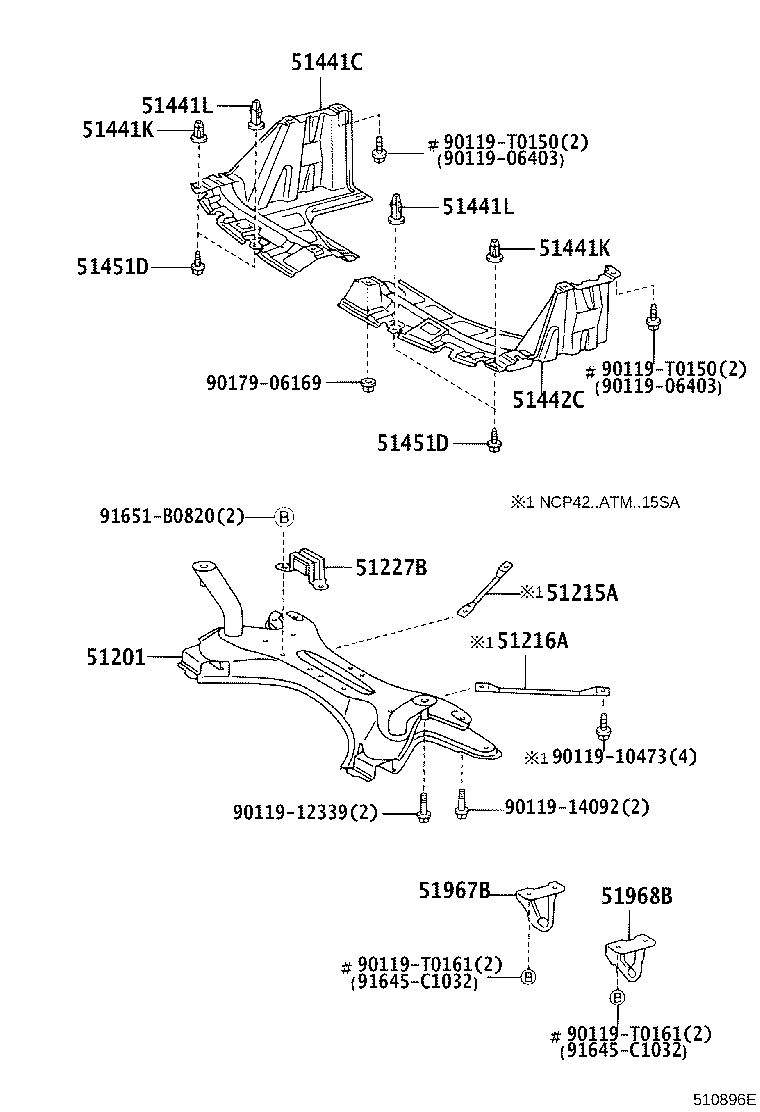

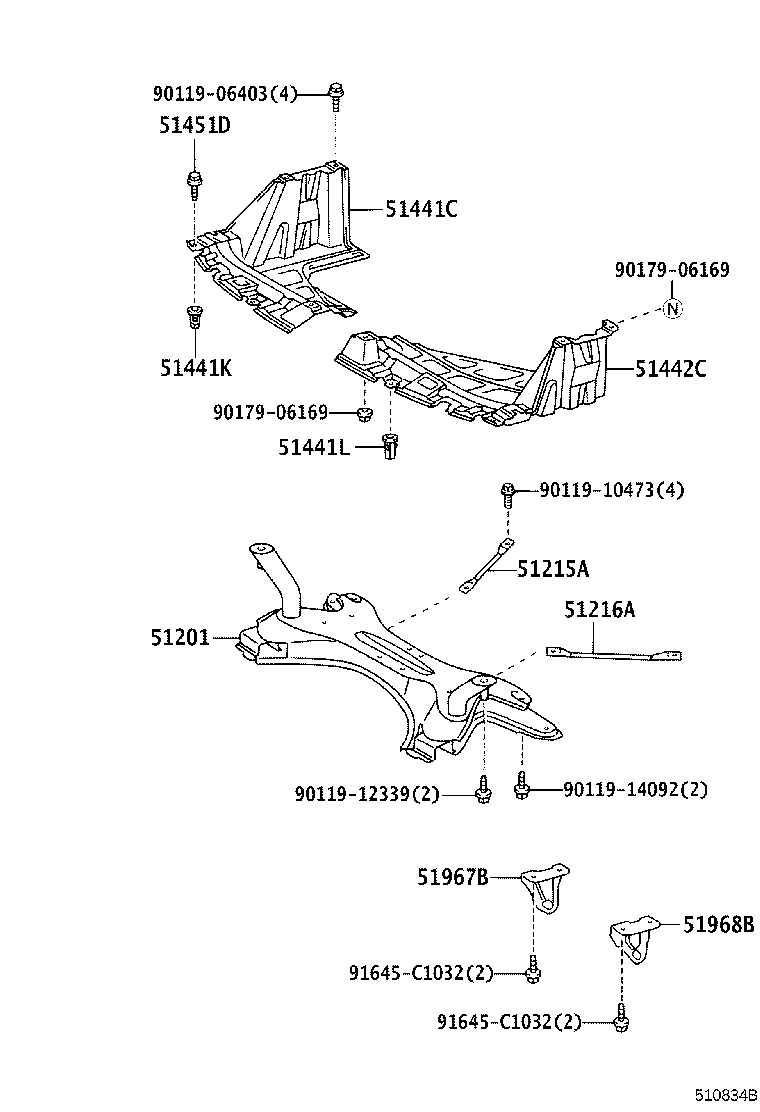

Figure 510833B 510833B 2002-10 → 2006-08 Figure 510834B 510834B 2002-10 → 2006-08 Figure 511518A 511518A 2006-08 → — Figure 510896E 510896E 2002-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51216A Reinforcement, Front Suspension Member, LH
51227B Damper, Front Suspension Member Dynamic
51405A Cover Sub-assy, Engine Under, NO.1
51441 Cover, Engine Under, NO.1
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51441L Grommet, NO.2(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
