Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 10 illustrations

Illustrations

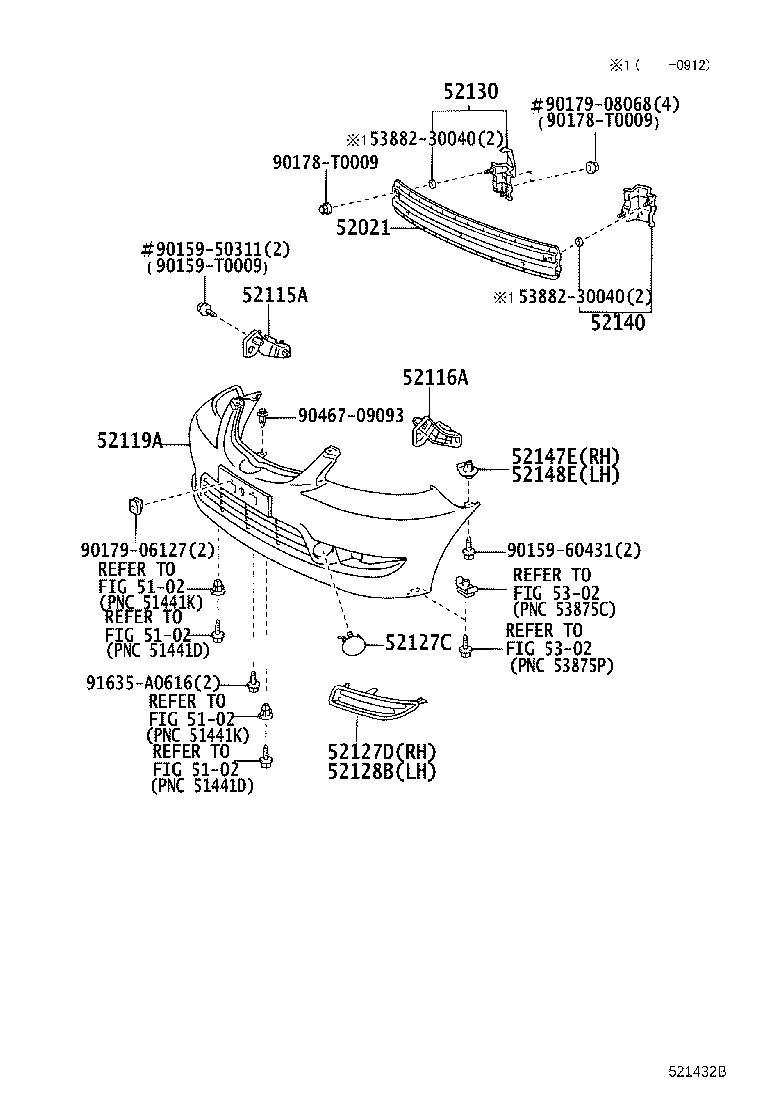

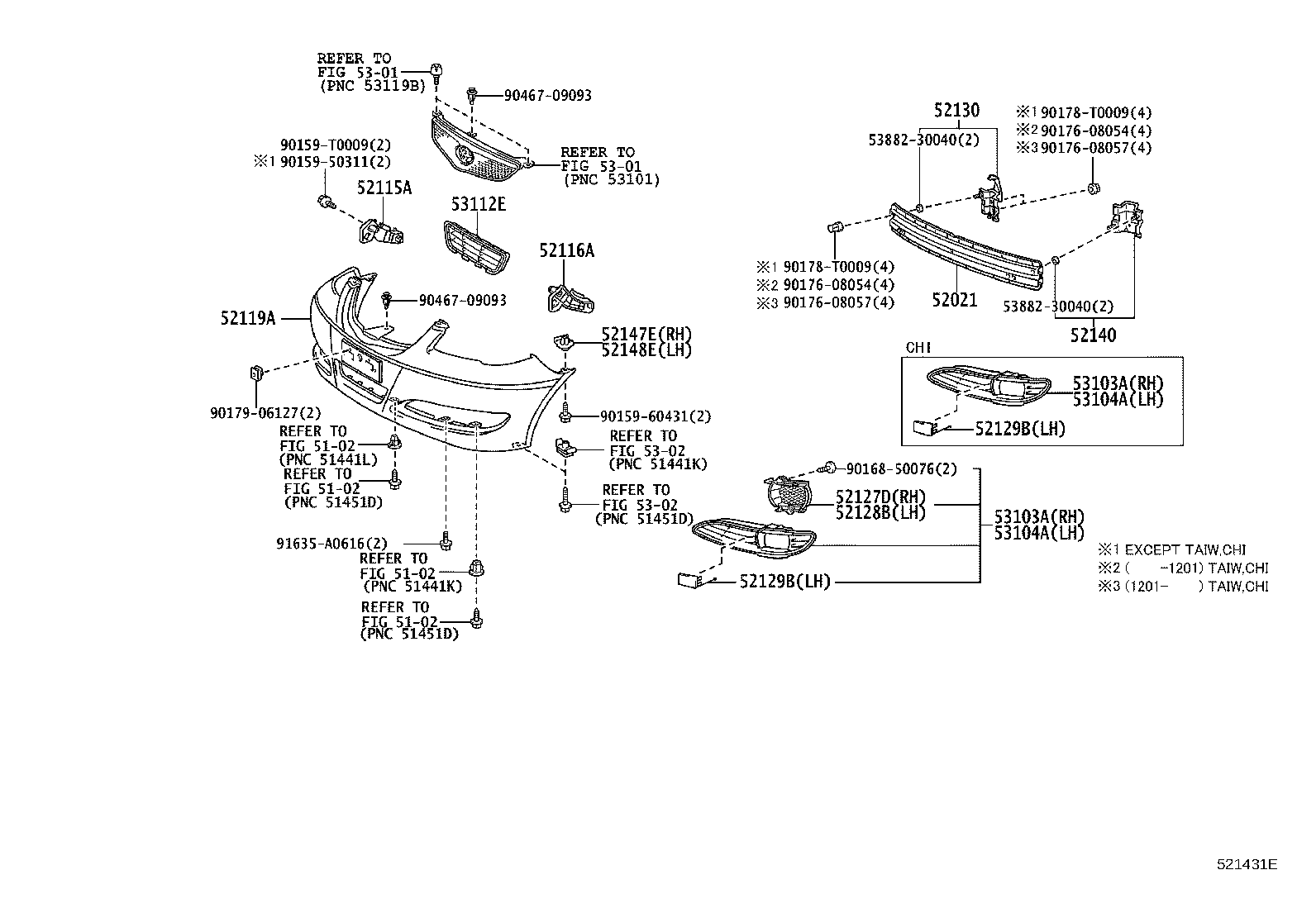

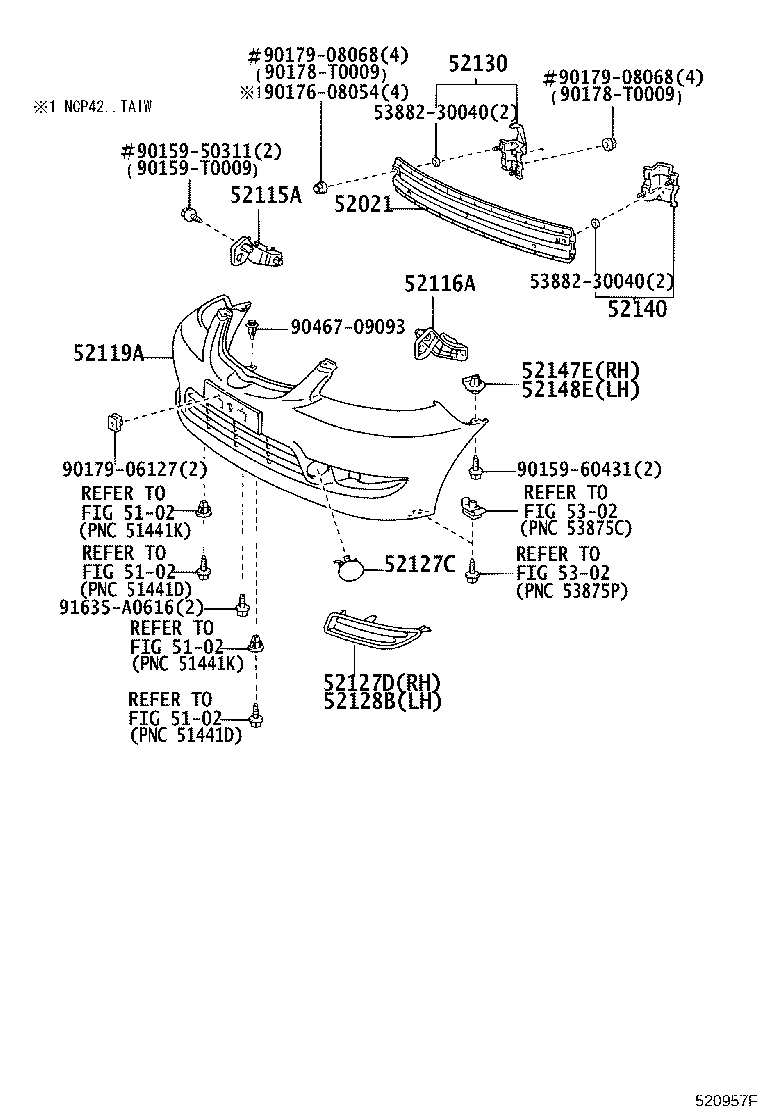

Figure 520910B 520910B 2002-10 → 2005-11 Figure 520957F 520957F 2002-12 → 2005-10 Figure 520957F 520957F 2002-12 → 2005-12 Figure 520957F 520957F 2002-12 → 2006-03 Figure 521432B 521432B 2005-10 → — Figure 521432B 521432B 2006-03 → — Figure 521431E 521431E 2005-10 → — Figure 521431E 521431E 2005-11 → — Figure 521431E 521431E 2005-12 → — Figure 521431E 521431E 2006-03 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52130 Bracket Assy, Front Bumper Side Mounting, RH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
53103A Grille Sub-assy, Radiator, Lower RH
53104A Grille Sub-assy, Radiator, Lower LH
53112E Grille, Radiator, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
