Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

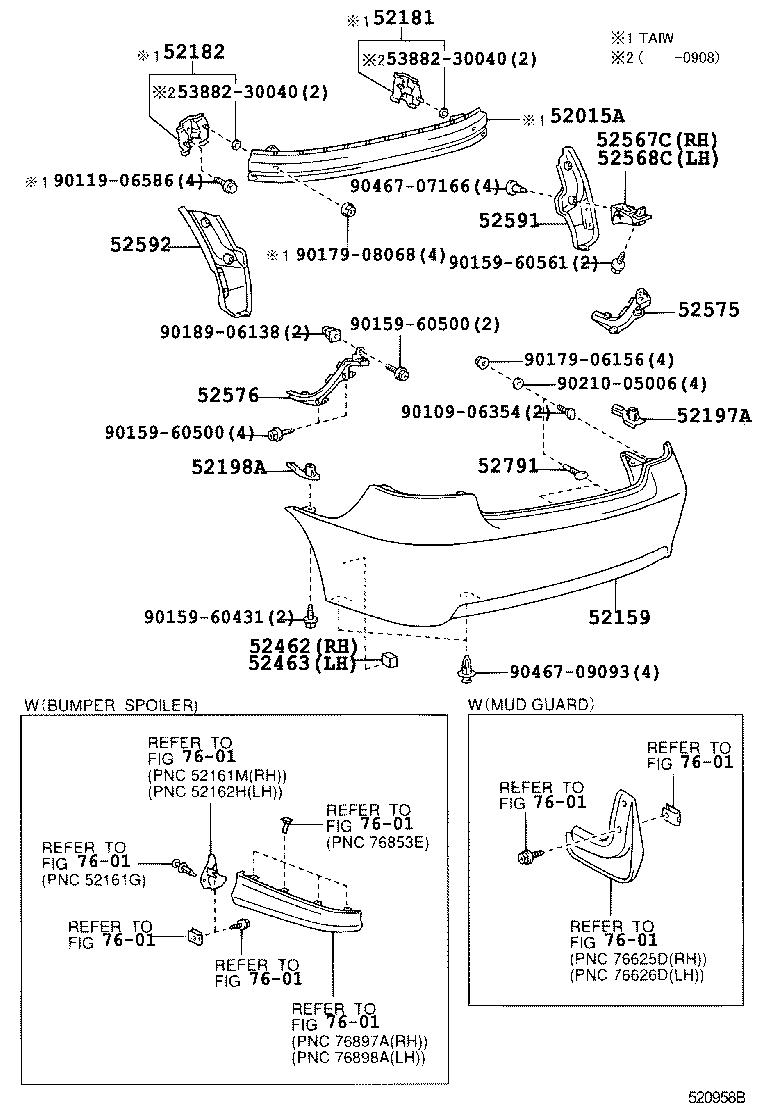

Figure 520911 520911 2002-10 → — Figure 520958B 520958B 2002-12 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52159 Cover, Rear Bumper
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52567C Retainer, Rear Bumper Lower Side, RH
52568C Retainer, Rear Bumper Lower Side, LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
