Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01
Hood & Front Fender
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

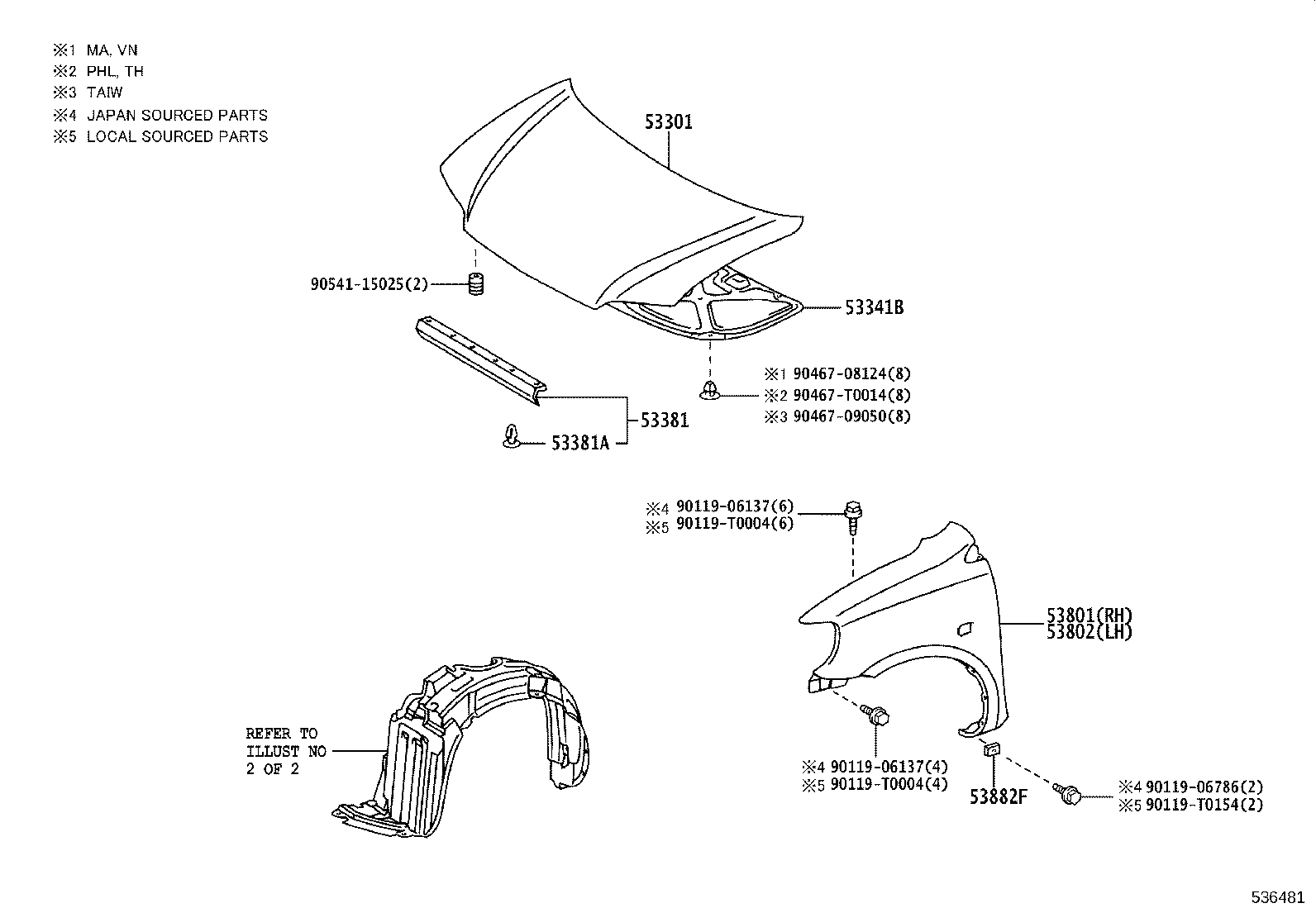

| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53851C | Pad, Front Wheel Opening Extension, NO.1 |

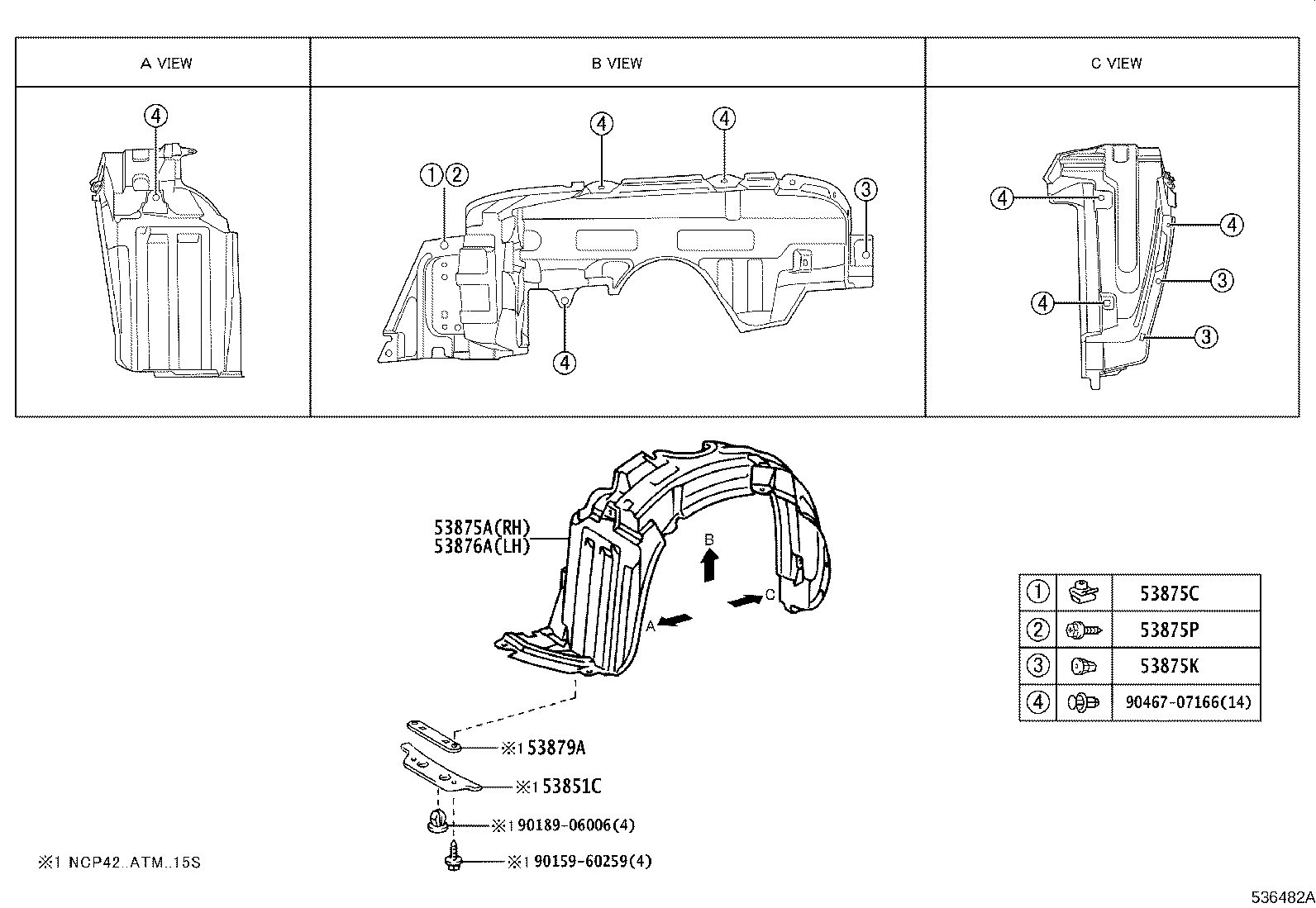

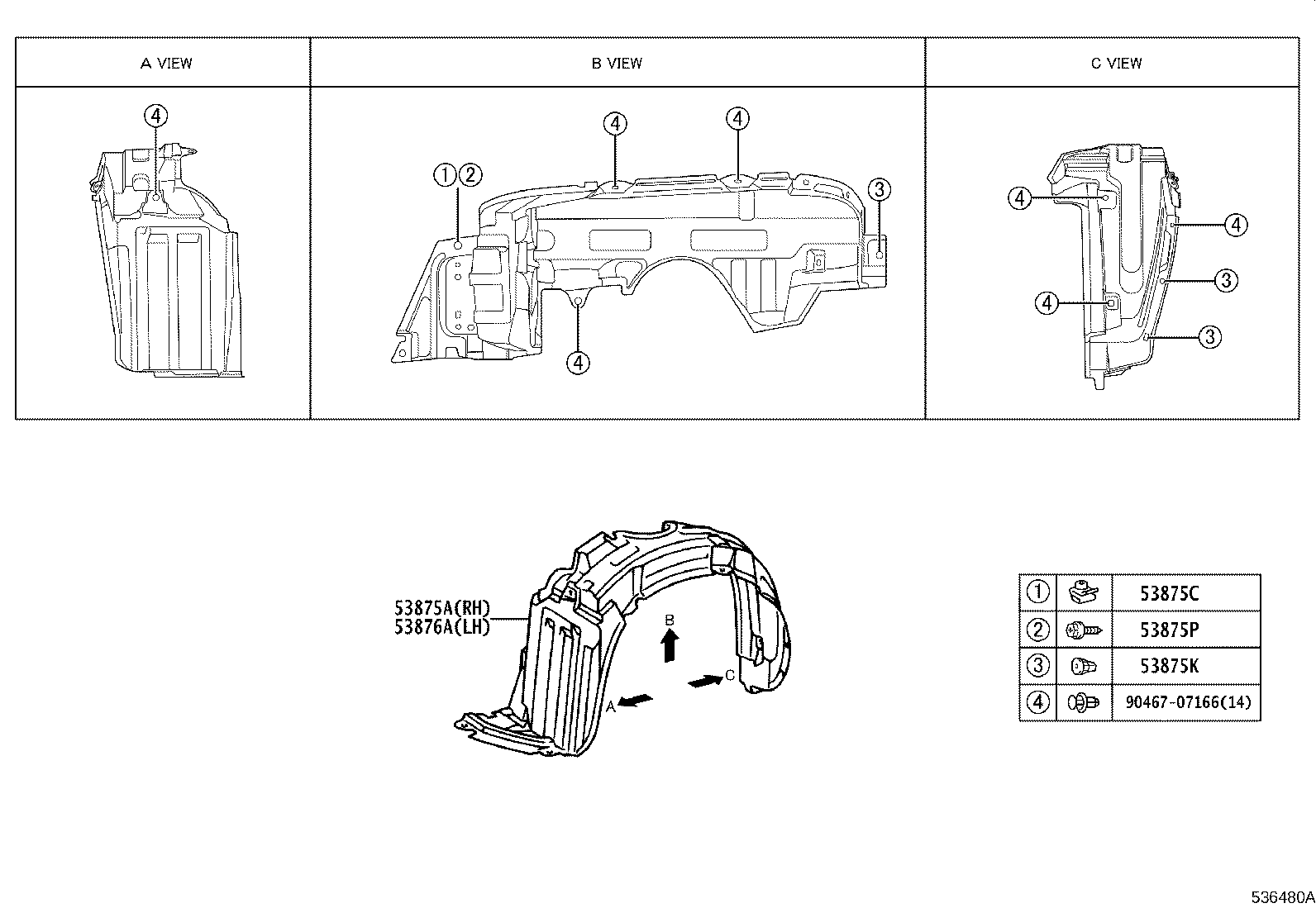

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882F | Seal, Front Fender |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
