Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

44 part groups · 7 illustrations

Illustrations

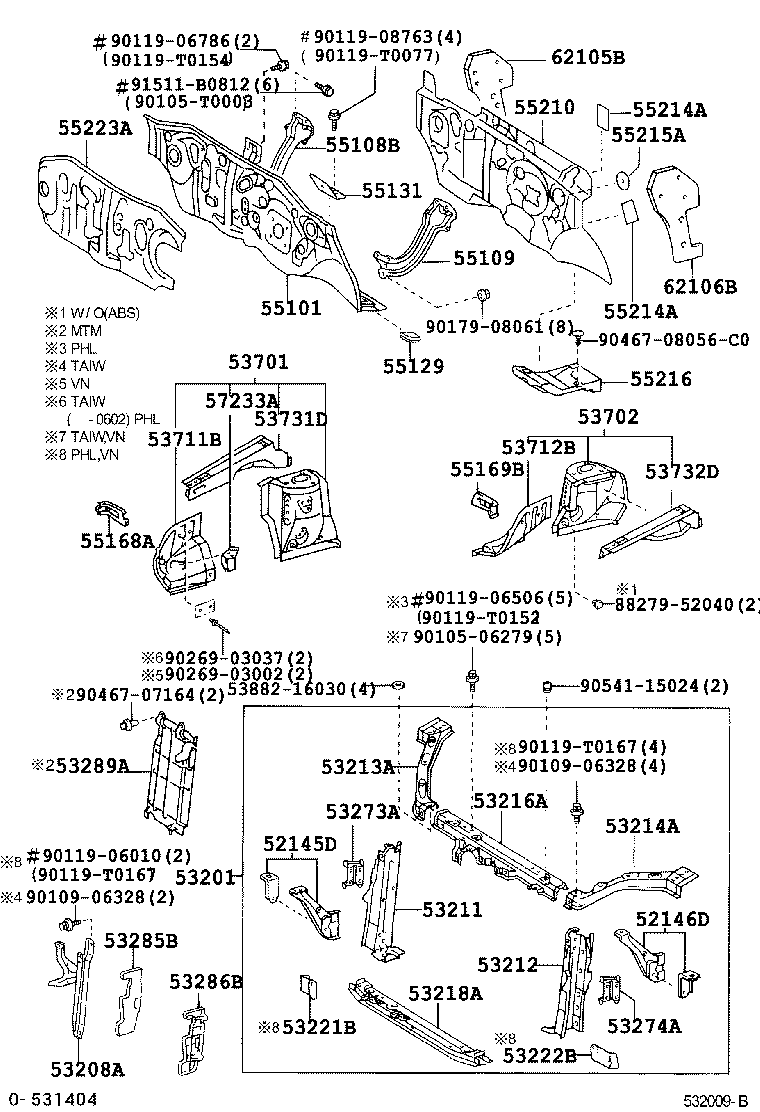

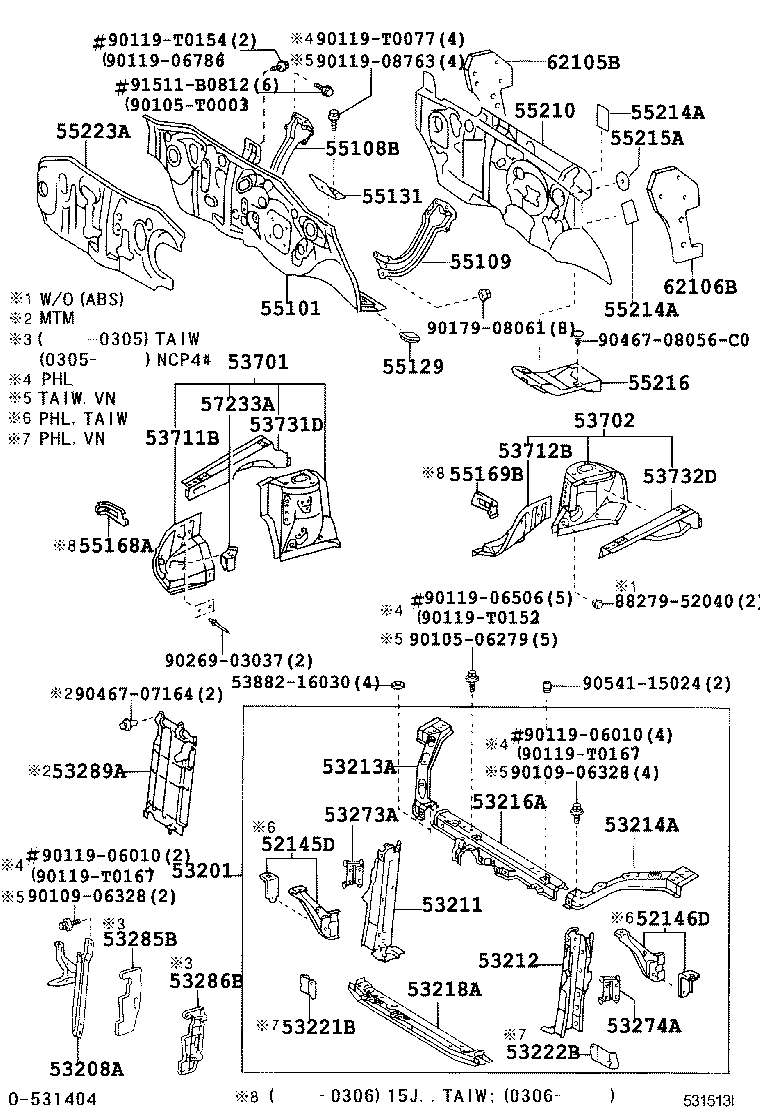

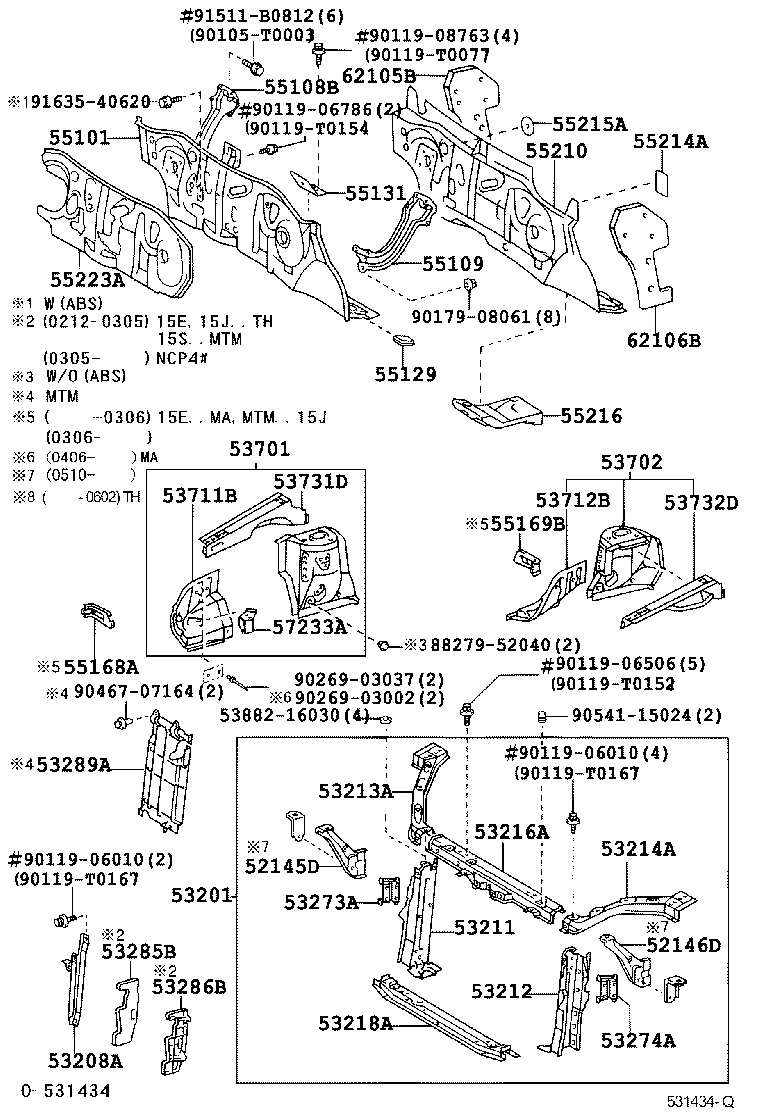

Figure 531404C 531404C 2002-10 → — Figure 531434Q 531434Q 2002-12 → — Figure 531513I 531513I 2003-03 → 2005-10 Figure 531513I 531513I 2003-07 → 2005-10 Figure 531513I 531513I 2003-07 → 2006-03 Figure 532009B 532009B 2005-10 → — Figure 532009B 532009B 2006-03 → —

Part groups

PNCDescription
52145D Bracket, Front Bumper Side Mounting, RH
52146D Bracket, Front Bumper Side Mounting, LH
52149A Bracket, Front Bumper, Inner RH
52149B Bracket, Front Bumper, Inner LH
53201 Support Sub-assy, Radiator
53208A Support Sub-assy, Hood Lock
53211 Support, Radiator, RH
53212 Support, Radiator, LH
53213A Support, Radiator, Upper RH
53214A Support, Radiator, Upper LH
53216A Support, Radiator, Upper
53218A Support, Radiator, Lower
53221B Brace, Radiator Support Apron, RH
53222B Brace, Radiator Support Apron, LH
53273A Reinforcement, Radiator Support, RH
53274A Reinforcement, Radiator Support, LH
53285B Seal, Radiator Side Air, NO.1
53286B Seal, Radiator Side Air, NO.2
53289A Cover, Radiator Support Opening
53291C Seal, Radiator Support TO Frame
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53731D Member, Front Apron TO Cowl Side, Upper RH
53732D Member, Front Apron TO Cowl Side, Upper LH
53773C Bracket, Air Cleaner Mounting
53774B Bracket, Air Cleaner Mounting, NO.2
55101 Panel Sub-assy, Dash
55108B Brace Sub-assy, Dash TO Frame, RH
55109 Brace Sub-assy, Dash TO Frame, LH
55129 Cover, Dash Panel Hole
55131 Reinforcement, Dash Panel
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55214A Pad, Dash Panel Insulator, NO.2
55215A Pad, Dash Panel Insulator, NO.3
55216 Pad, Dash Panel Insulator, NO.4
55223A Insulator, Dash Panel, Outer
57233A Retainer, Engine Front Support, RH
62105B Insulator Sub-assy, Cowl Side, RH
62106B Insulator Sub-assy, Cowl Side, LH
75391A Retainer, Name Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
