Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

43 part groups · 16 illustrations

Illustrations

551034F 2002-10 → 2006-08

551034F 2006-08 → —

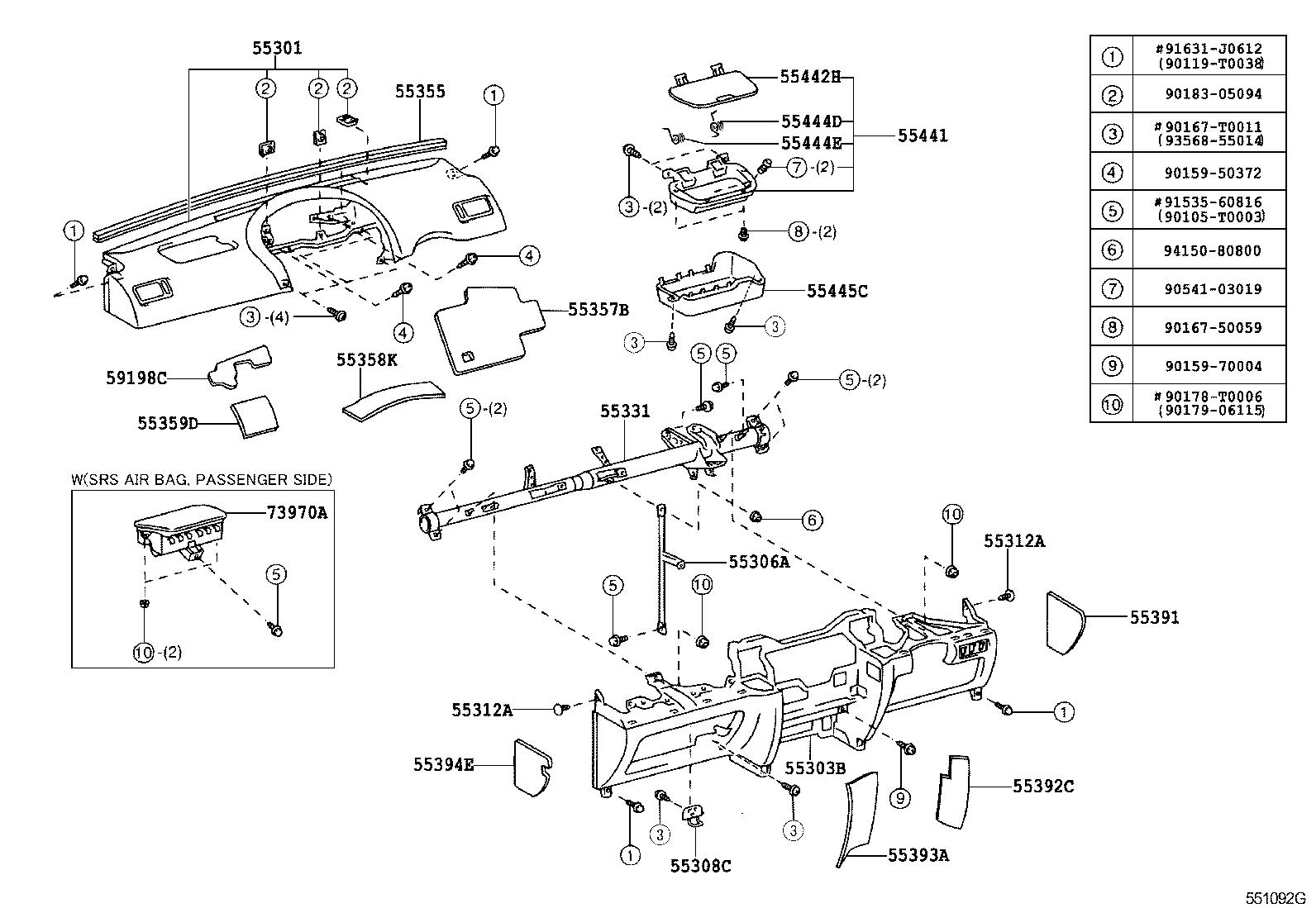

551092G 2002-12 → —

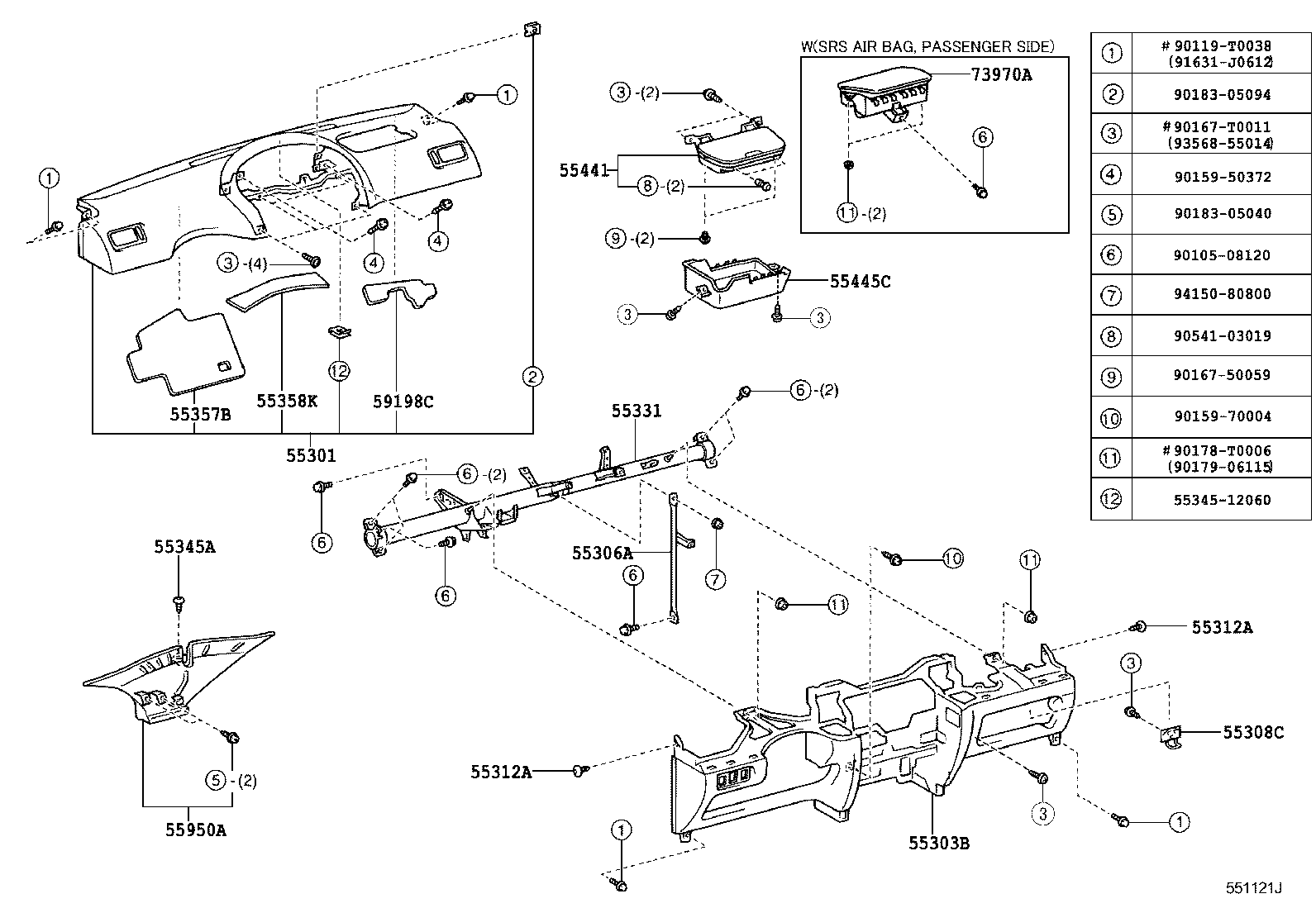

551121J 2003-03 → —

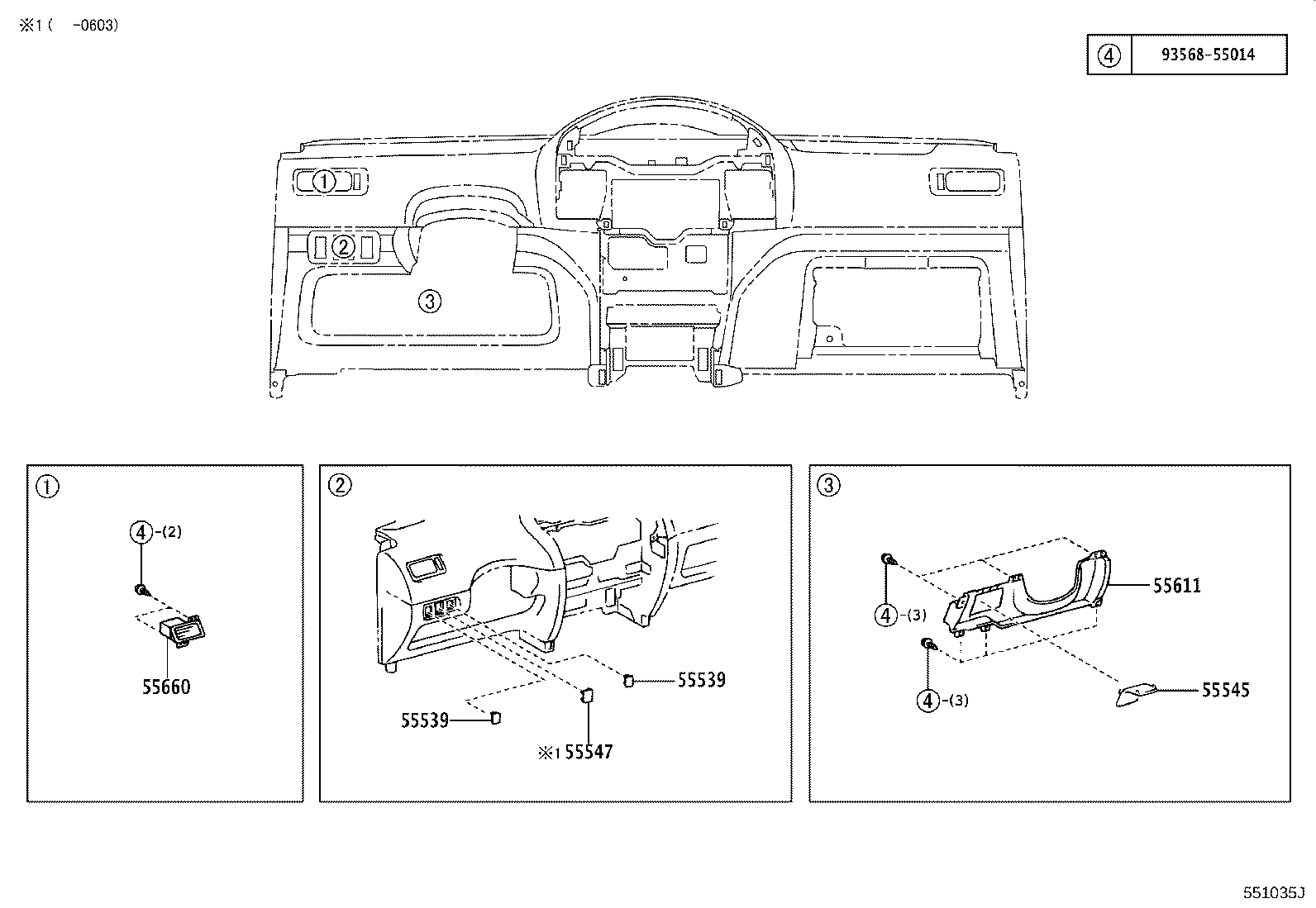

551035J 2002-10 → 2006-08

551035J 2006-08 → —

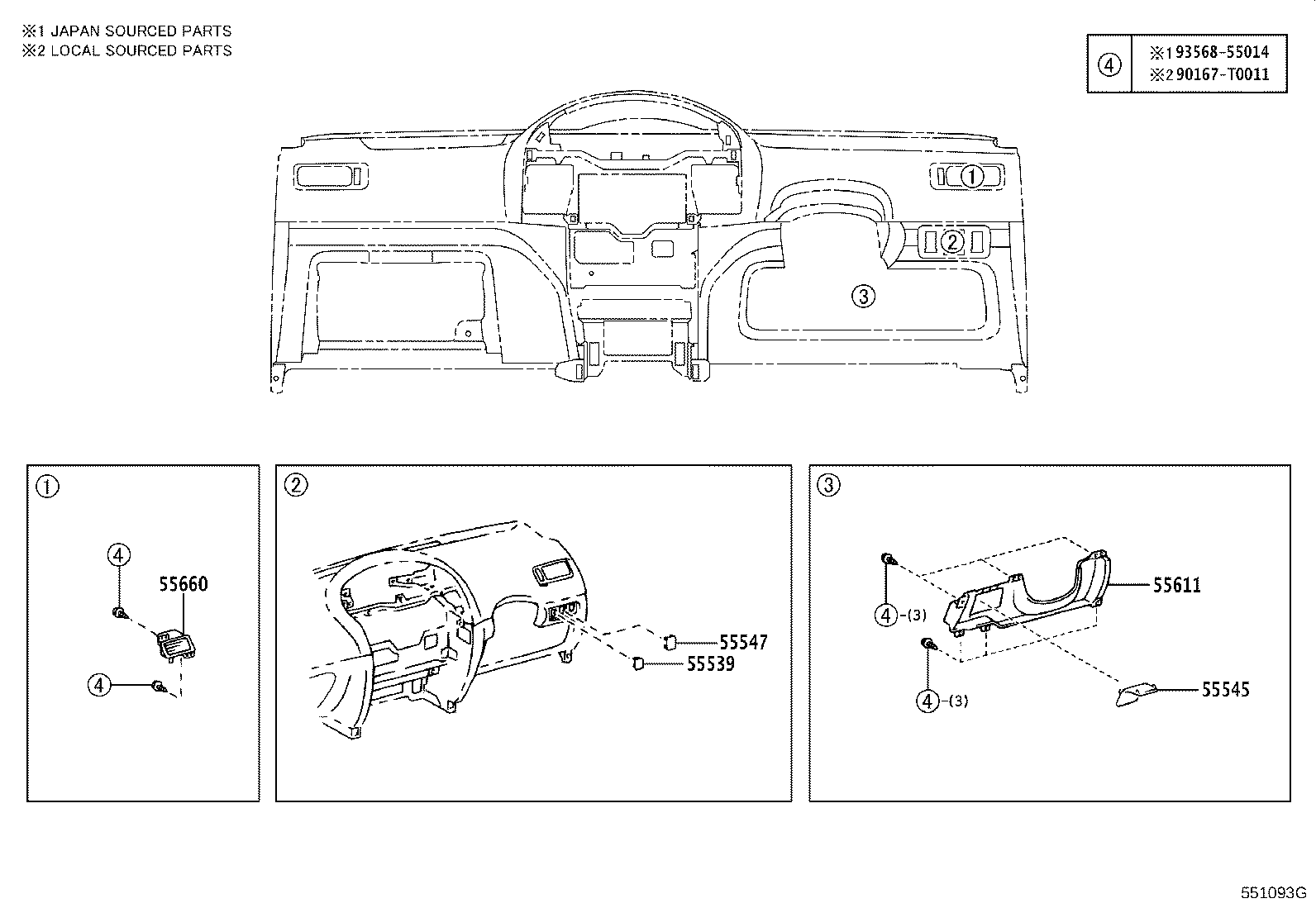

551093G 2002-12 → —

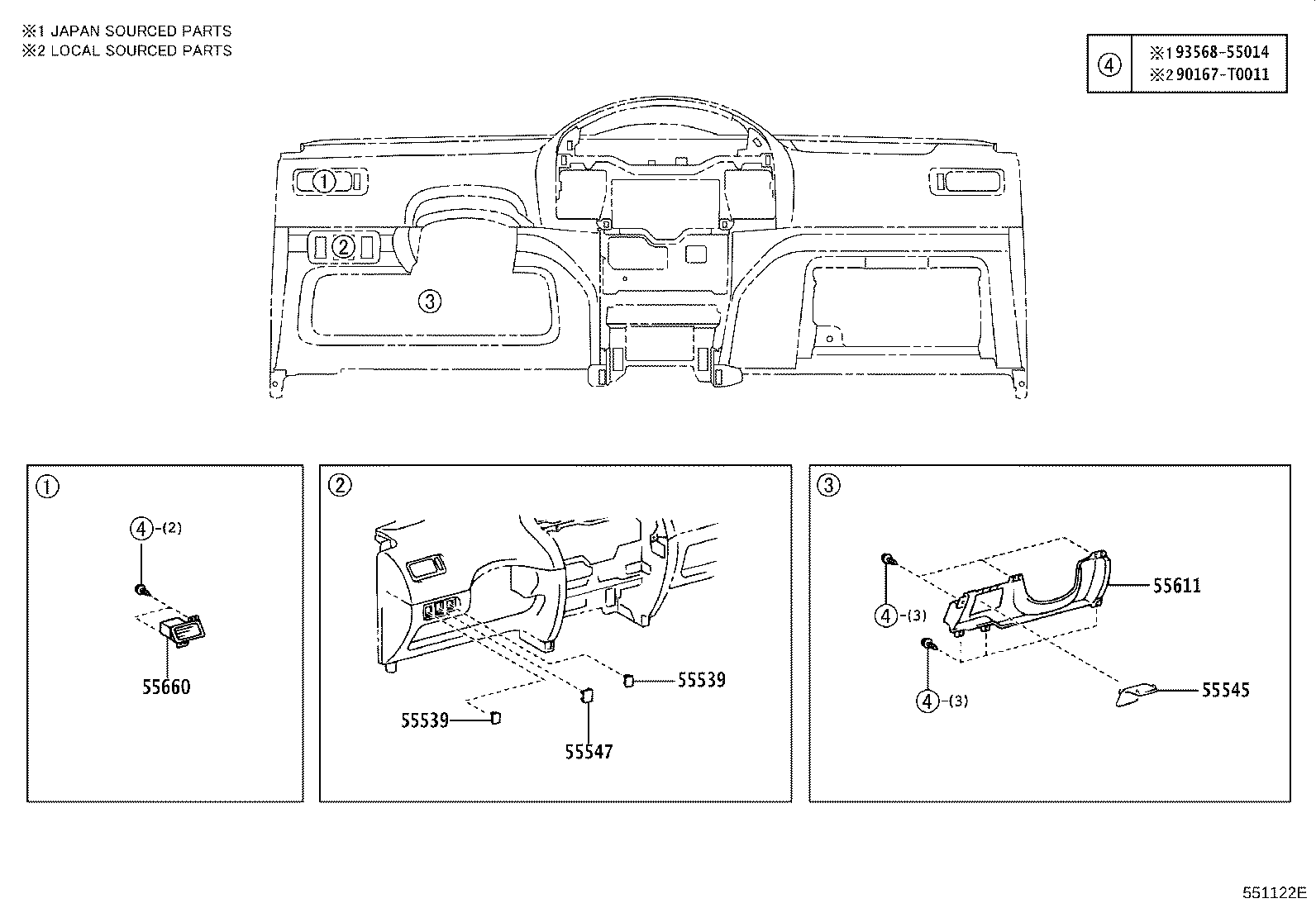

551122E 2003-03 → —

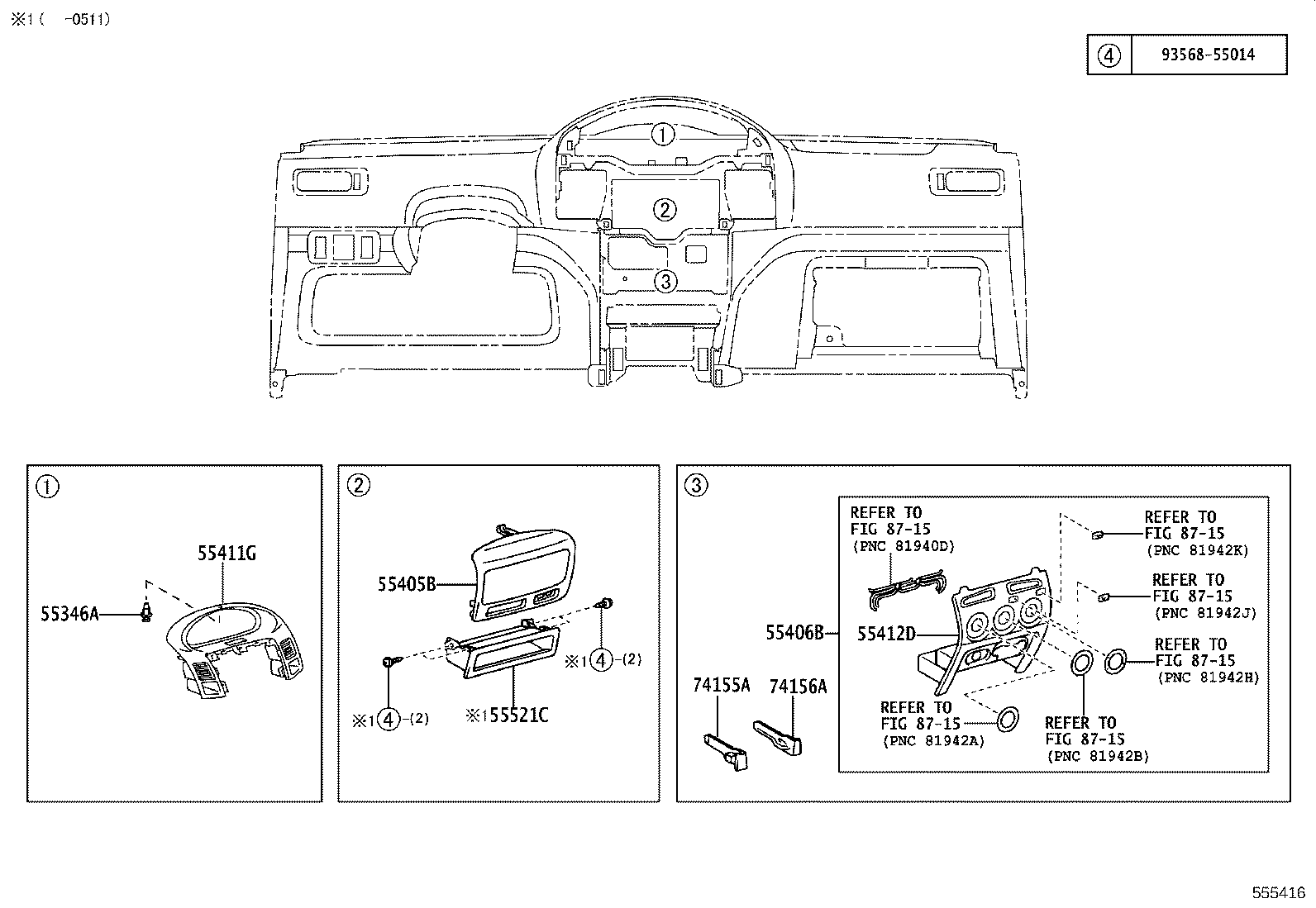

555416 2002-10 → 2006-08

555416 2006-08 → —

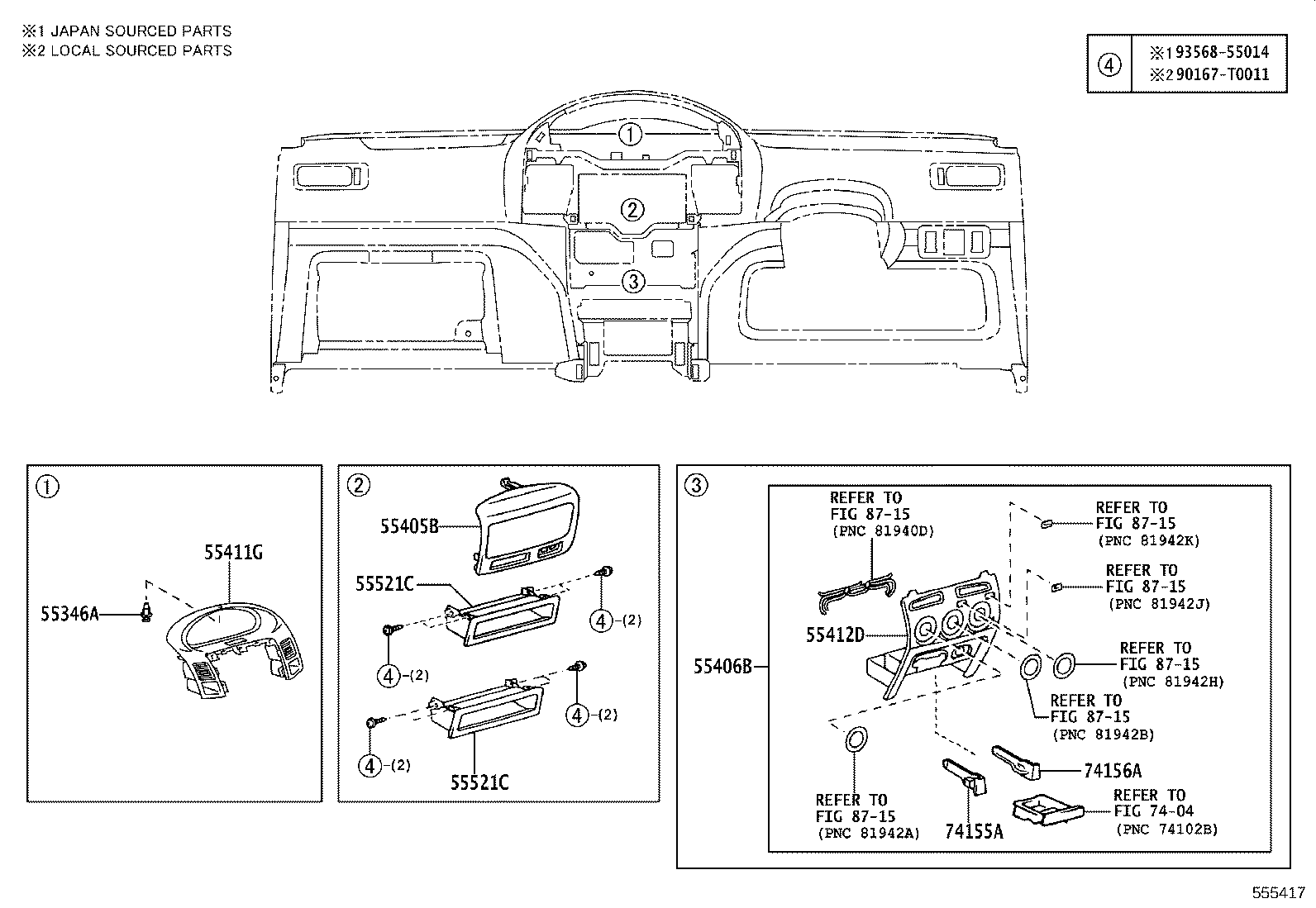

555417 2002-12 → —

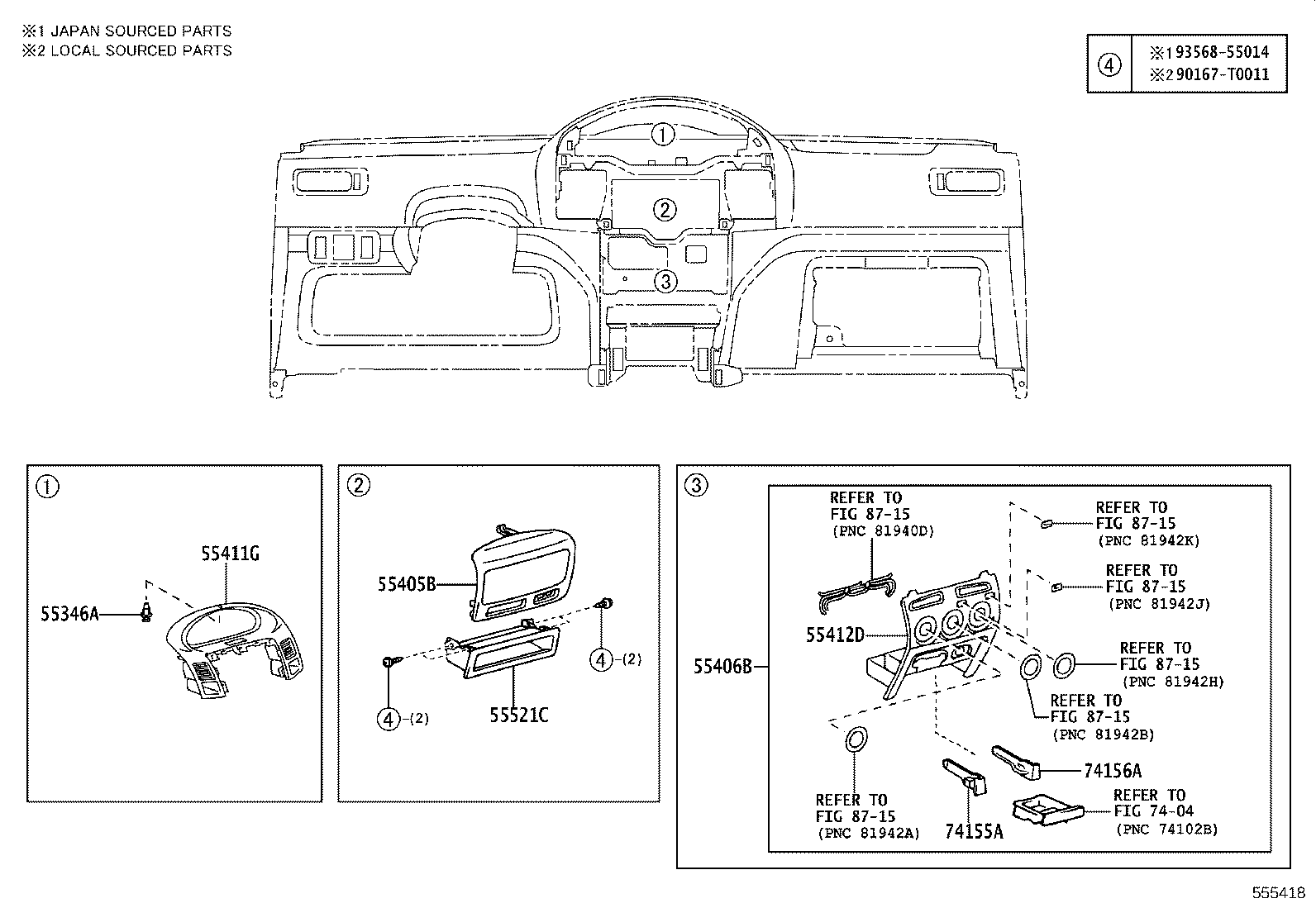

555418 2003-03 → —

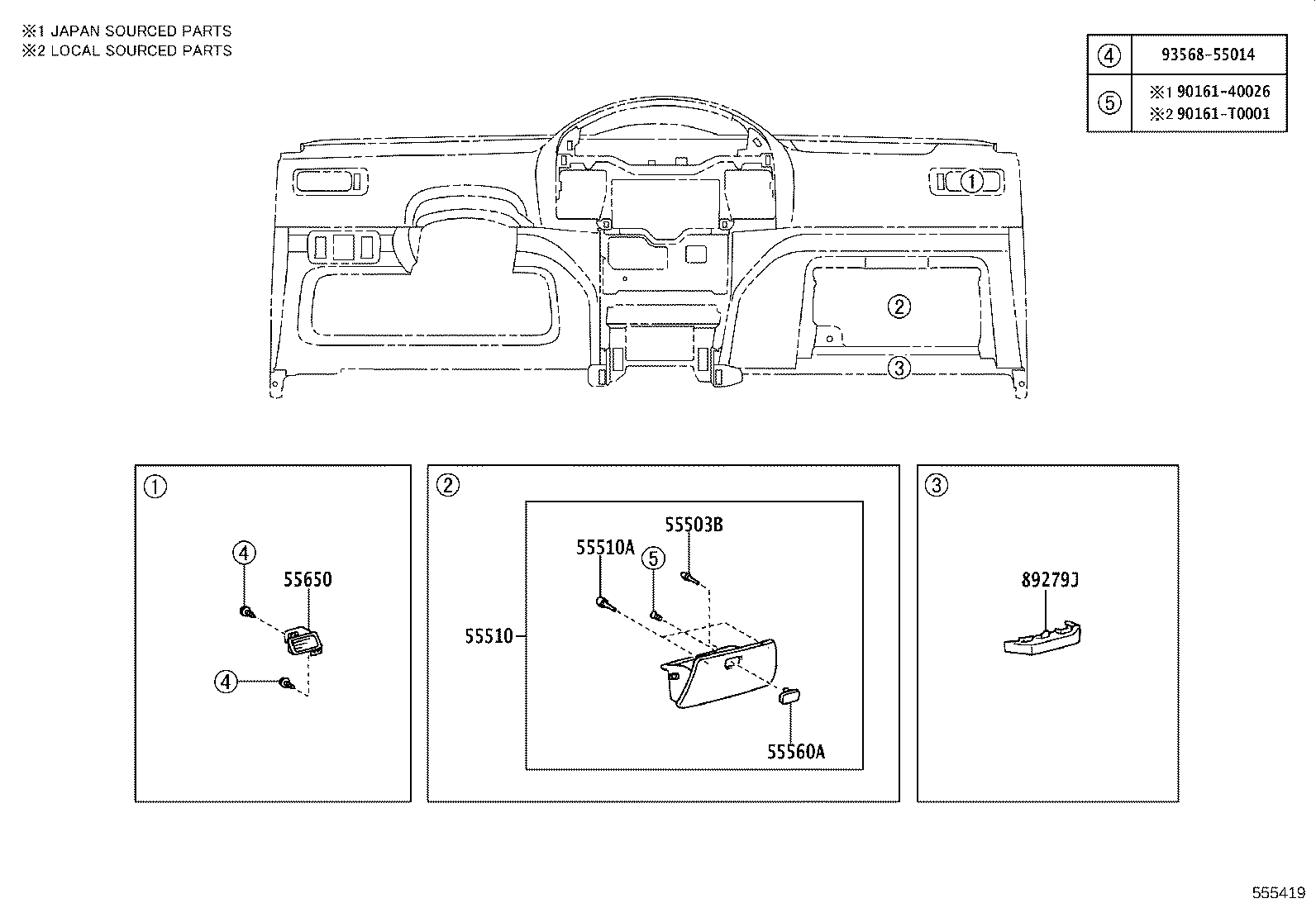

555419 2002-10 → 2006-08

555419 2006-08 → —

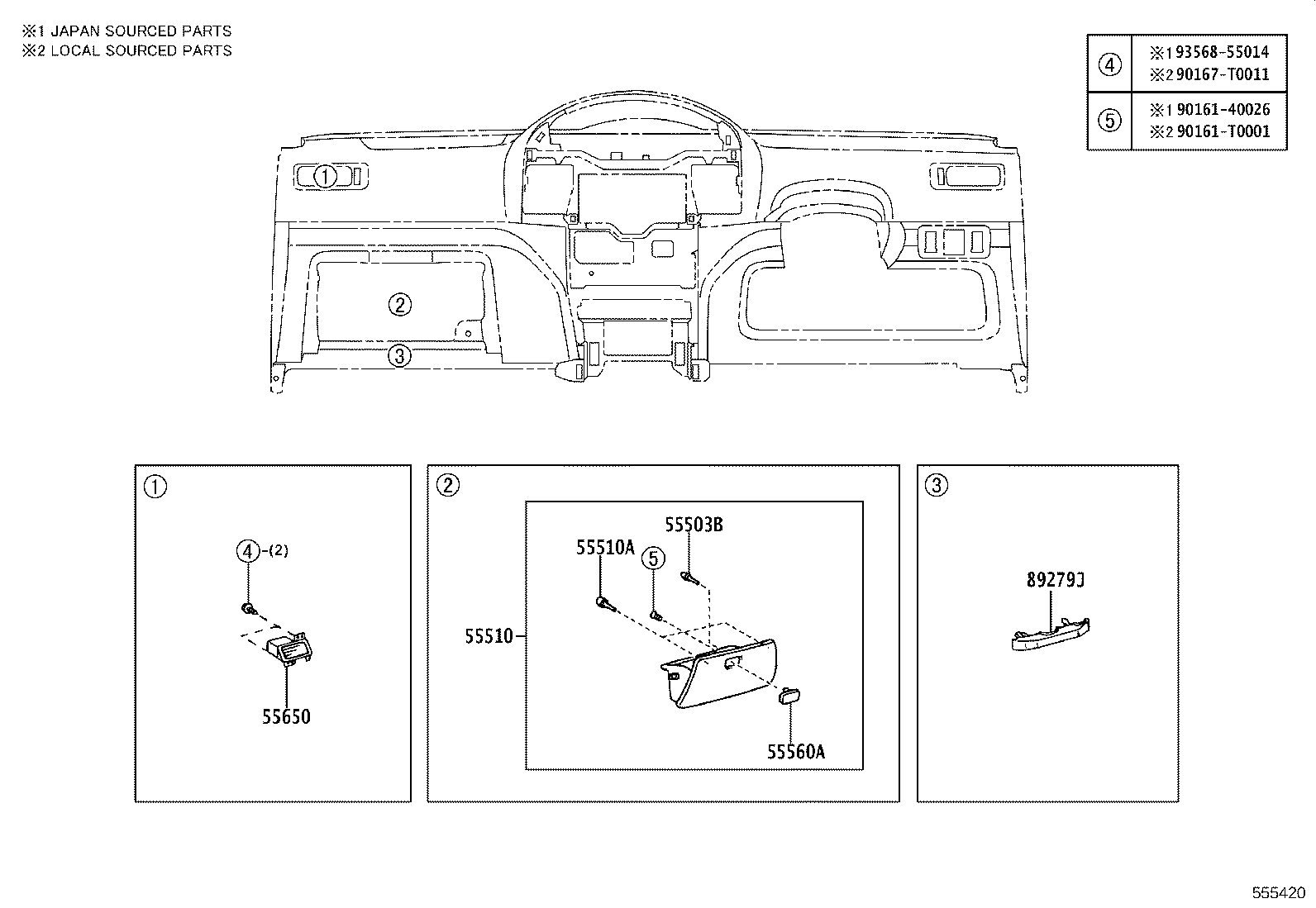

555420 2002-12 → —

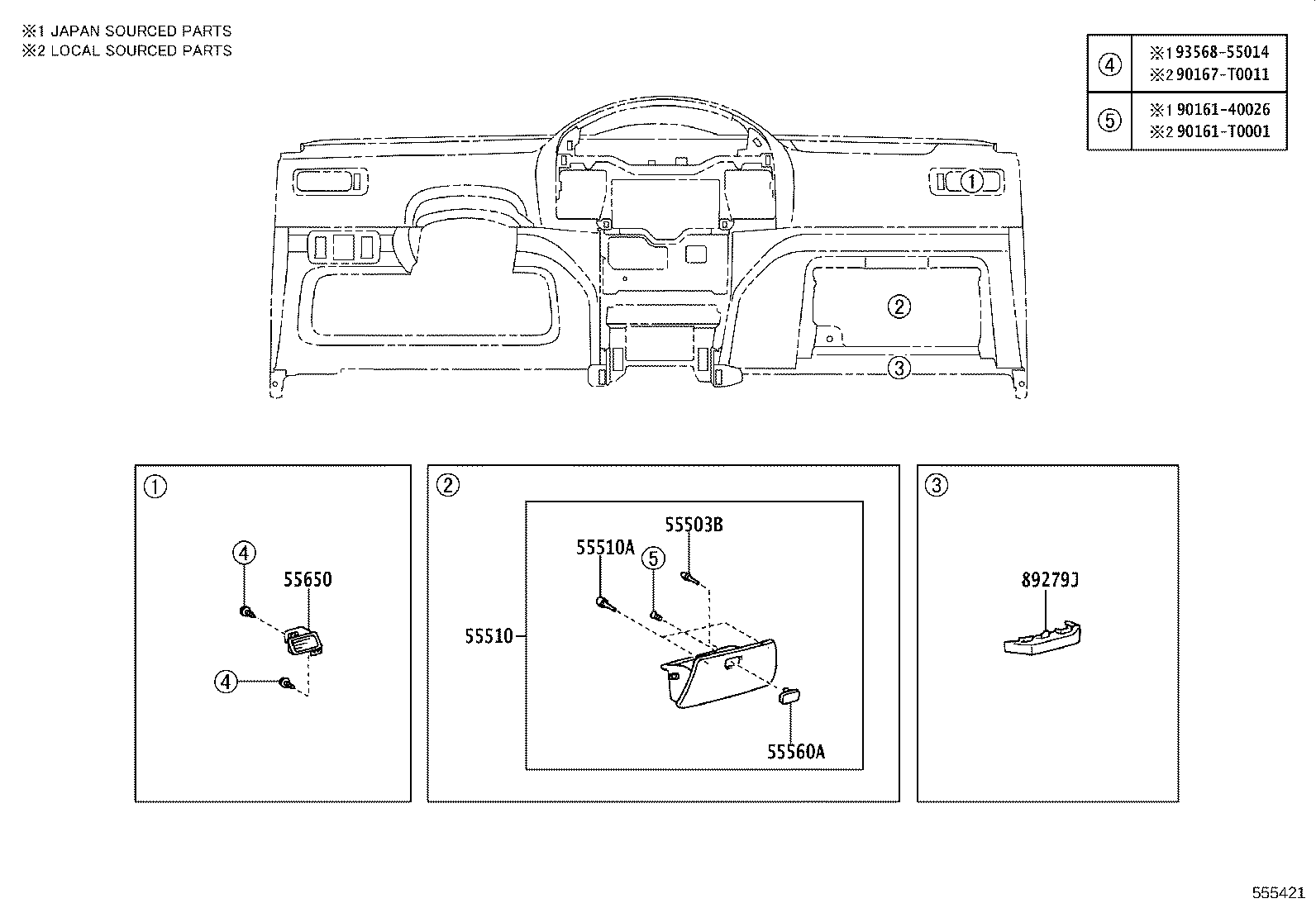

555421 2003-03 → —

Part groups

PNC	Description
55301	Panel Sub-assy, Instrument
55303B	Panel Sub-assy, Instrument, Lower
55306A	Brace Sub-assy, Instrument Panel, NO.1
55308C	Bracket Sub-assy, Instrument Panel, Center
55312A	Clip, Instrument Panel
55331	Reinforcement, Instrument Panel
55345A	Clip, Instrument Panel, NO.1
55346A	Clip, Instrument Panel, NO.2
55355	Cushion, Instrument Panel, NO.1
55356C	Cushion, Instrument Panel, NO.2
55357B	Cushion, Instrument Panel, NO.3
55358K	Cushion, Instrument Panel, NO.4
55359D	Cushion, Instrument Panel, NO.5
55391	Cushion, Instrument Panel, Lower NO.1
55392C	Cushion, Instrument Panel, Lower NO.2
55393A	Cushion, Instrument Panel, Lower NO.3
55394E	Cushion, Instrument Panel, Lower NO.4
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55441	Box, Instrument Panel
55442H	Door, Instrument Panel
55444D	Pin, Instrument Panel Box Door, NO.1
55444E	Pin, Instrument Panel Box Door, NO.2
55445C	Plate, Instrument Panel Box
55503B	Cushion(FOR GLOVE COMPARTMENT)
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C	Cover, Stereo Opening
55539	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55547	Cover, Remote Control Mirror Hole
55560A	Lock Assy, Glove Compartment Door
55611	Tray, Instrument Panel Under
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55950A	Nozzle Assy, Defroster
59198C	Seal, Noise Shutter
73970A	Airbag Assy, Instrument Panel Passenger
74155A	Rail, Front Ash Receptacle Guide, NO.1
74156A	Rail, Front Ash Receptacle Guide, NO.2
89279J	Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
