Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01

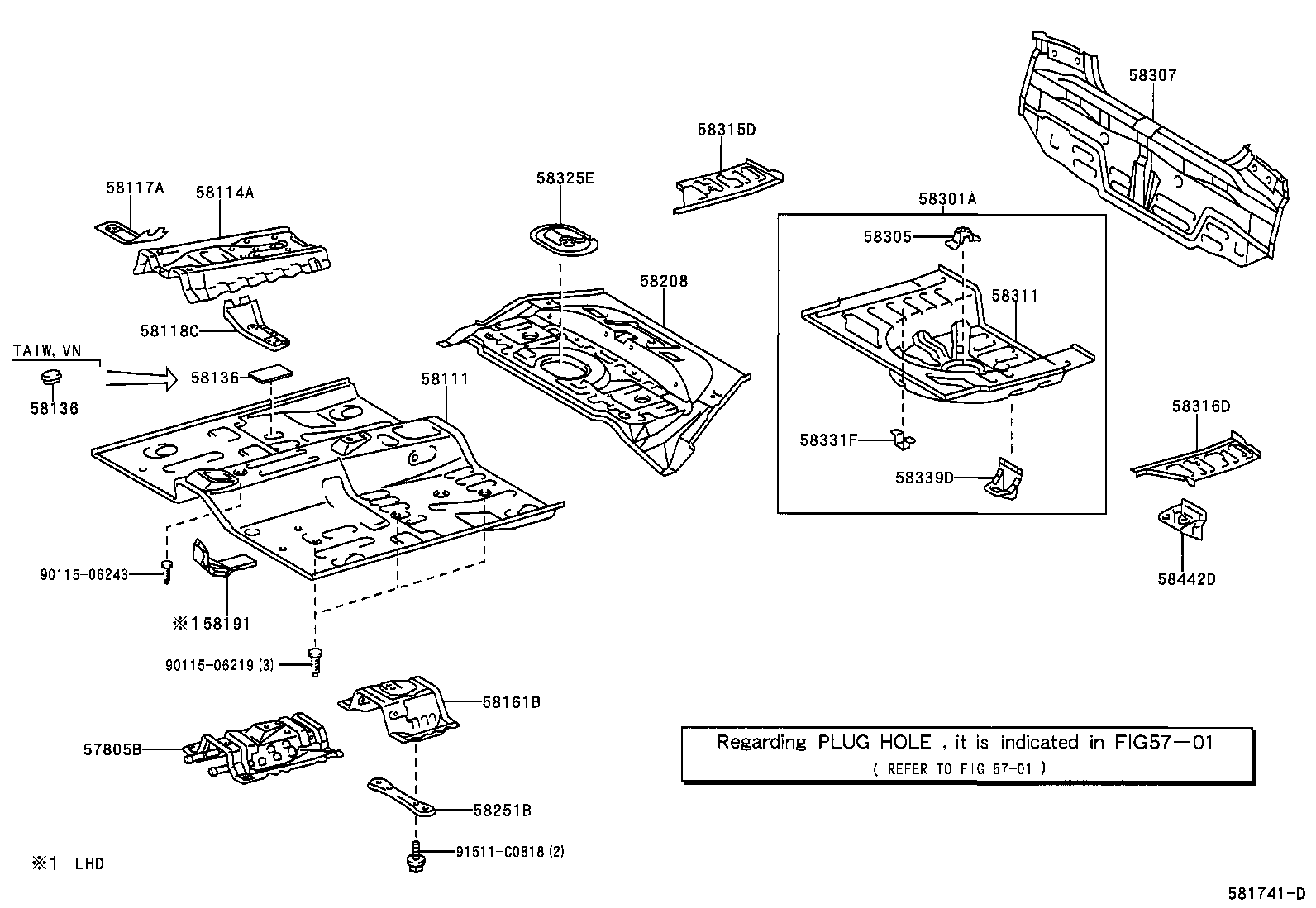

Floor Pan & Lower Back Panel
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 58111 | Pan, Front Floor |
| 58114A | Reinforcement, Front Floor Panel |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58136 | Cover, Front Floor Hole |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58191 | Footrest, Front Floor |
| 58208 | Pan, Center Floor |
| 58251B | Brace, Floor Panel, Front |
| 58301A | Panel Sub-assy, Rear Floor |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58339D | Bracket, Jack UP |
| 58442D | Cover, Jack |
| 71316 | Bracket, Rear Seat Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
