Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

12 part groups · 8 illustrations

Illustrations

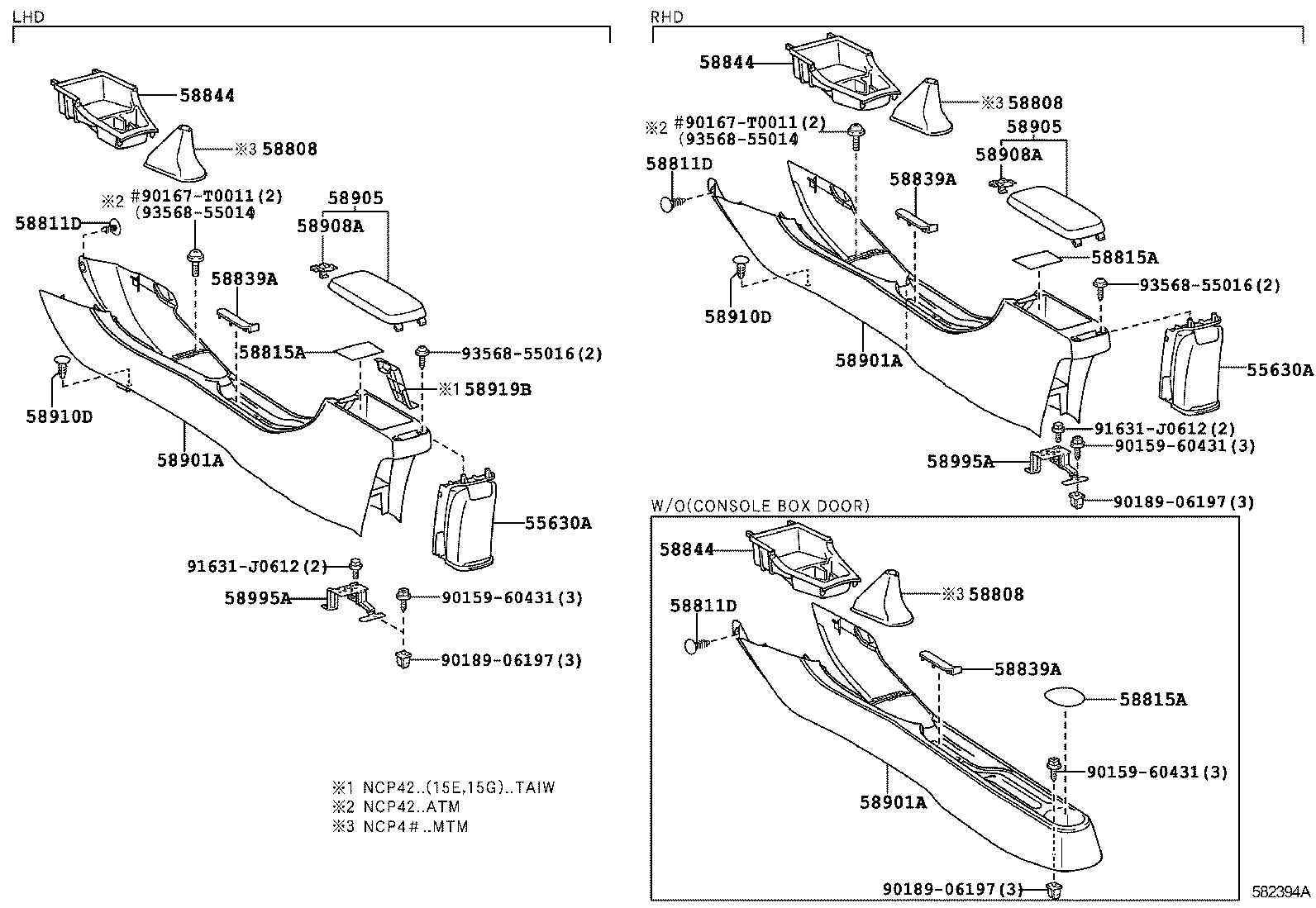

Figure 581650A 581650A 2002-10 → 2006-08 Figure 581650A 581650A 2002-12 → 2005-10 Figure 581650A 581650A 2003-05 → 2005-12 Figure 581650A 581650A 2003-07 → 2006-03 Figure 581650A 581650A 2006-08 → — Figure 582394A 582394A 2005-10 → — Figure 582394A 582394A 2005-12 → — Figure 582394A 582394A 2006-03 → —

Part groups

PNCDescription
55630A Holder, Rear Console Box, Cup
58808 Cover Sub-assy, Shifting Hole
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58839A Cover, Console Box Hole
58844 Bezel, Console Box
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910D Clip(FOR CONSOLE BOX)
58919B Plate, Console Box
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
