Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

28 part groups · 3 illustrations

Illustrations

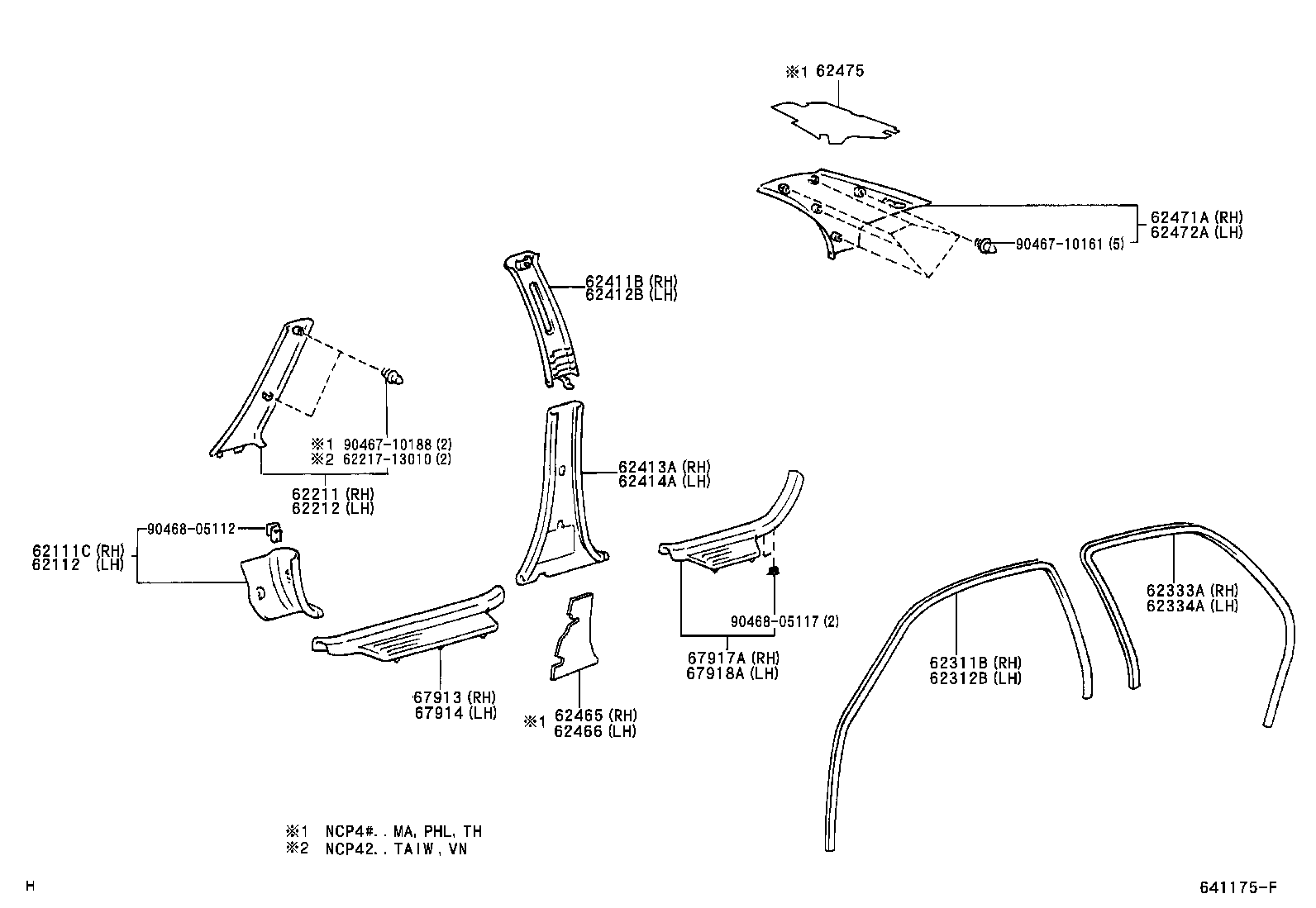

Figure 641085C 641085C 2002-10 → 2006-08 Figure 641085C 641085C 2006-08 → — Figure 641175F 641175F 2002-12 → —

Part groups

PNCDescription
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62465 Pad, Quarter Lock Pillar, RH
62466 Pad, Quarter Lock Pillar, LH
62471A Garnish, Roof Side, Inner RH
62472A Garnish, Roof Side, Inner LH
62475 Pad, Roof Side Inner Garnish
62551A Cover, Rear Seat Side, RH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62552A Cover, Rear Seat Side, LH
62565A Clip (FOR REAR SEAT SIDE GARNISH)
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67919 Ornament, Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
