Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

36 part groups · 5 illustrations

Illustrations

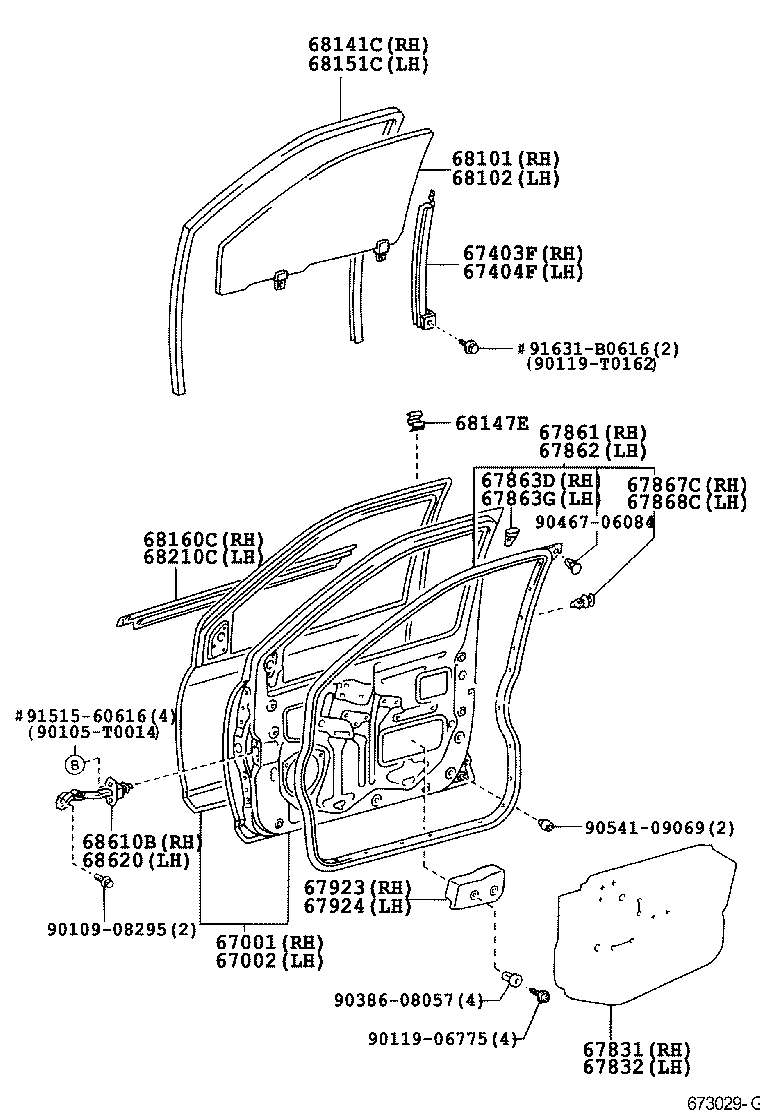

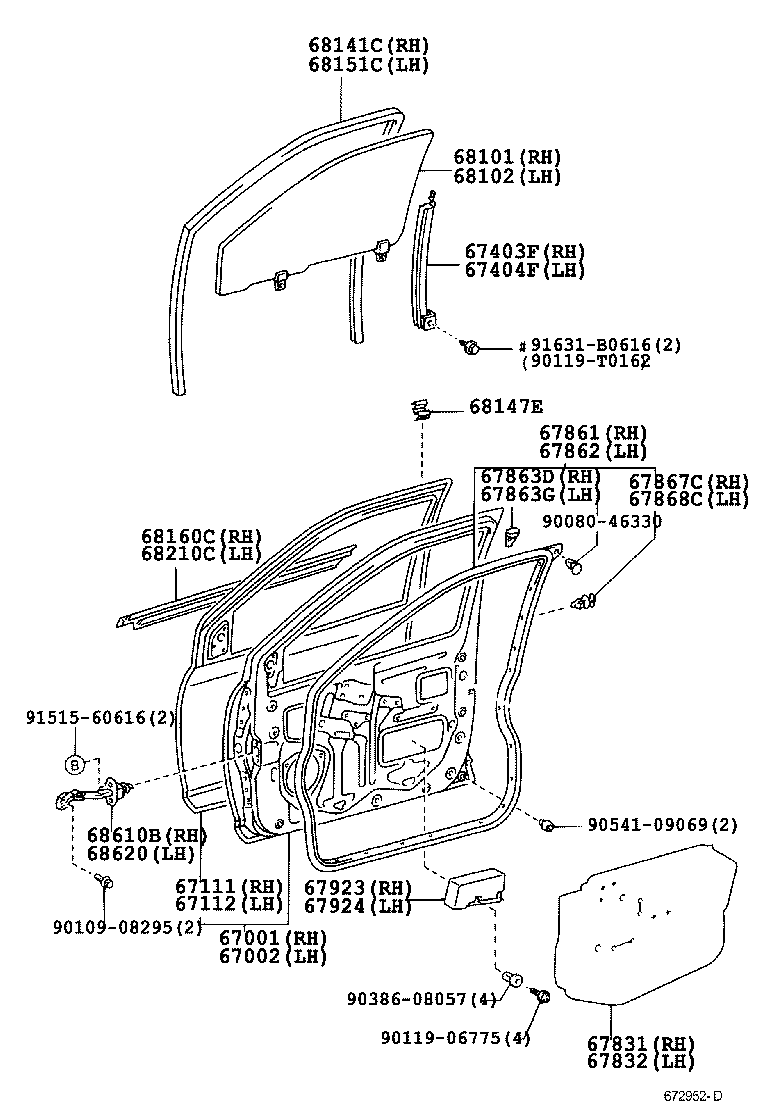

Figure 672838C 672838C 2002-10 → — Figure 672952D 672952D 2002-10 → — Figure 673029G 673029G 2002-12 → — Figure 673923D 673923D 2003-03 → — Figure 674072A 674072A 2005-11 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601L Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625 Bracket, Front Door Trim, RH
67626 Bracket, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67863D Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863G Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67923 Cushion, Front Door Stiffener, NO.1
67924 Cushion, Front Door Stiffener, NO.2
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68147E Stop, Front Door Glass, Upper
68151C Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
86262E Cover, Speaker, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
