Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01

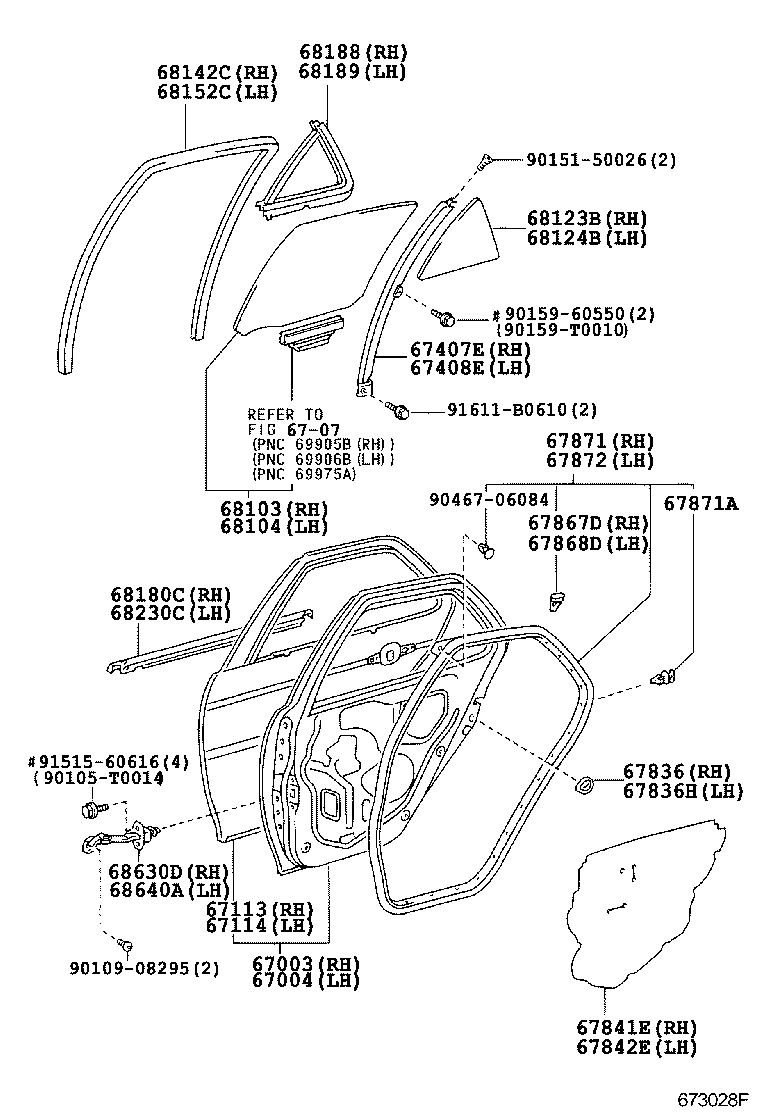

Rear Door Panel & Glass

36 part groups · 3 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67004	Panel Sub-assy, Rear Door, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67216E	Stopper, Rear Door Glass, Upper NO.2
67407E	Bar Sub-assy, Rear Door Window Division, RH
67408E	Bar Sub-assy, Rear Door Window Division, LH
67603	Board Sub-assy, Rear Door Trim, RH
67603B	Clip(FOR REAR DOOR TRIM BOARD)
67603E	Clip(FOR REAR DOOR TRIM BOARD)
67604	Board Sub-assy, Rear Door Trim, LH
67627	Bracket, Rear Door Trim, RH
67628	Bracket, Rear Door Trim, LH
67836	Cover, Rear Door Lock Child Protection, RH
67836H	Cover, Rear Door Lock Child Protection, LH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67871	Weatherstrip, Rear Door, RH
67871A	Retainer(FOR REAR DOOR WEATHERSTRIP)
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68123B	Glass, Rear Door Quarter Window, RH
68124B	Glass, Rear Door Quarter Window, LH
68142C	Run, Rear Door Glass, RH
68152C	Run, Rear Door Glass, LH
68173B	Weatherstrip, Rear Door Glass, Inner RH
68174A	Weatherstrip, Rear Door Glass, Inner LH
68180C	Weatherstrip Assy, Rear Door Glass, Outer RH
68188	Weatherstrip, Rear Door Quarter Window, RH
68189	Weatherstrip, Rear Door Quarter Window, LH
68230C	Weatherstrip Assy, Rear Door Glass, Outer LH
68630D	Check Assy, Rear Door, RH
68640A	Check Assy, Rear Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
