Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

41 part groups · 12 illustrations

Illustrations

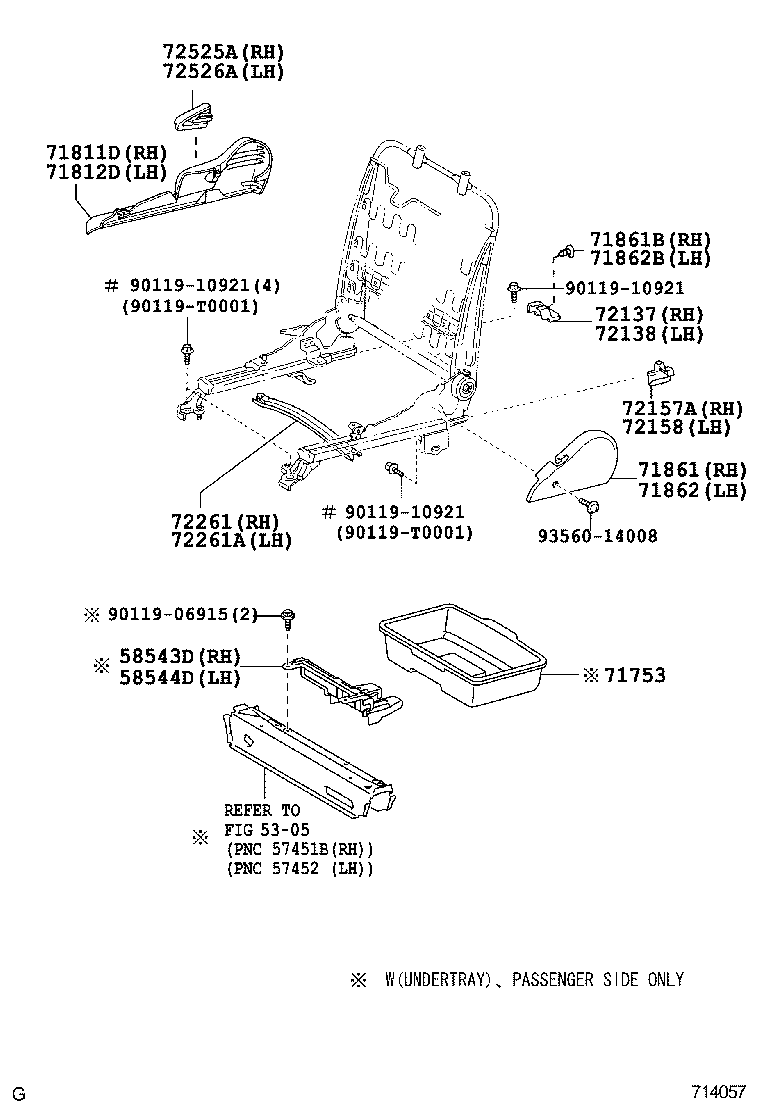

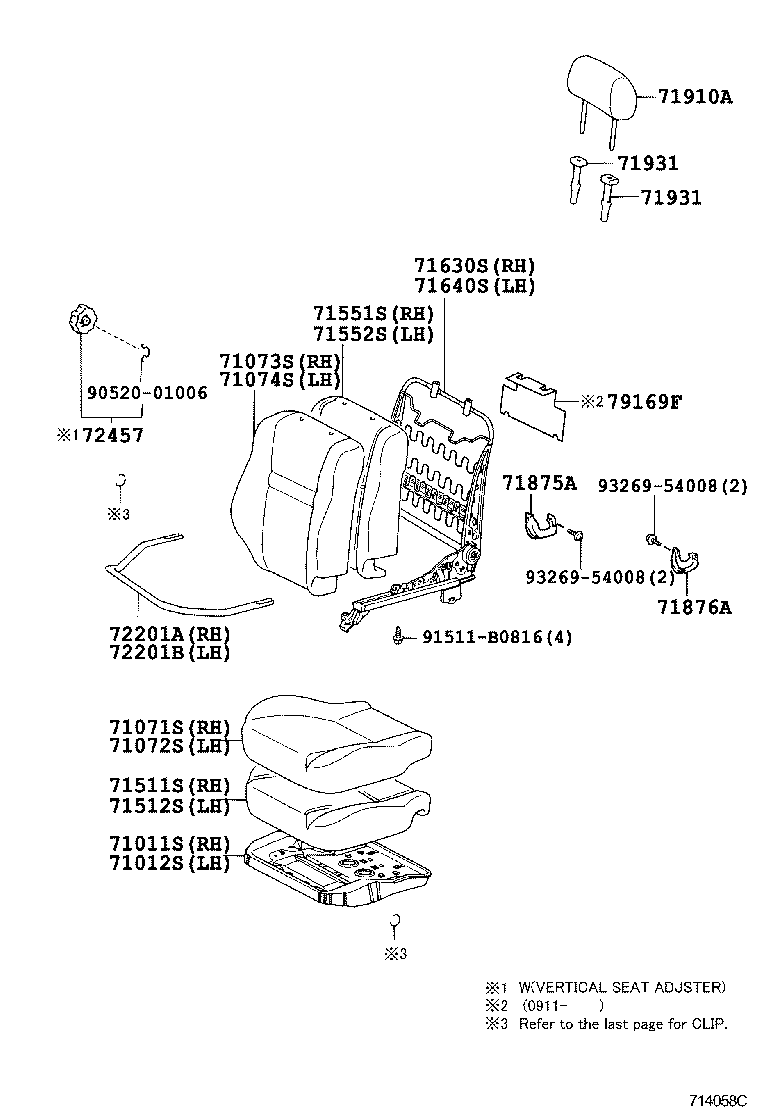

Figure 712487C 712487C 2002-12 → 2005-10 Figure 712487C 712487C 2003-05 → 2005-12 Figure 712487C 712487C 2003-07 → — Figure 714058C 714058C 2002-10 → — Figure 714058C 714058C 2005-10 → — Figure 714058C 714058C 2005-12 → — Figure 712488C 712488C 2002-10 → — Figure 712488C 712488C 2002-12 → 2005-10 Figure 712488C 712488C 2003-05 → 2005-12 Figure 714057 714057 2005-10 → — Figure 714057 714057 2005-12 → — Figure 718166A 718166A 2002-10 → —

Part groups

PNCDescription
58543D Bracket, Floor Carpet, RH
58544D Bracket, Floor Carpet, LH
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71861B Clip(FOR FRONT SEAT SHIELD, RH)
71862 Shield, Front Seat Cushion, Inner LH
71862B Clip(FOR FRONT SEAT SHIELD, LH)
71875A Cover, Reclining Adjuster Inside, RH
71876A Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72261 Reinforcement, Seat Track, RH
72261A Reinforcement, Seat Track, LH
72457 Knob, Vertical Seat Adjuster
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
79169F Cloth, NO.1 Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
