Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

24 part groups · 4 illustrations

Illustrations

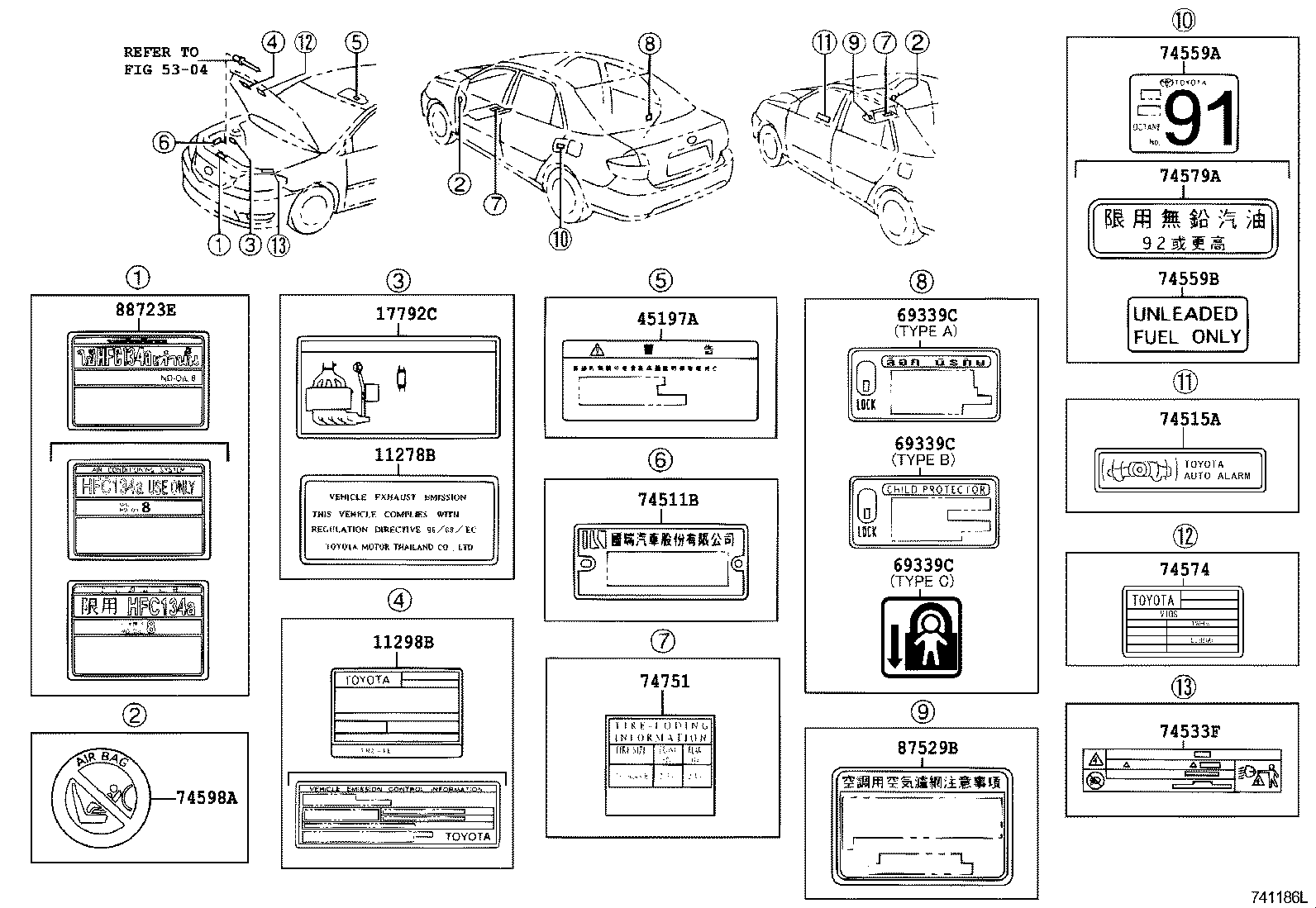

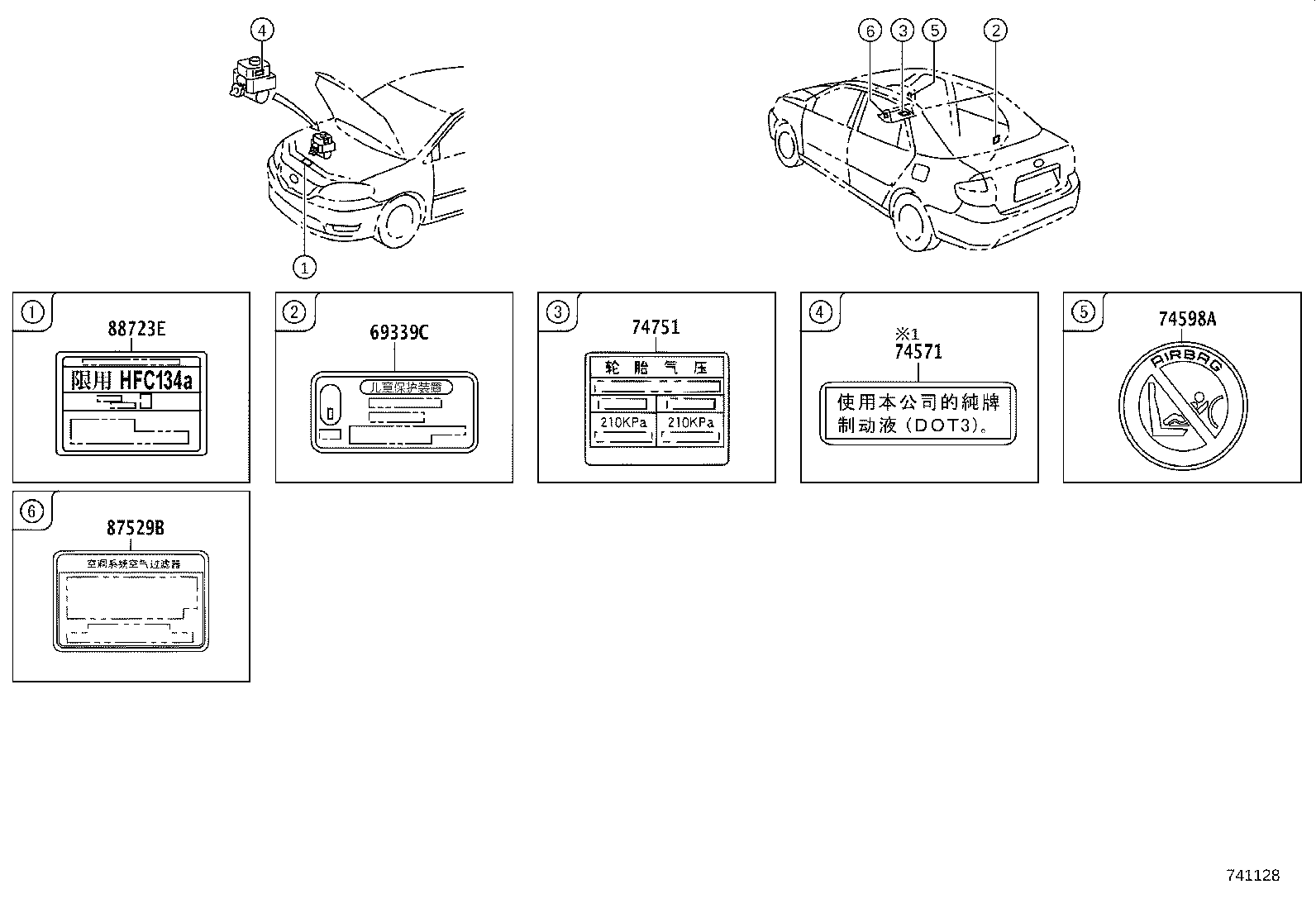

Figure 745468A 745468A 2002-10 → — Figure 741128E 741128E 2002-10 → — Figure 741186L 741186L 2002-12 → — Figure 742282C 742282C 2002-12 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11291B Plate, Engine Name
11293C Label, Tune-up Specification Information
11296C Label, Engine Service Information
11298B Label, Emission Control Information
13564 Label, Timing Belt Replacement Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
45197A Label, Airbag Caution
69339C Label, Child Protector Information
74511B Plate, Name
74515A Plate, Theft Warning
74533F Label, Headlamp Voltage Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74571 Plate, Brake Fluid Caution
74574 Plate, Noise Identification
74579A Label, Unleaded Fuel Information
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
