Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

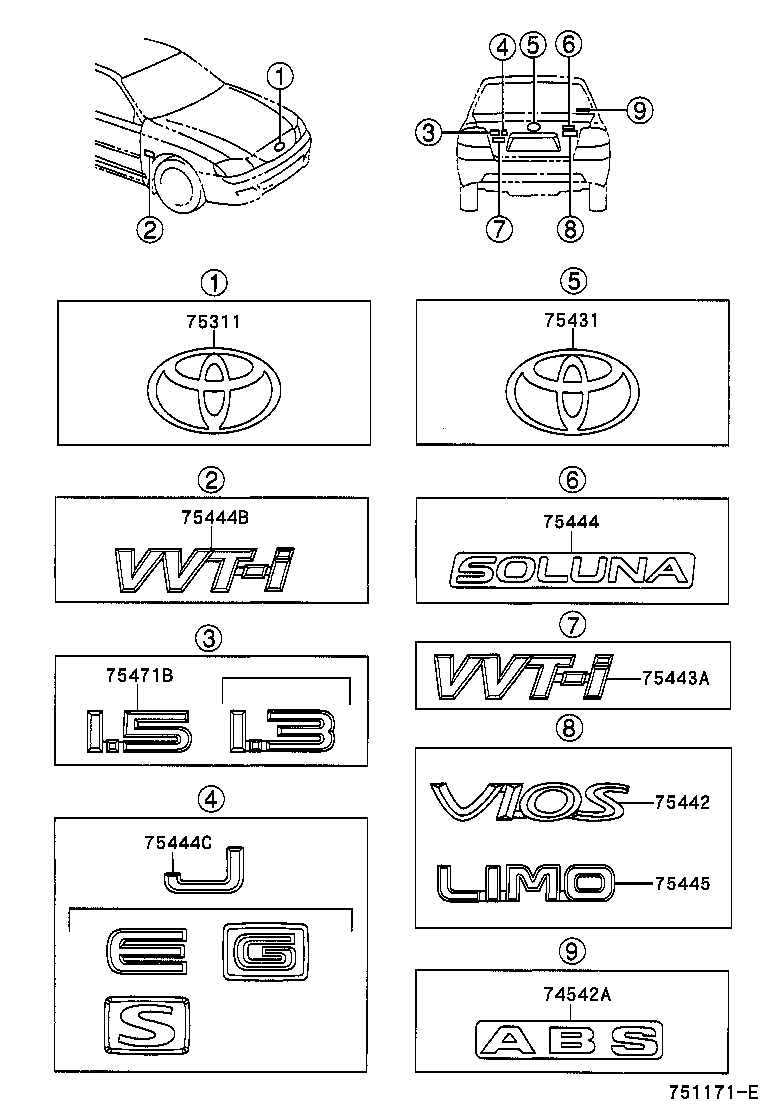

Figure 751119J 751119J 2002-10 → — Figure 751171E 751171E 2002-12 → —

Part groups

PNCDescription
74542A Plate, Rear Window Mark
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75431 Emblem, Luggage Compartment Door
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75444B Plate, Front Fender
75444C Plate, Luggage Compartment Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75446 Plate, Luggage Compartment Door Name, NO.6
75447 Plate, Luggage Compartment Door Name, NO.7
75471B Plate, Rear Body Name, NO.1
75472A Plate, Rear Body Name, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
