Toyota Vios/Soluna Vios
2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General
Discontinued model
Data version 2014-01

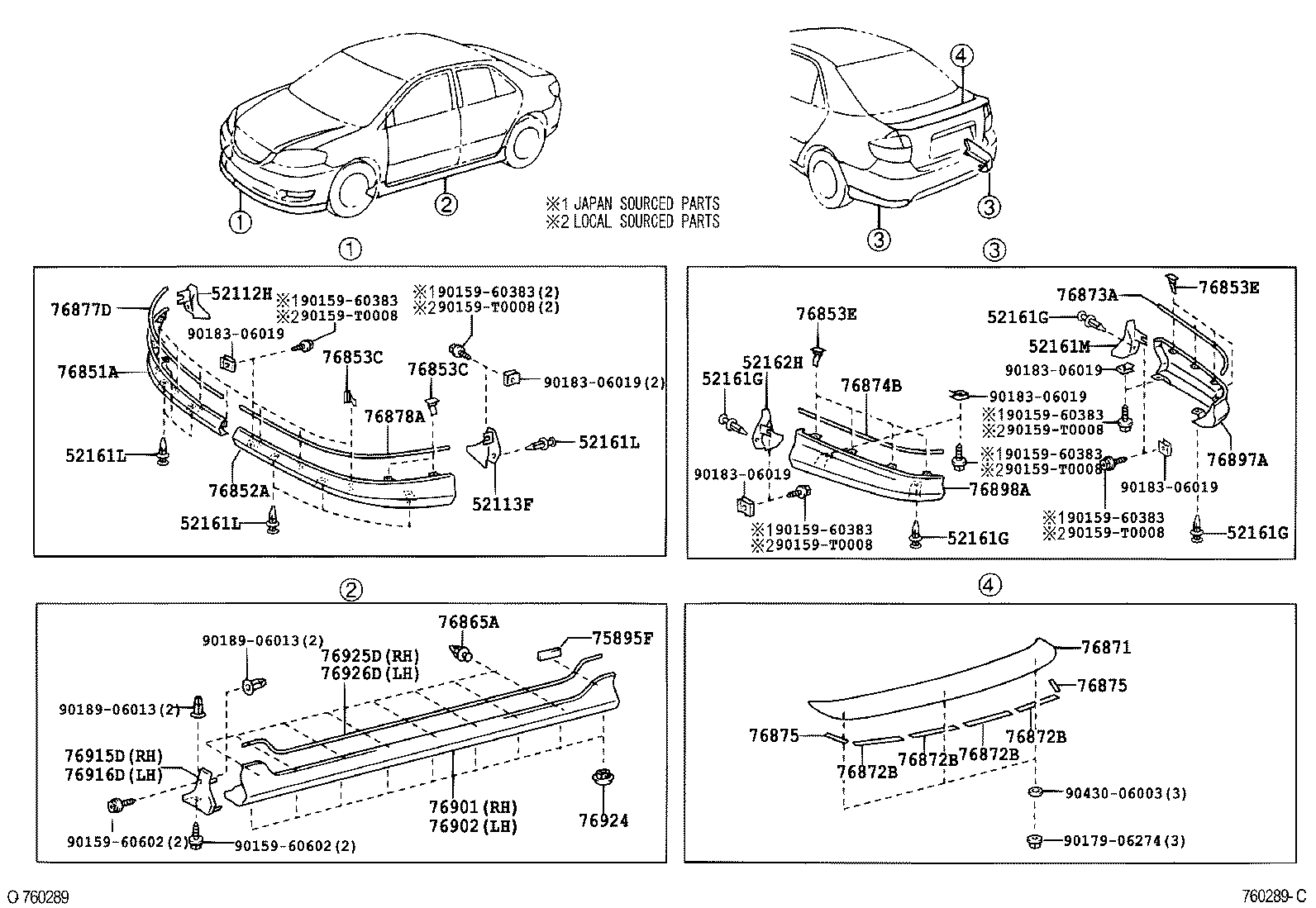

Mudguard & Spoiler
33 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112H | Extension, Front Bumper, RH |
| 52113F | Extension, Front Bumper, LH |
| 52161G | Piece, Rear Bumper |
| 52161L | Piece, Front Spoiler |
| 52161M | Extension, Rear Bumper Side, RH |
| 52162H | Extension, Rear Bumper Side, LH |
| 75895F | Tape, Moulding, NO.1 |
| 76621C | Mudguad, Front Fender, RH |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76865A | Retainer, Side Mudguard |
| 76871 | Spoiler, Rear |
| 76872B | Protector, Rear Spoiler, Center |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76895 | Protector, Rear Spoiler, NO.5 |
| 76897A | Spoiler,Rear Side RH |
| 76898A | Spoiler,Rear Side LH |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76915D | Mudguard, Side, Front RH |
| 76916D | Mudguard, Side, Front LH |
| 76924 | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
