Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 9 illustrations

Illustrations

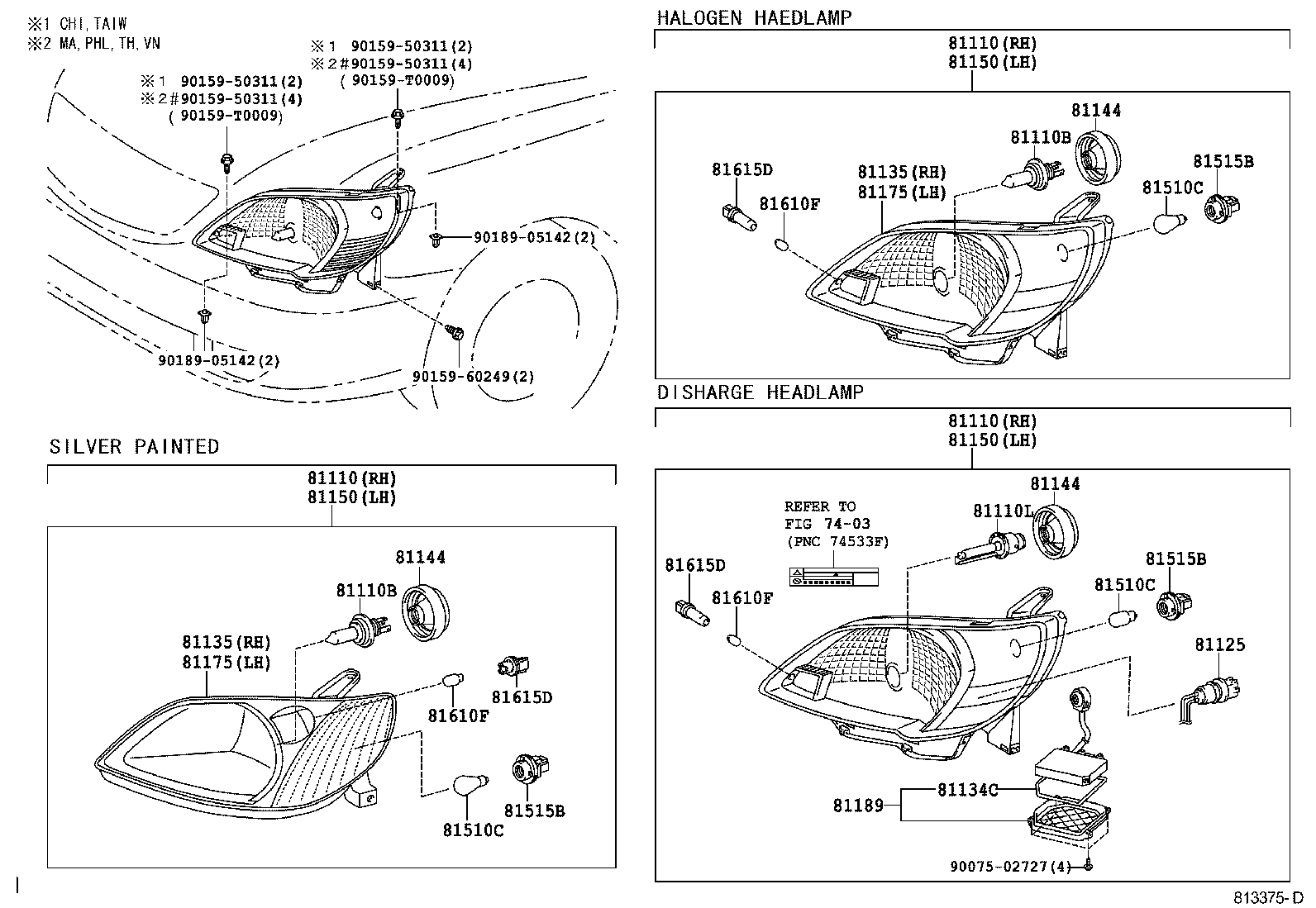

Figure 812310E 812310E 2002-10 → 2005-10 Figure 812310E 812310E 2002-10 → 2005-11 Figure 812310E 812310E 2003-05 → 2005-12 Figure 812310E 812310E 2003-07 → 2006-03 Figure 813375D 813375D 2005-10 → — Figure 813375D 813375D 2005-11 → 2006-08 Figure 813375D 813375D 2005-12 → — Figure 813375D 813375D 2006-03 → — Figure 813375D 813375D 2006-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134C Gasket, Headlamp Body, RH
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81189 Cover, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
