Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

9 part groups · 8 illustrations

Illustrations

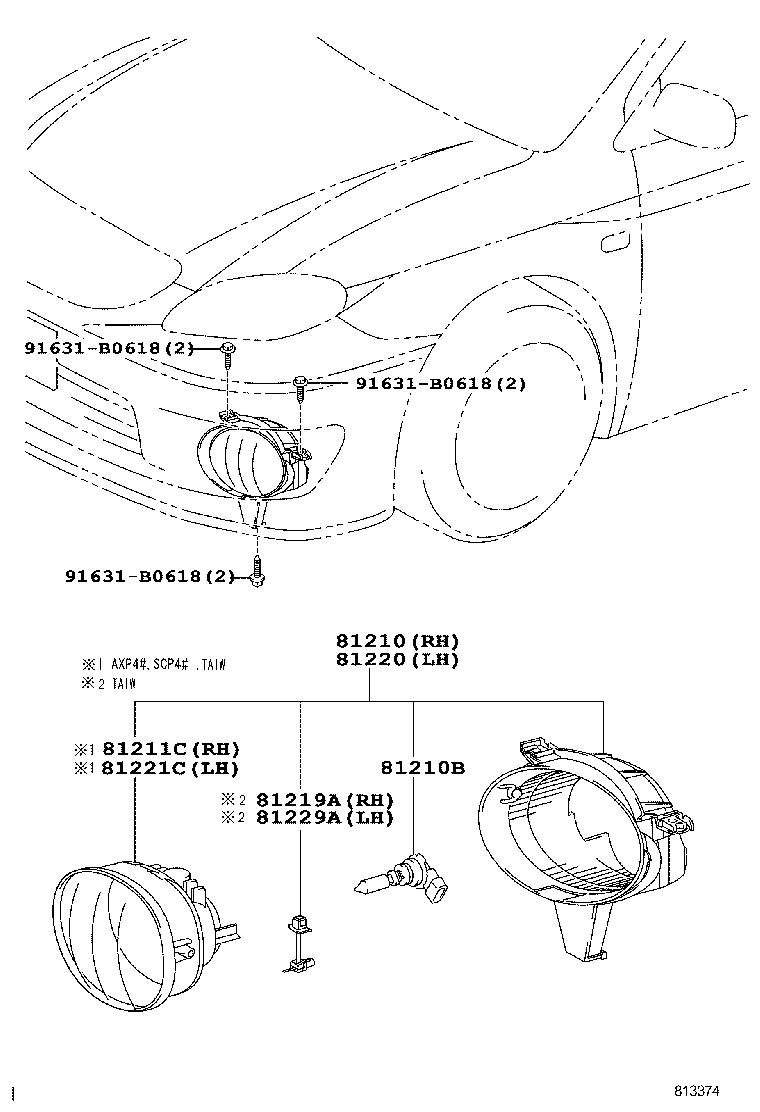

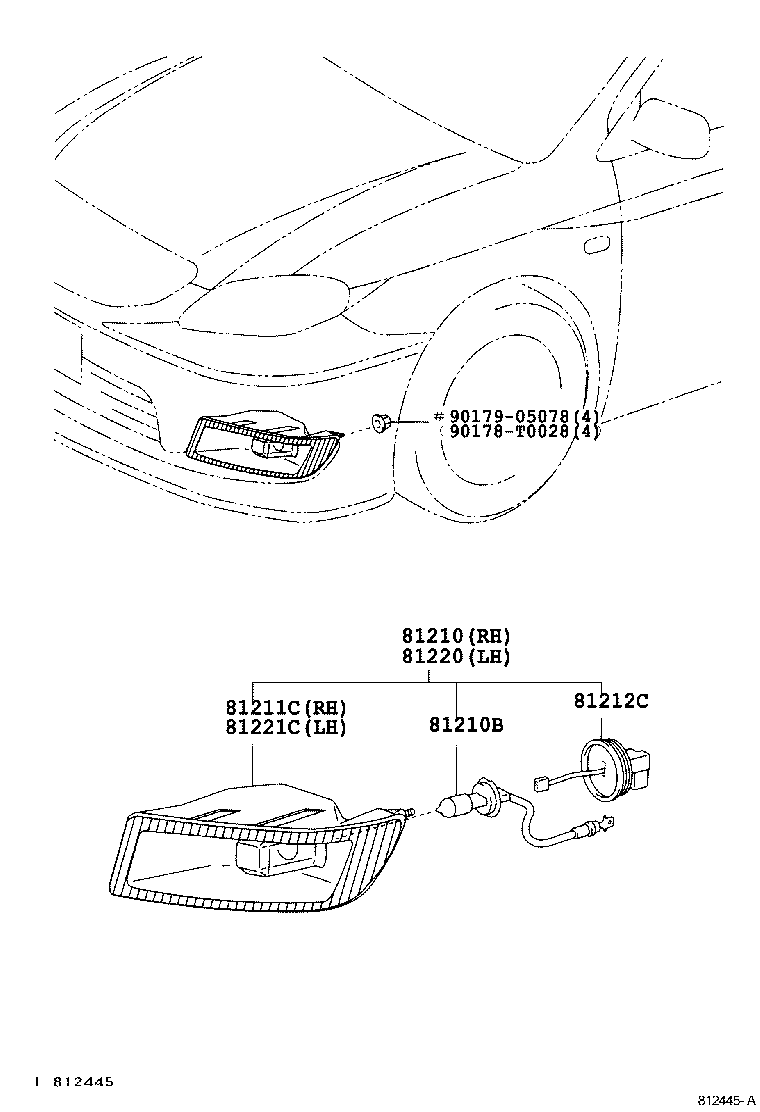

Figure 812304 812304 2002-10 → 2005-11 Figure 812445A 812445A 2002-12 → 2005-10 Figure 812445A 812445A 2003-05 → 2005-12 Figure 813374E 813374E 2005-10 → — Figure 813374E 813374E 2005-11 → 2006-08 Figure 813374E 813374E 2005-12 → — Figure 813374E 813374E 2006-03 → — Figure 813374E 813374E 2006-08 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
