Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 9 illustrations

Illustrations

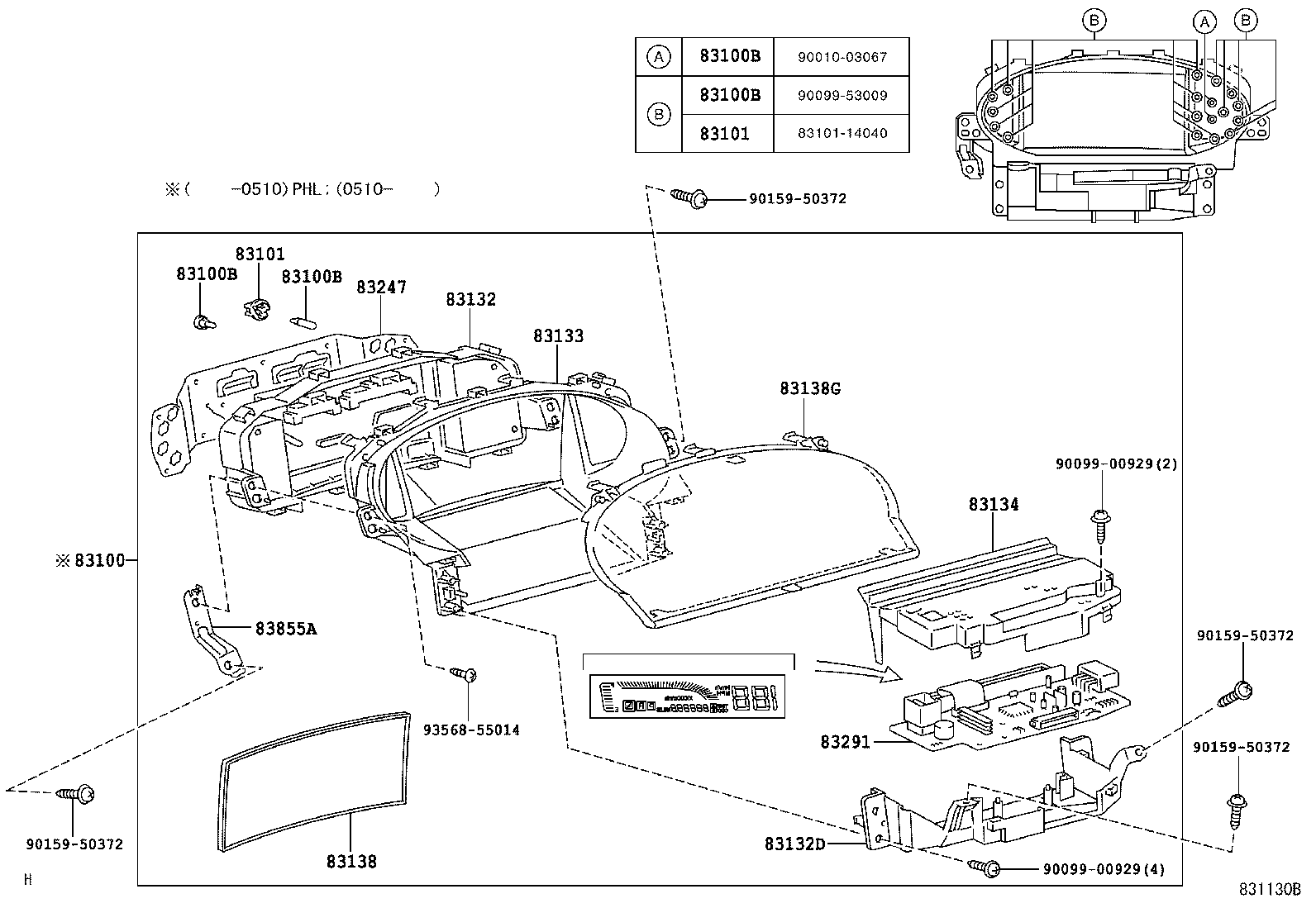

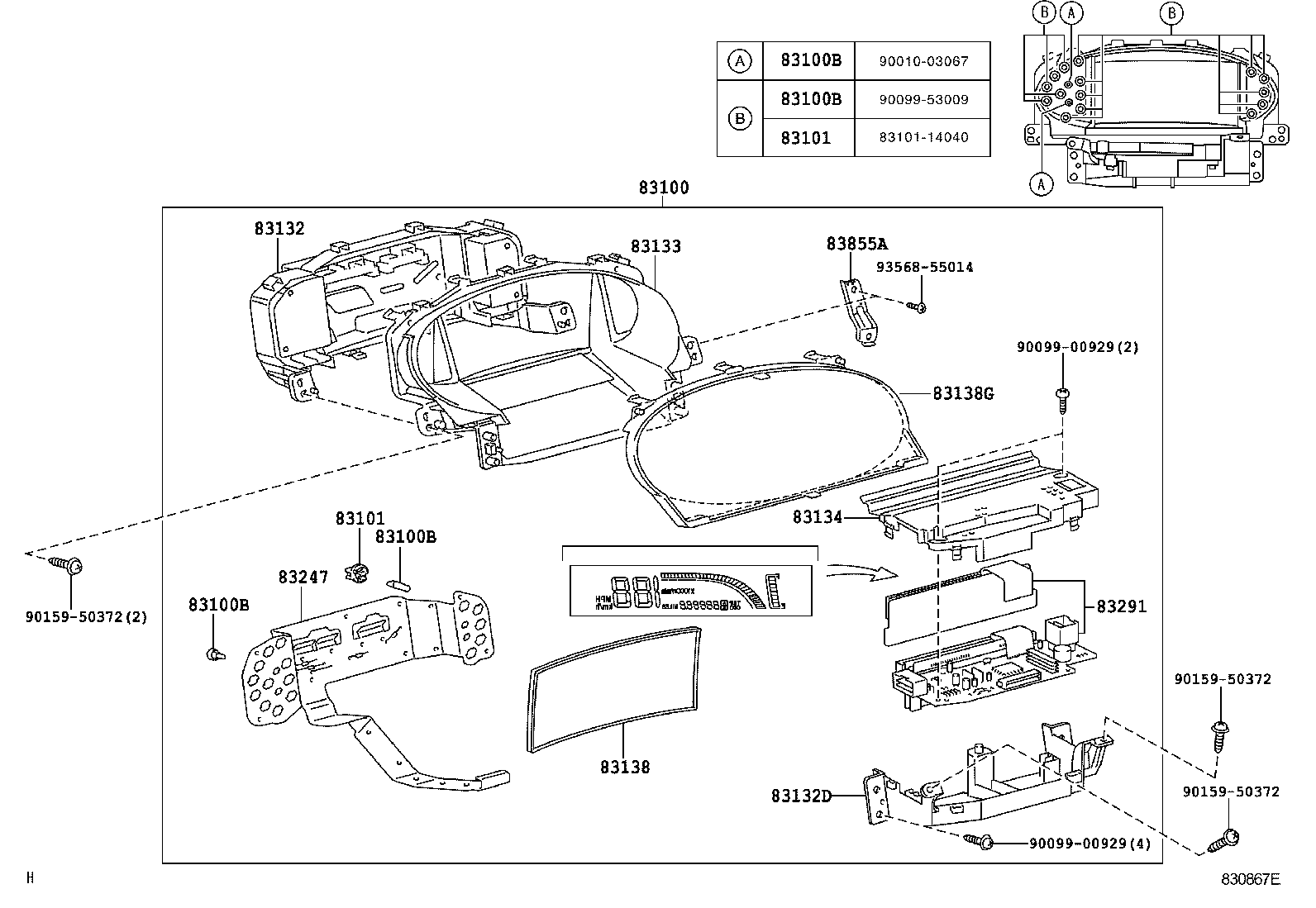

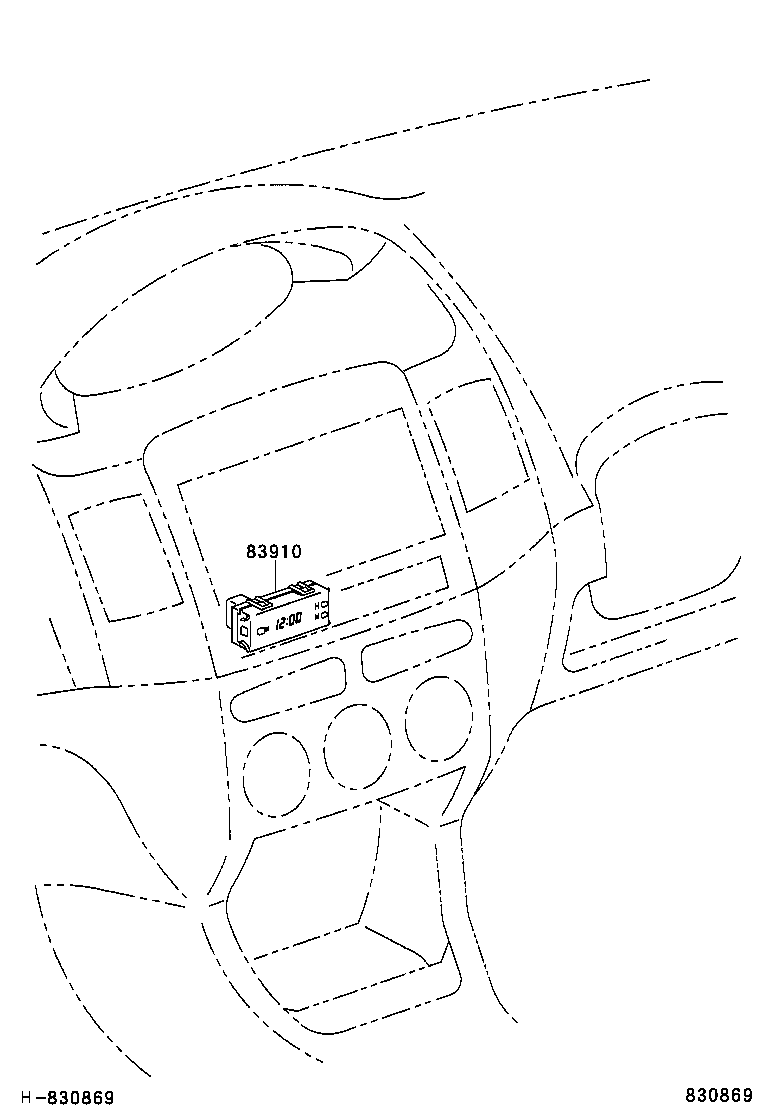

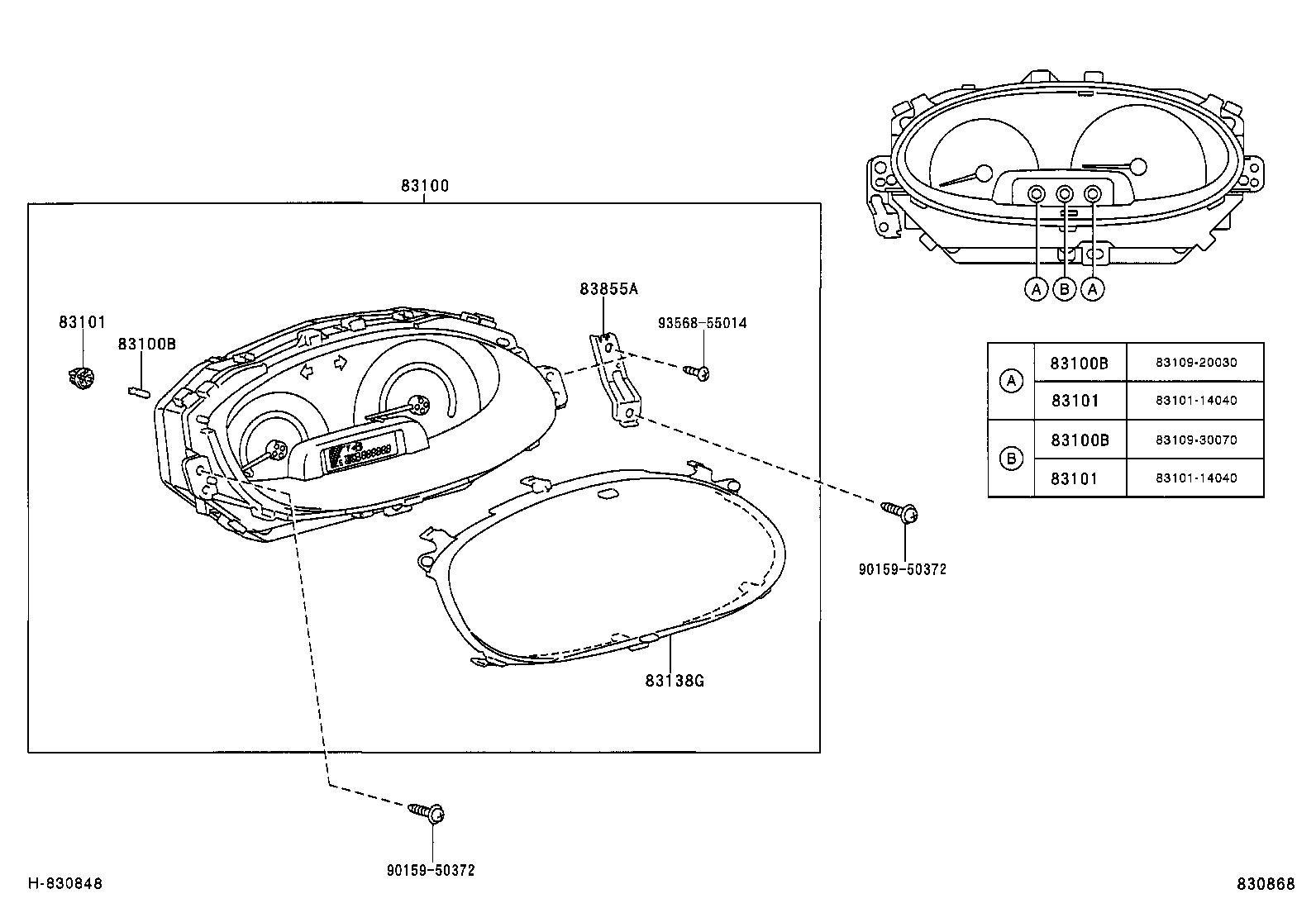

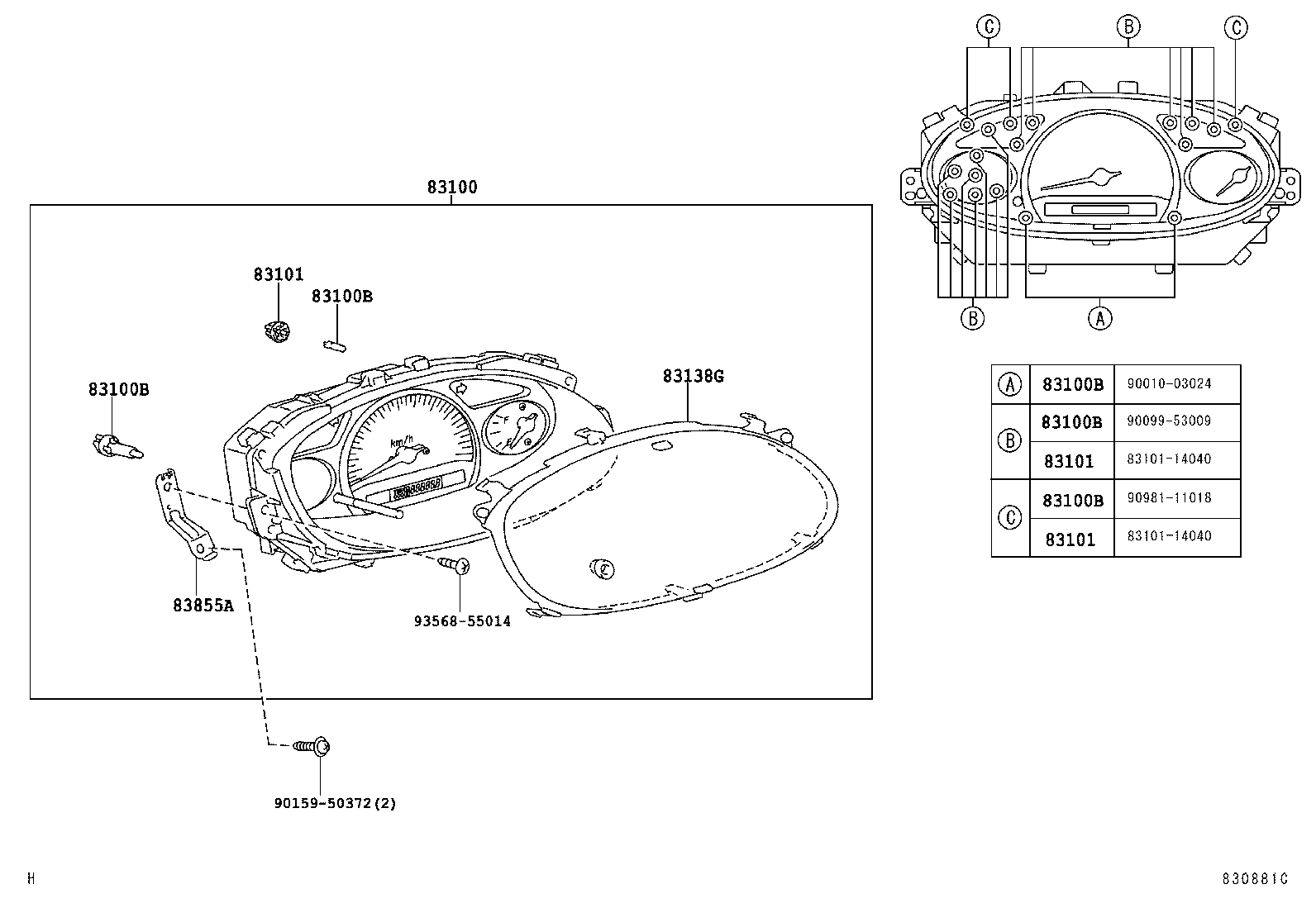

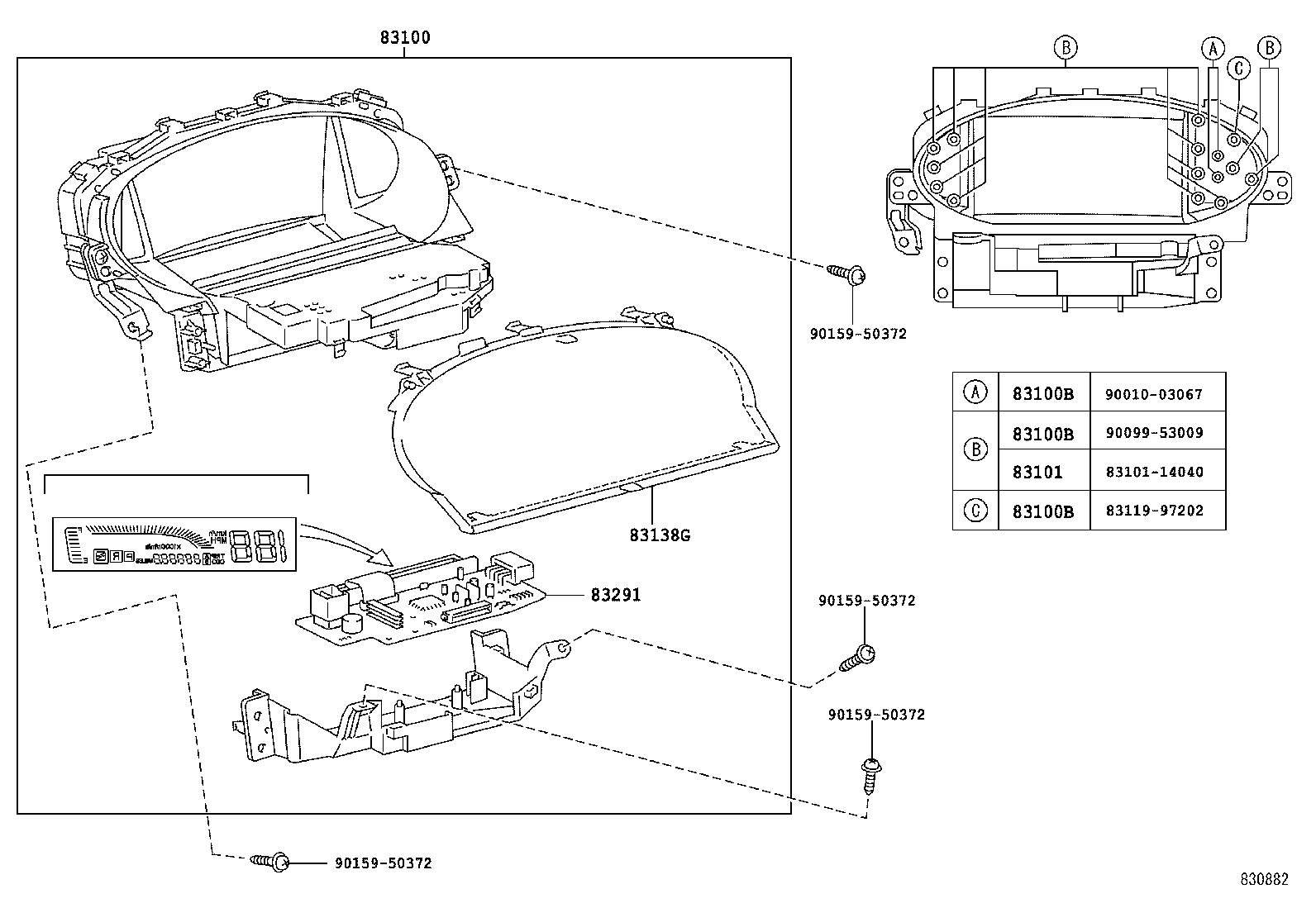

Figure 830848 830848 2002-10 → — Figure 830848 830848 2003-05 → — Figure 831130B 831130B 2002-10 → — Figure 830868 830868 2002-12 → — Figure 830867E 830867E 2002-12 → — Figure 830881D 830881D 2003-03 → — Figure 830881D 830881D 2003-05 → — Figure 830882D 830882D 2003-03 → — Figure 830869 830869 2002-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83138G Glass, Combination Meter
83247 Plate, Meter Circuit
83291 Computer, Combination Meter
83855A Bracket, Combination Meter, NO.1
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
