Toyota Vios/Soluna Vios

2002-10 → 2013-09 · chassis AXP4#,NCP4#,SCP4# · catalogue 149310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 7 illustrations

Illustrations

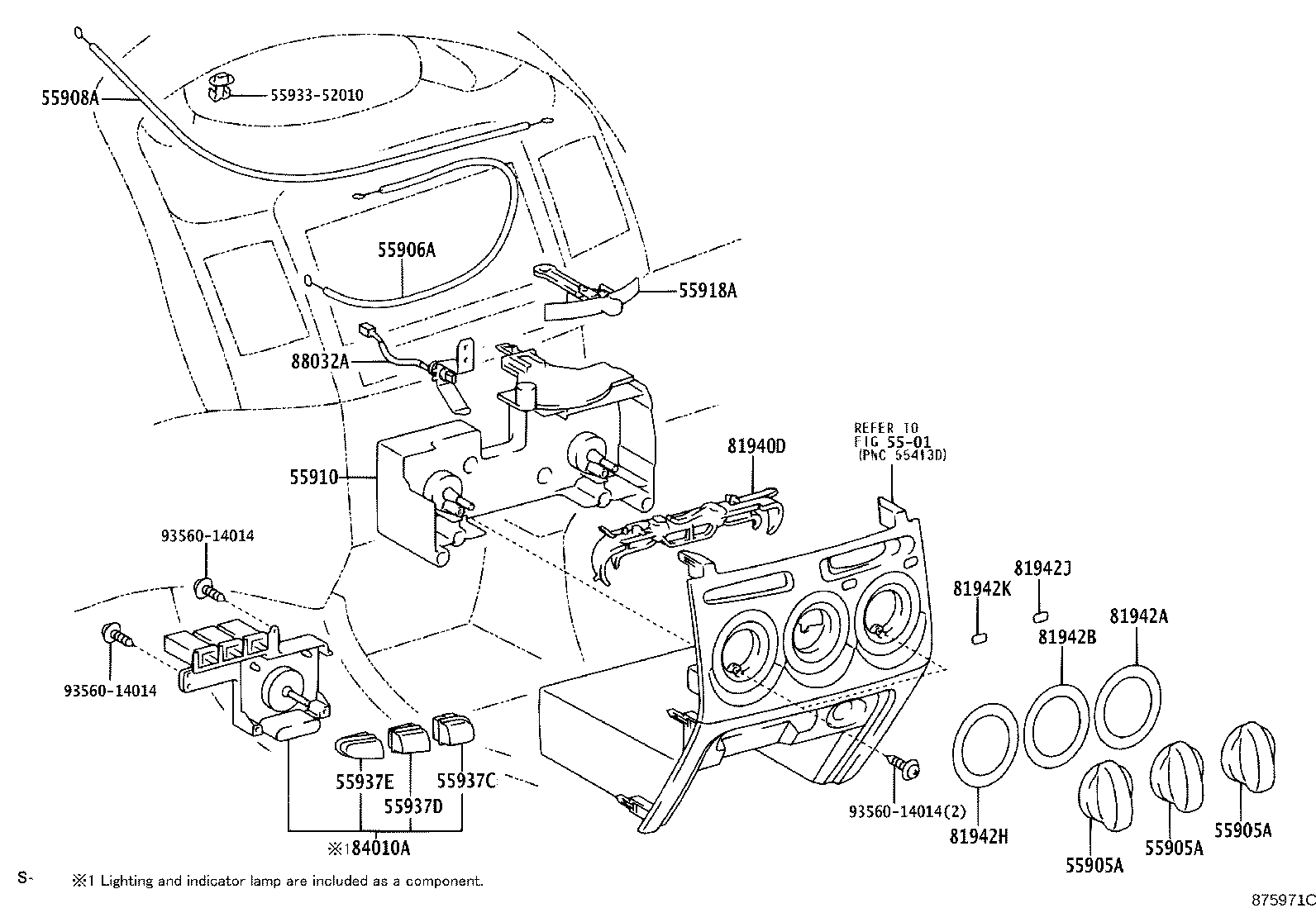

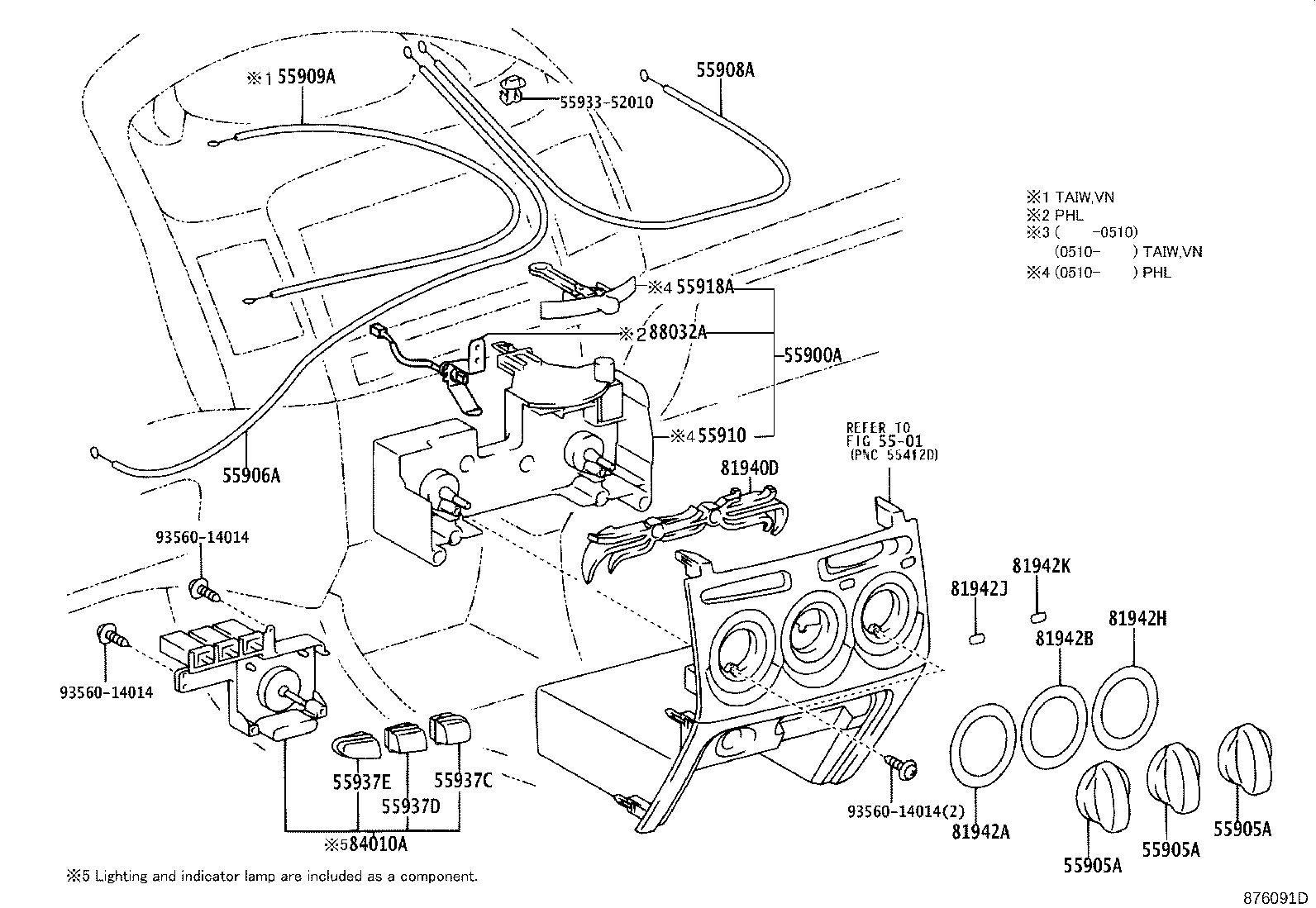

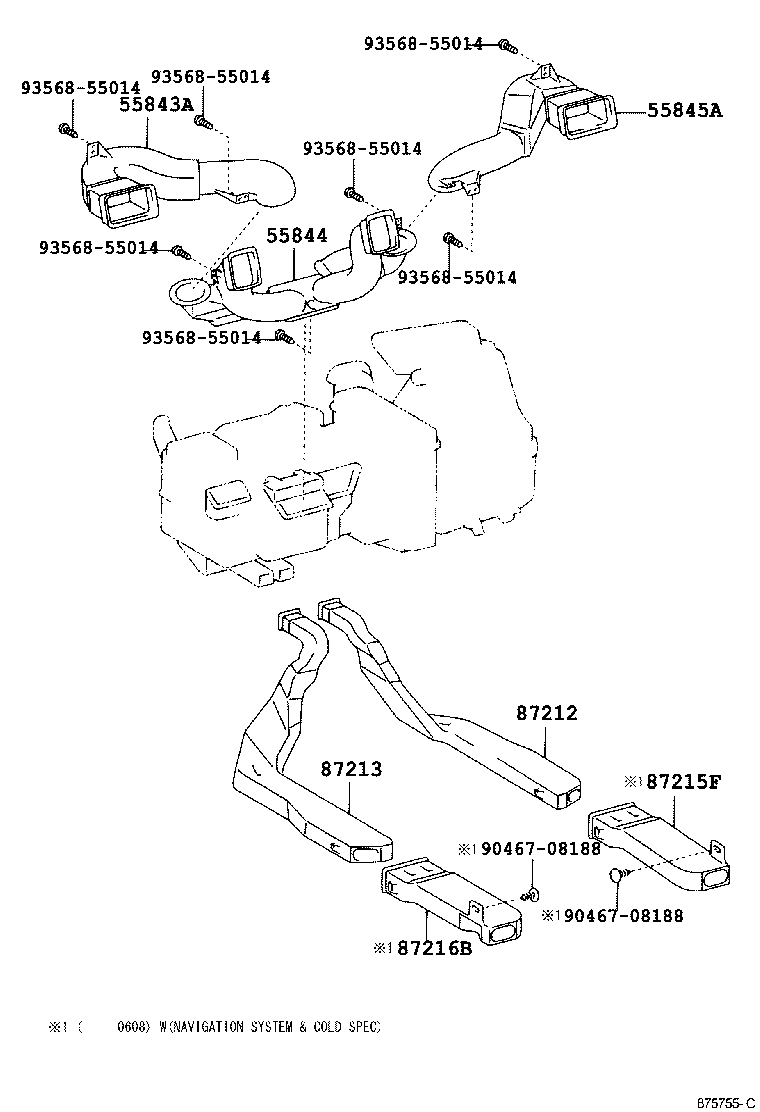

Figure 875754A 875754A 2002-10 → — Figure 875971C 875971C 2002-12 → — Figure 876091D 876091D 2003-03 → — Figure 875755C 875755C 2002-10 → — Figure 875972A 875972A 2002-12 → — Figure 876092 876092 2003-03 → — Figure 878709 878709 2006-08 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55918A Lever, Air Inlet Damper Control
55933A Clamp, Heater Control Cable
55937C Knob, Center Cluster Module
55937D Knob, Center Cluster Module, NO.1
55937E Knob, Center Cluster Module, NO.2
55937H Knob, Center Cluster Module, NO.5
55937J Knob, Center Cluster Module, NO.6
55937K Knob, Center Cluster Module, NO.7
81940D Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
84010A Control & Panel Assy, Integration
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88032A Resistor, Air Conditioner Variable
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
