Heating & Air Conditioning - Water Piping

6 part groups · 3 illustrations

Illustrations

Figure 875747B

875747B 2002-10 → 2006-08

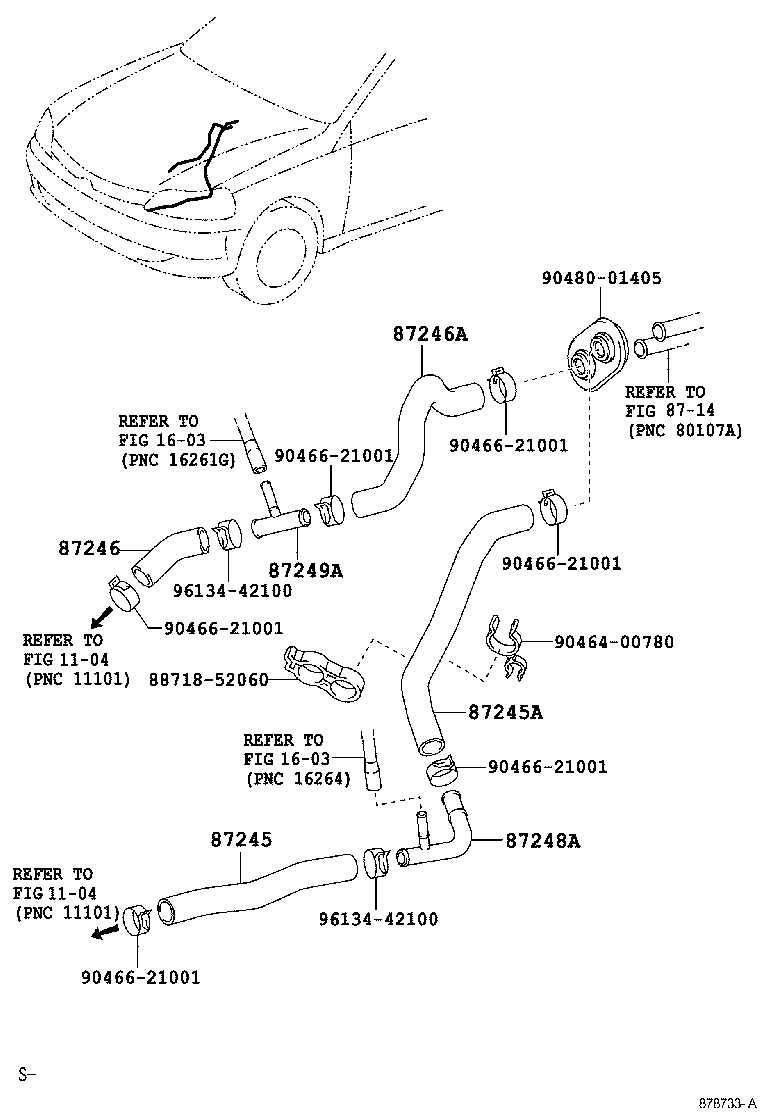

Figure 878733A

878733A 2006-08 → —

876068 2003-03 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
