Toyota Vios

2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

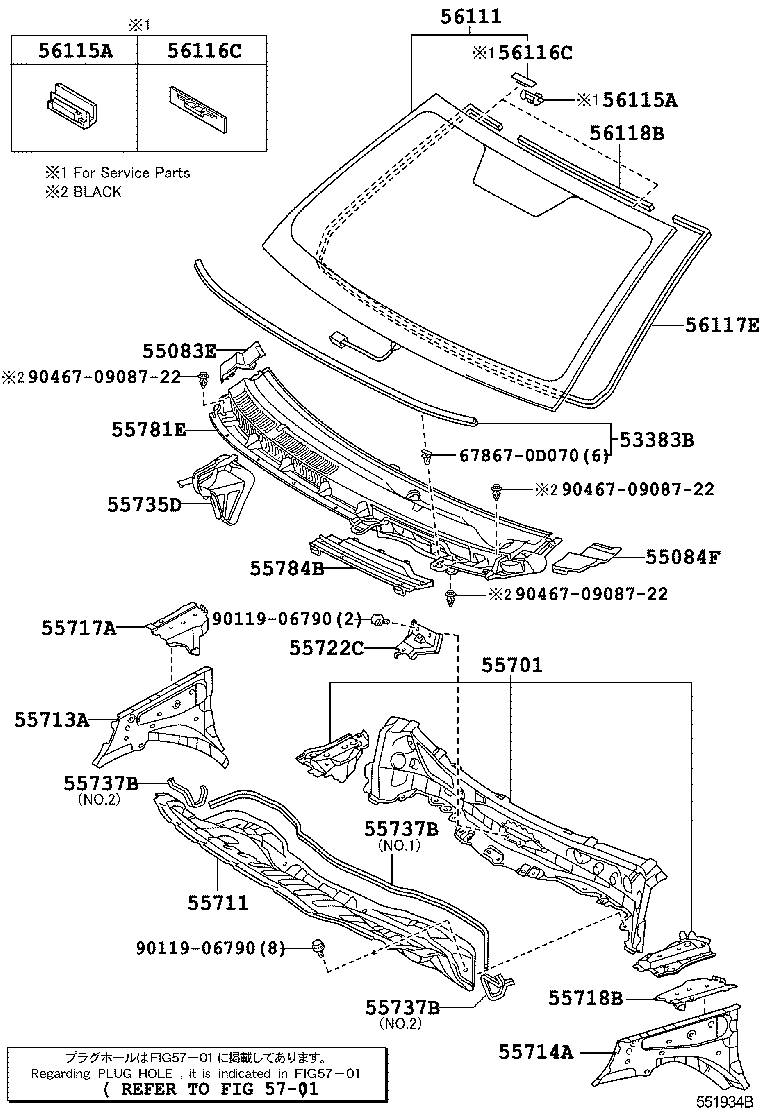

Figure 551849E 551849E 2007-02 → — Figure 551934B 551934B 2007-08 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55083E Ventilator Sub-assy, Cowl Side, RH
55084F Ventilator Sub-assy, Cowl Side, LH
55701 Panel Sub-assy, Cowl
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55722C Brace, Cowl Top TO Cowl, Inner
55735D Seal, Front Air Shutter, RH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55781E Louver Sub-assy, Cowl Top Ventilator
55784B Louver, Cowl Top Ventilator, Center NO.2
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117E Dam, Window Glass Adhesive
56118B Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
