Toyota Vios

2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 2 illustrations

Illustrations

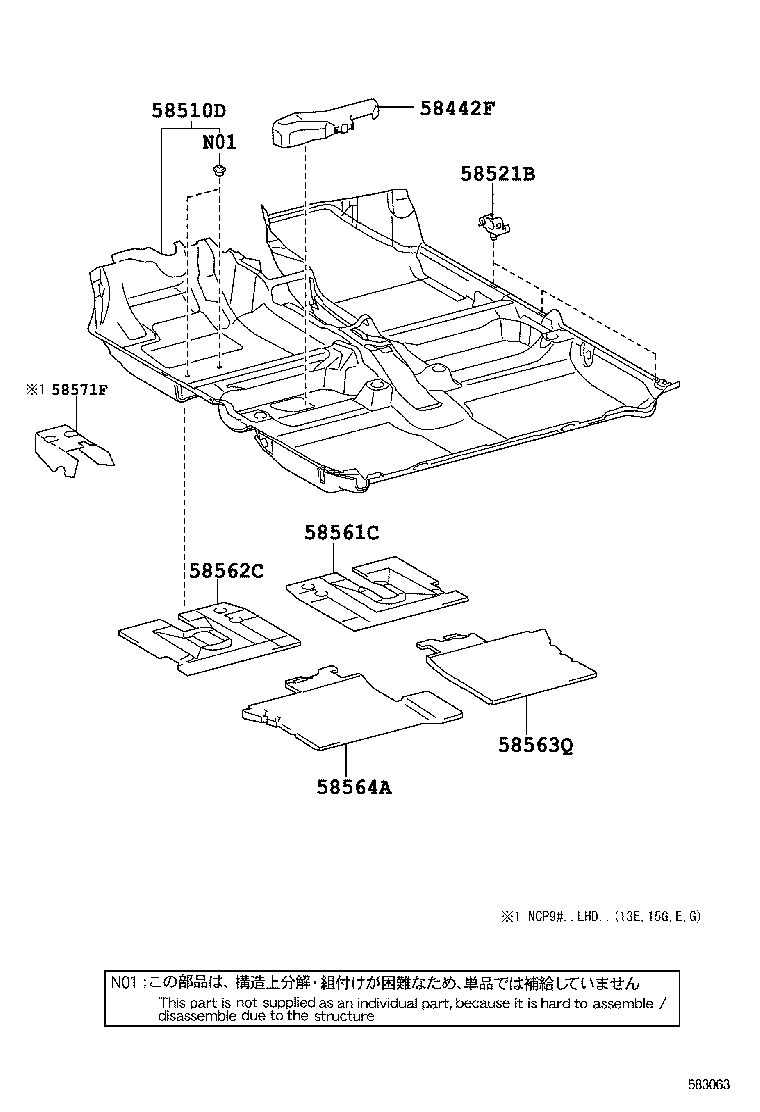

Figure 582946B 582946B 2007-02 → — Figure 583063 583063 2007-08 → —

Part groups

PNCDescription
58442F Cover, Jack
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58571F Pad, Front Floor, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
