Toyota Vios
2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General
Supported model
Data version 2014-01

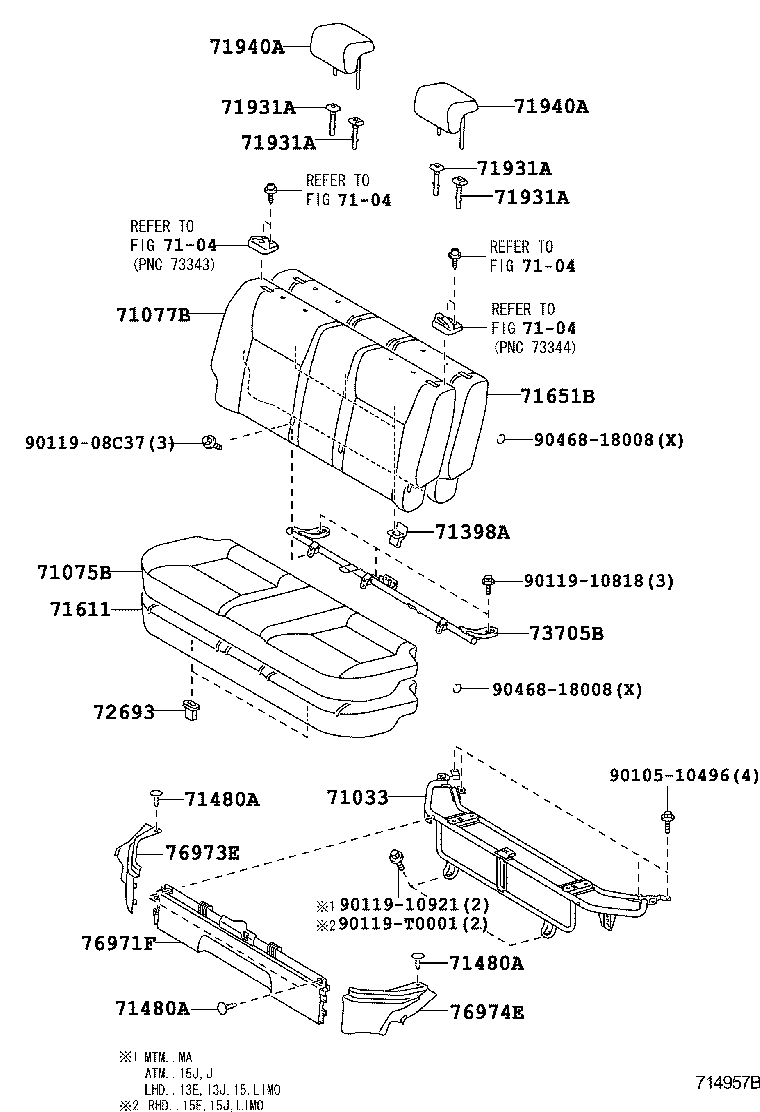

Rear Seat & Seat Track
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71281A | Hinge, Rear Seat Center Armrest |
| 71398A | Holder, Rear Seatback |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72661C | Button, Rear Seatback Lock Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72868B | Cover, Center Armrest Hinge |
| 73705B | Bracket Sub-assy, Cross Anchor |
| 76971F | Cover, Rear Under |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
