Toyota Vios

2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

29 part groups · 15 illustrations

Illustrations

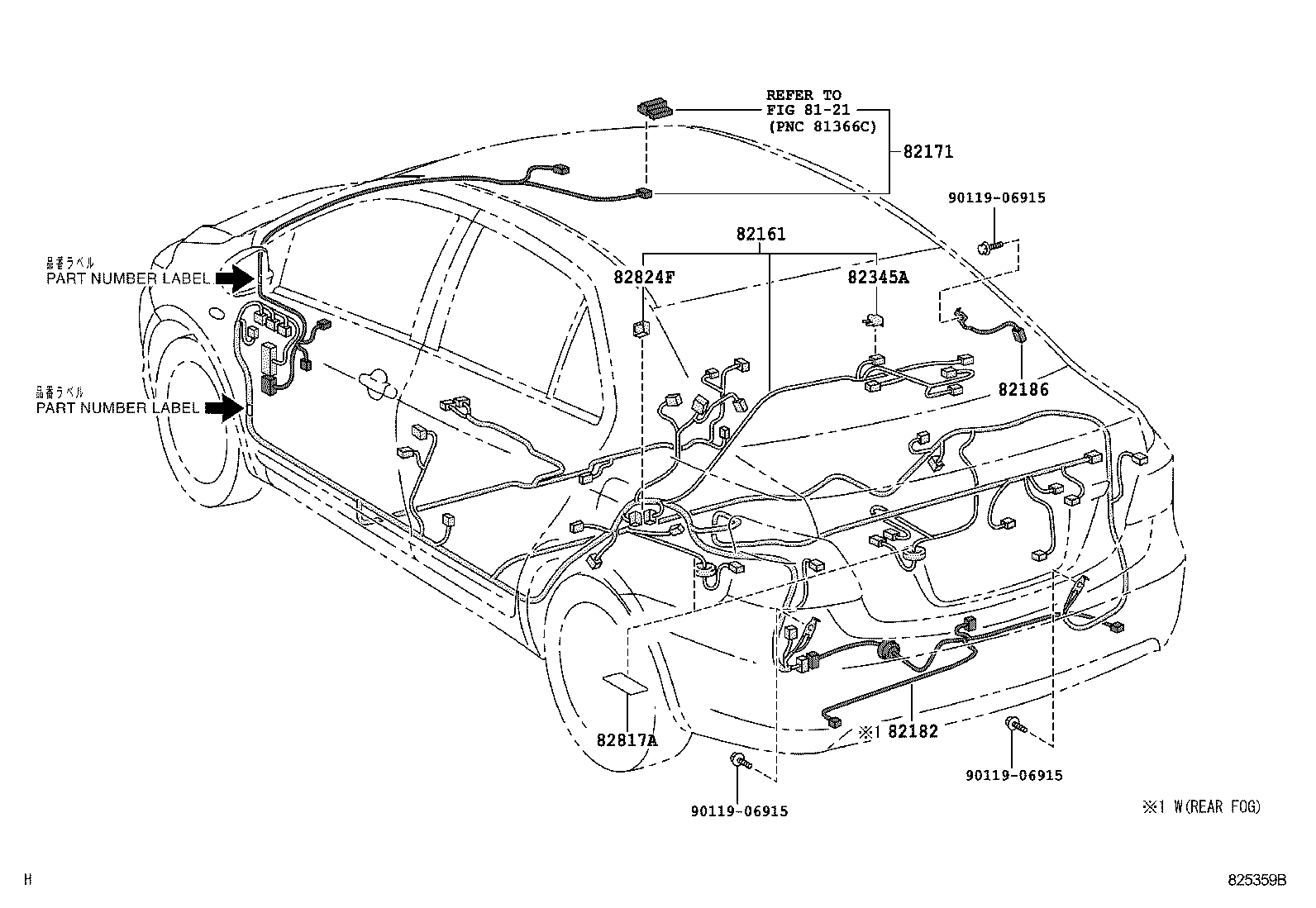

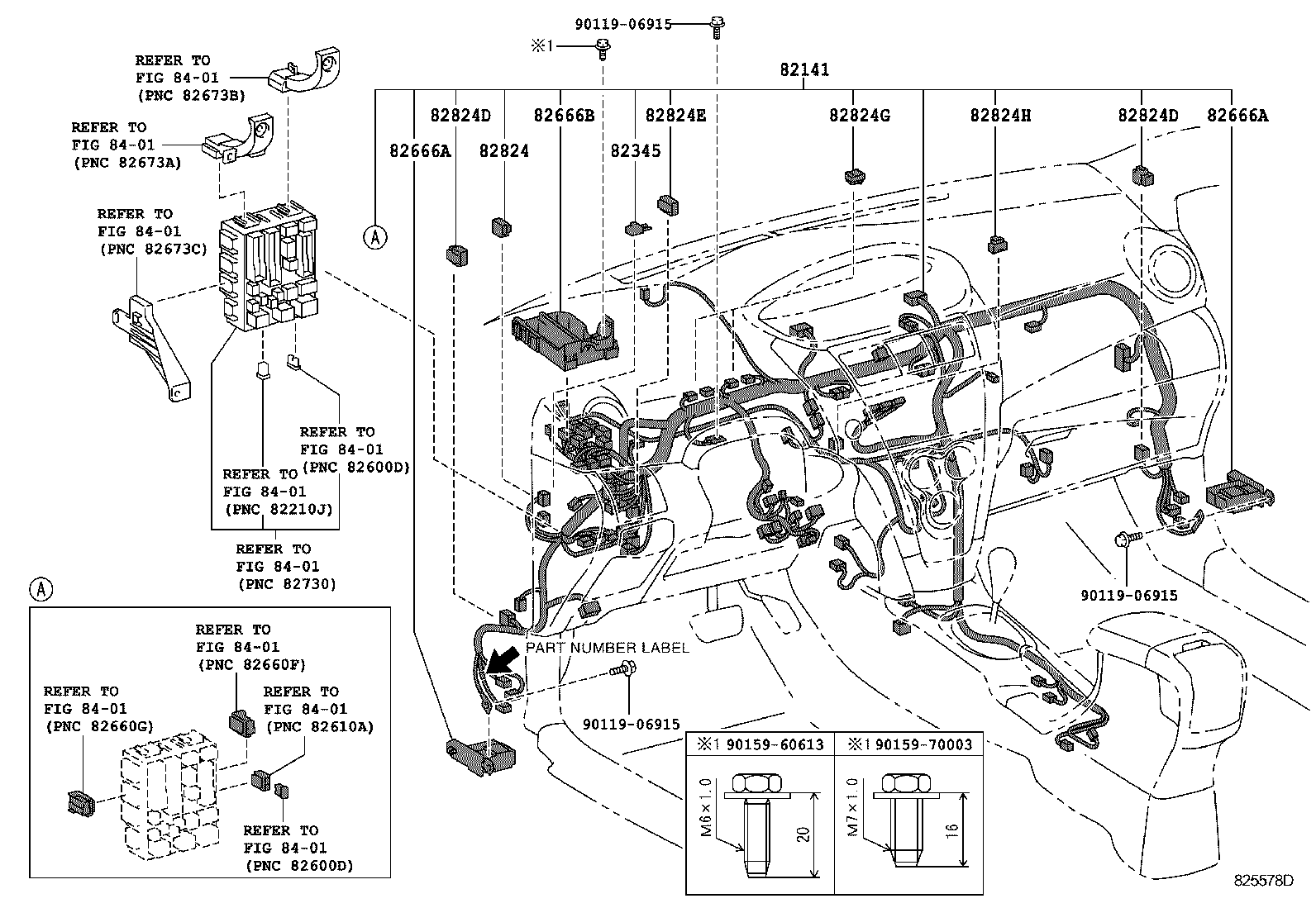

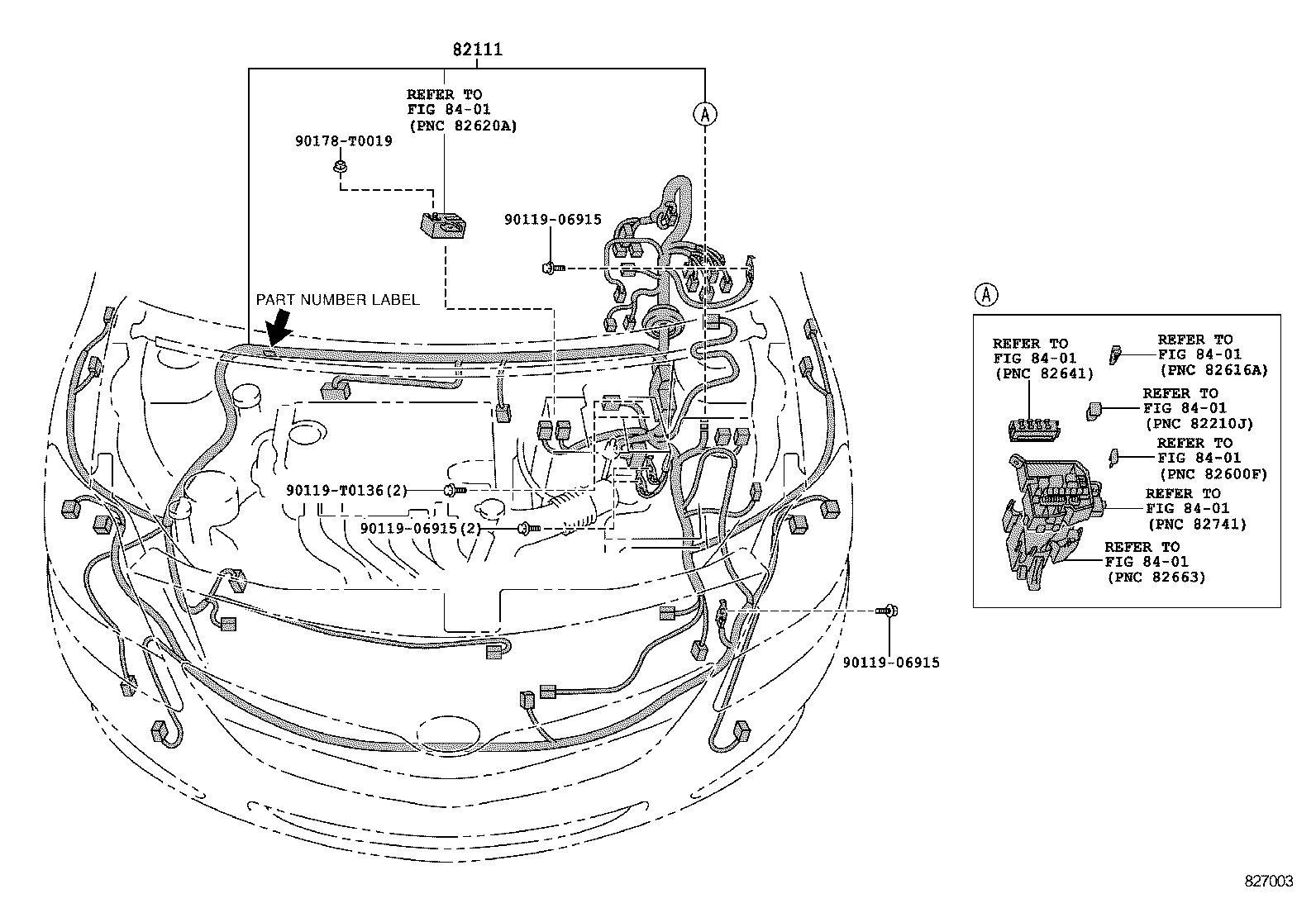

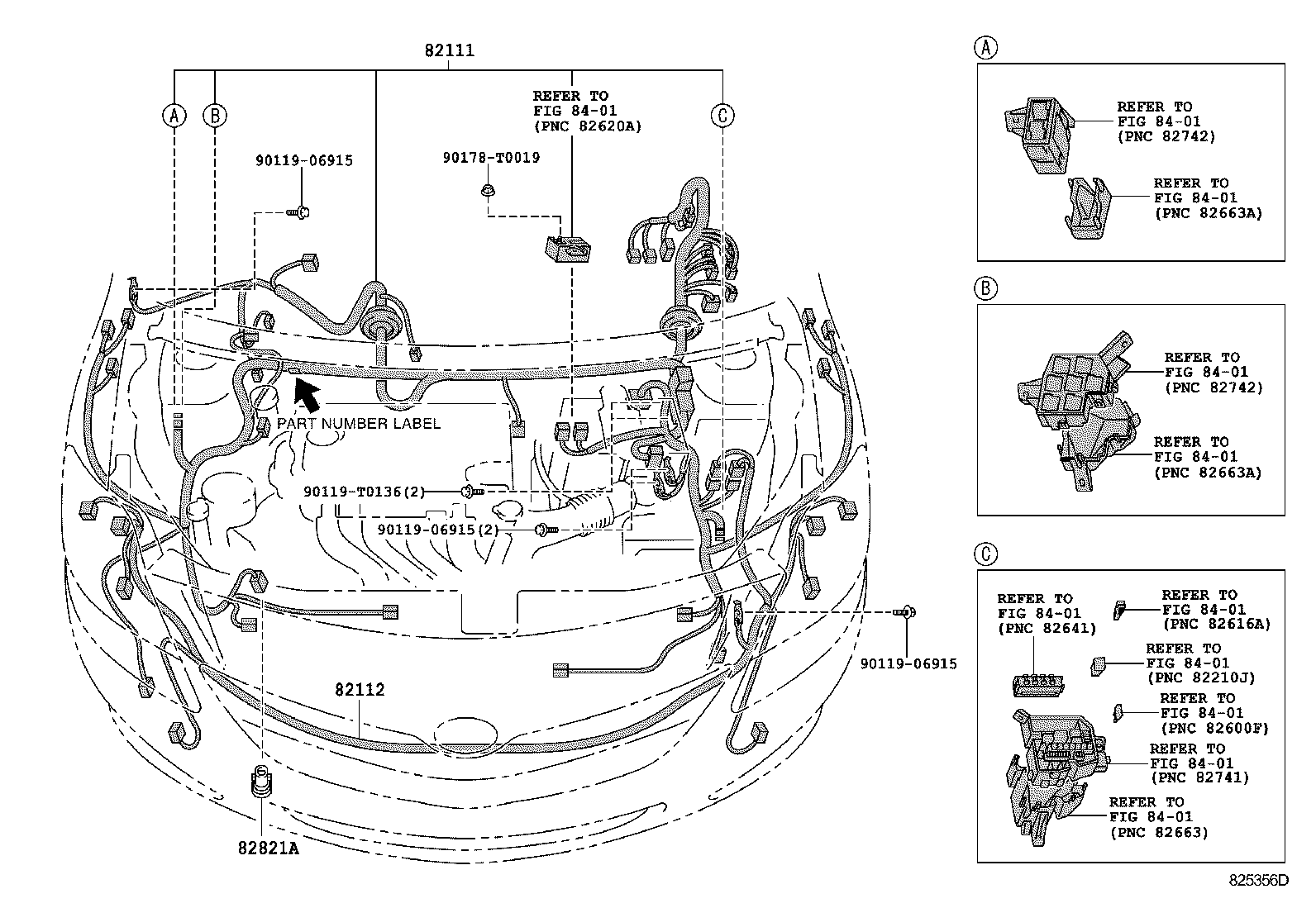

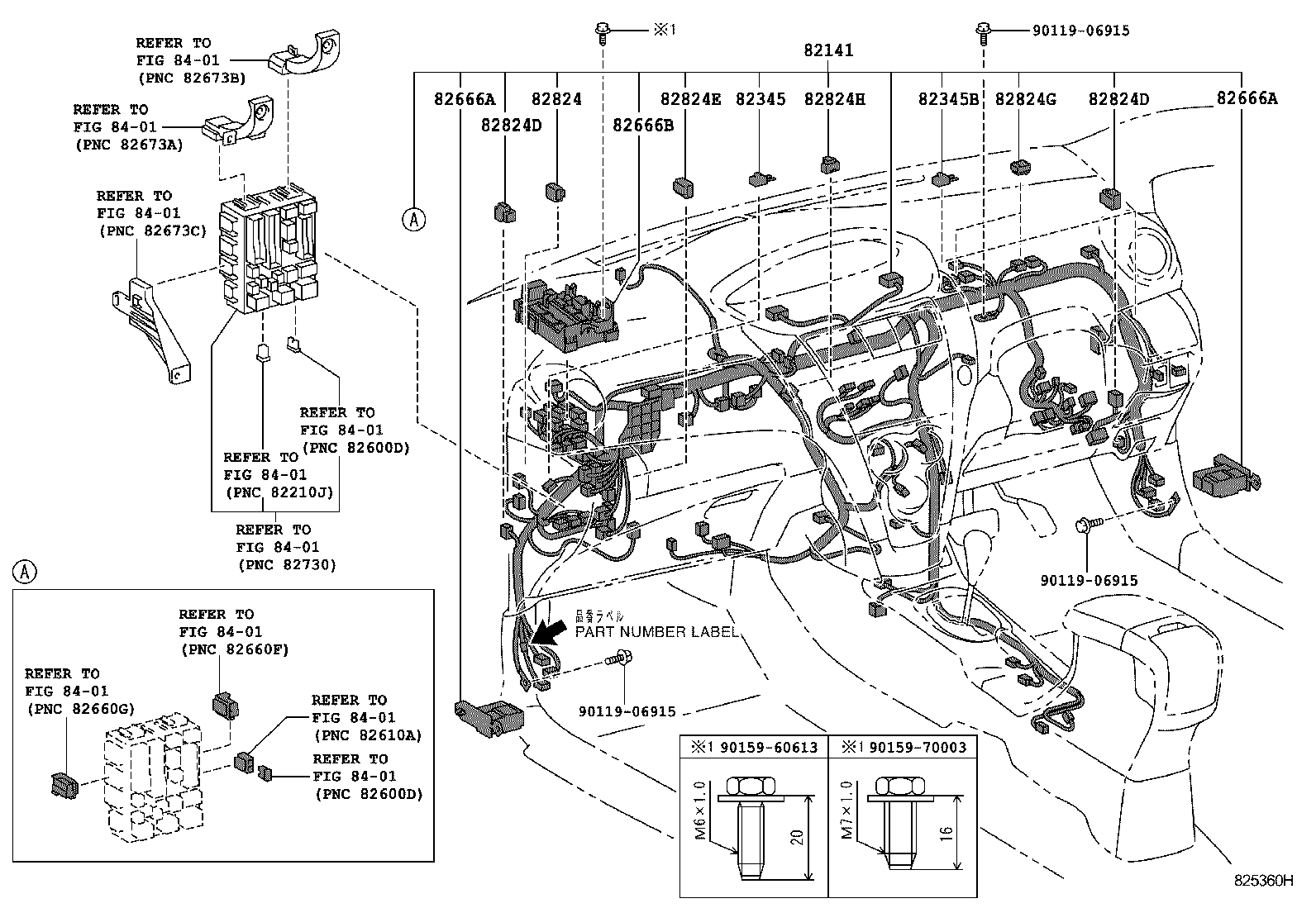

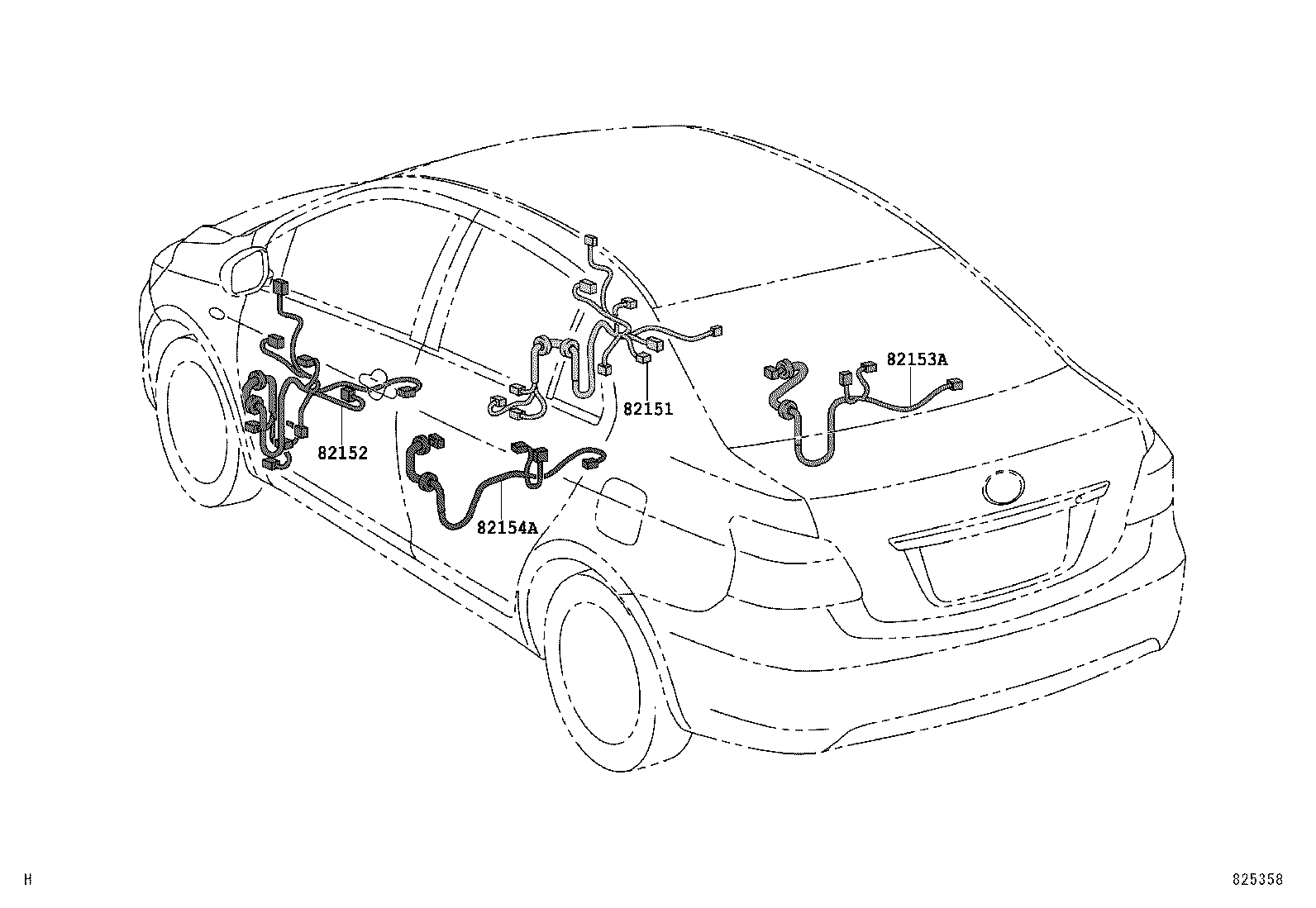

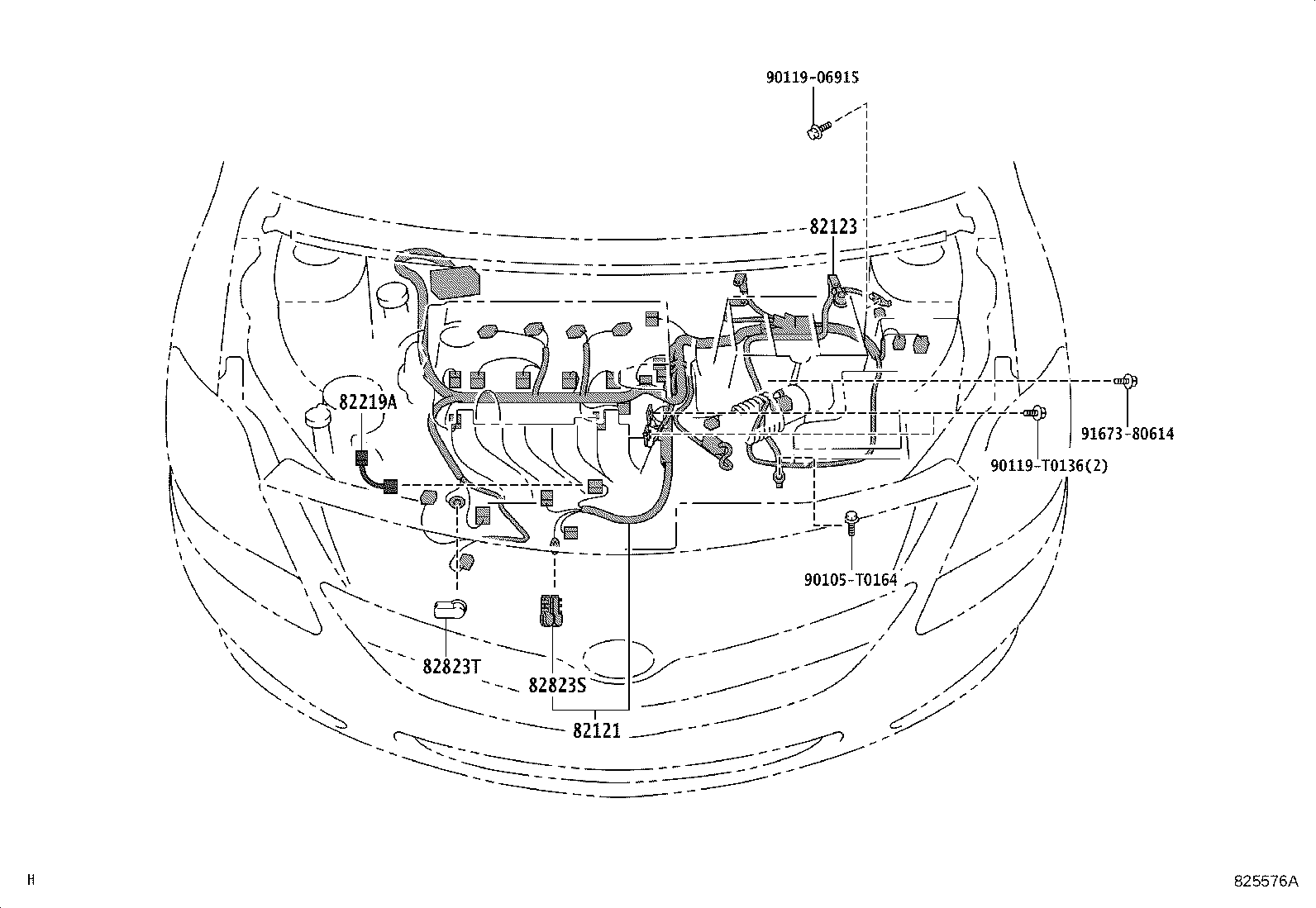

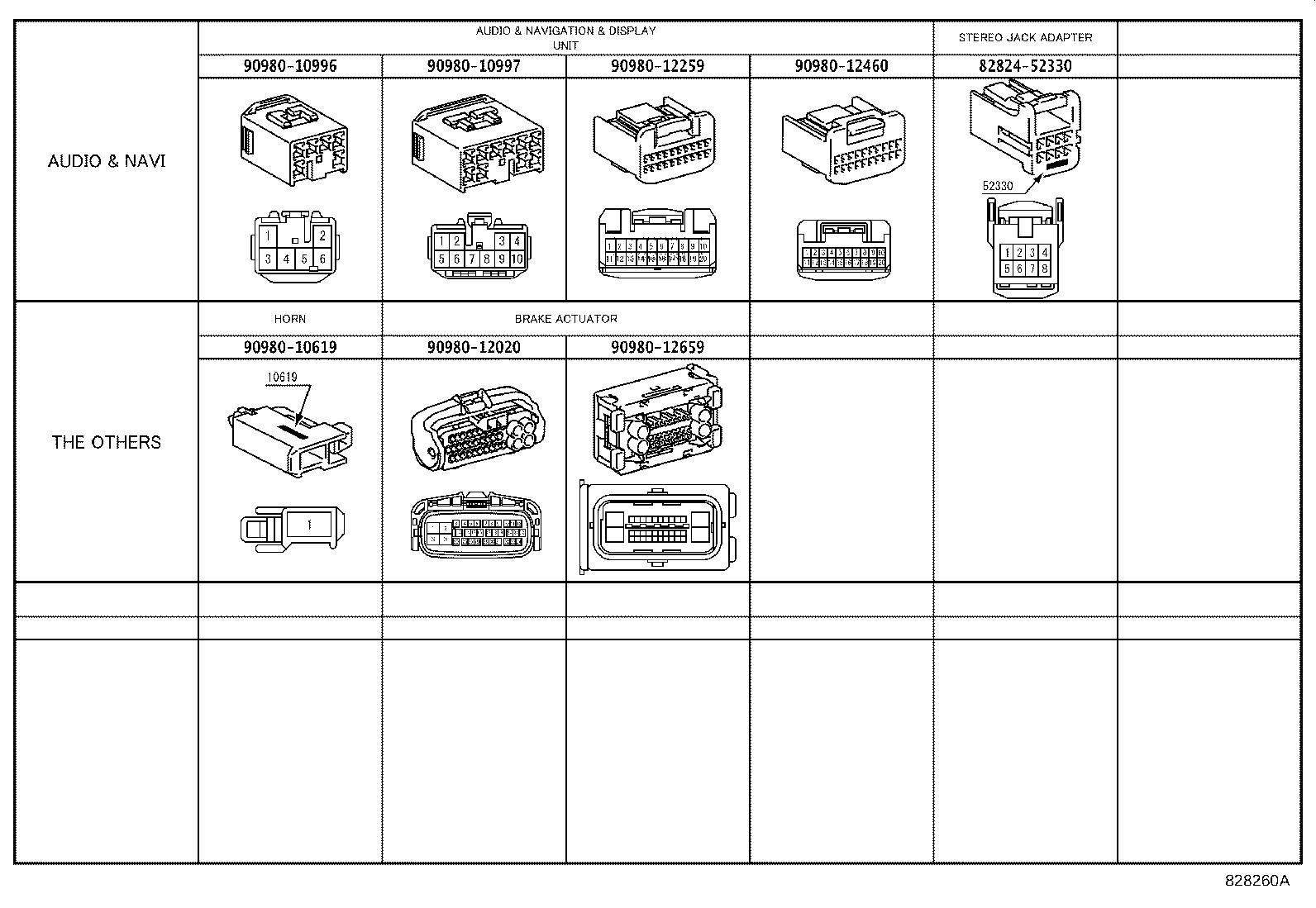

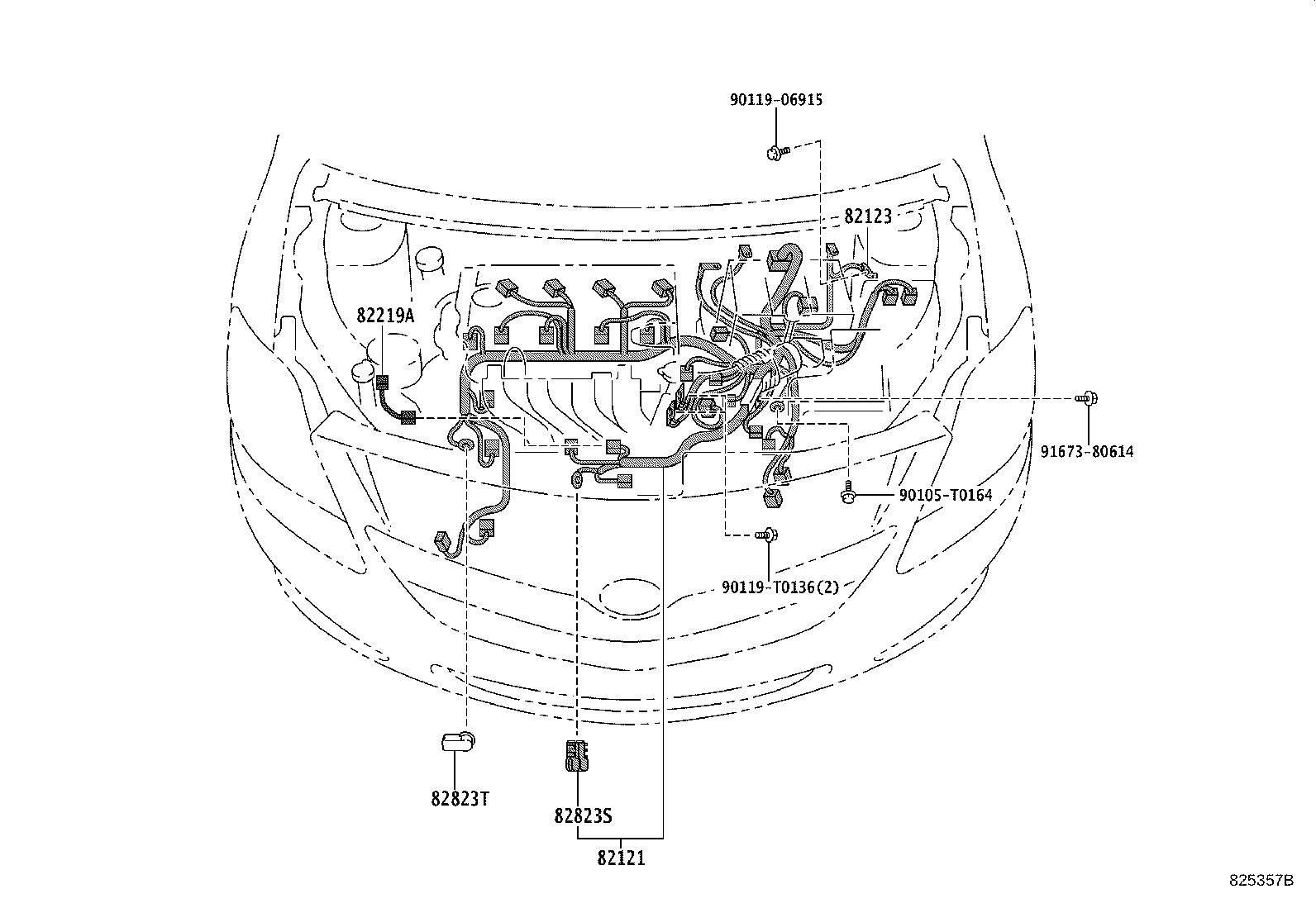

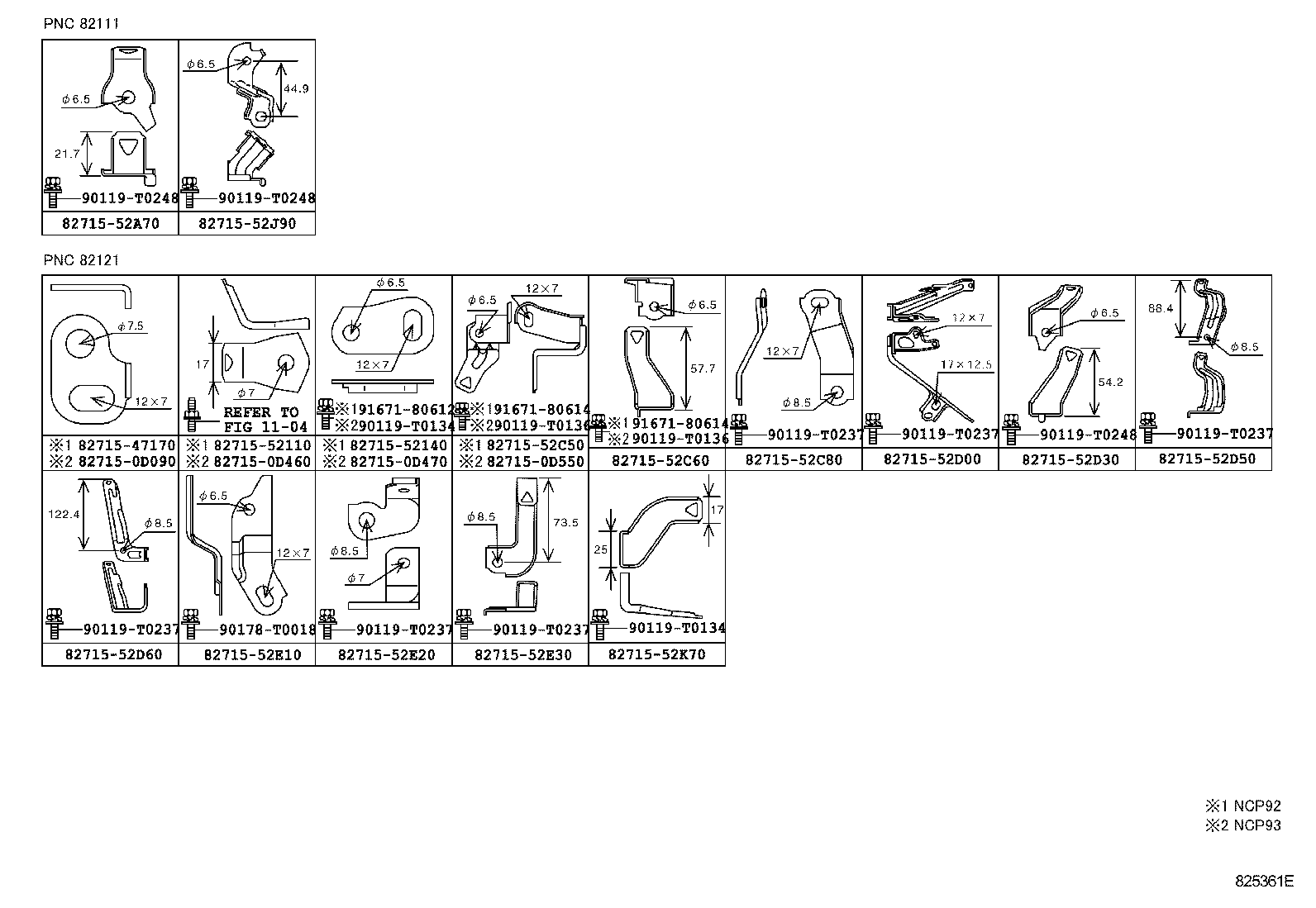

Figure 825577A 825577A 2007-08 → 2010-04 Figure 825356D 825356D 2007-02 → 2010-03 Figure 825356D 825356D 2007-10 → 2010-04 Figure 827003 827003 2010-04 → — Figure 827004 827004 2010-03 → — Figure 827004 827004 2010-04 → — Figure 825576A 825576A 2007-08 → — Figure 825357B 825357B 2007-02 → — Figure 825578D 825578D 2007-08 → — Figure 825360H 825360H 2007-02 → — Figure 825358 825358 2007-02 → — Figure 825359B 825359B 2007-02 → — Figure 825361E 825361E 2007-02 → — Figure 825369H 825369H 2007-02 → — Figure 828260A 828260A 2007-02 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

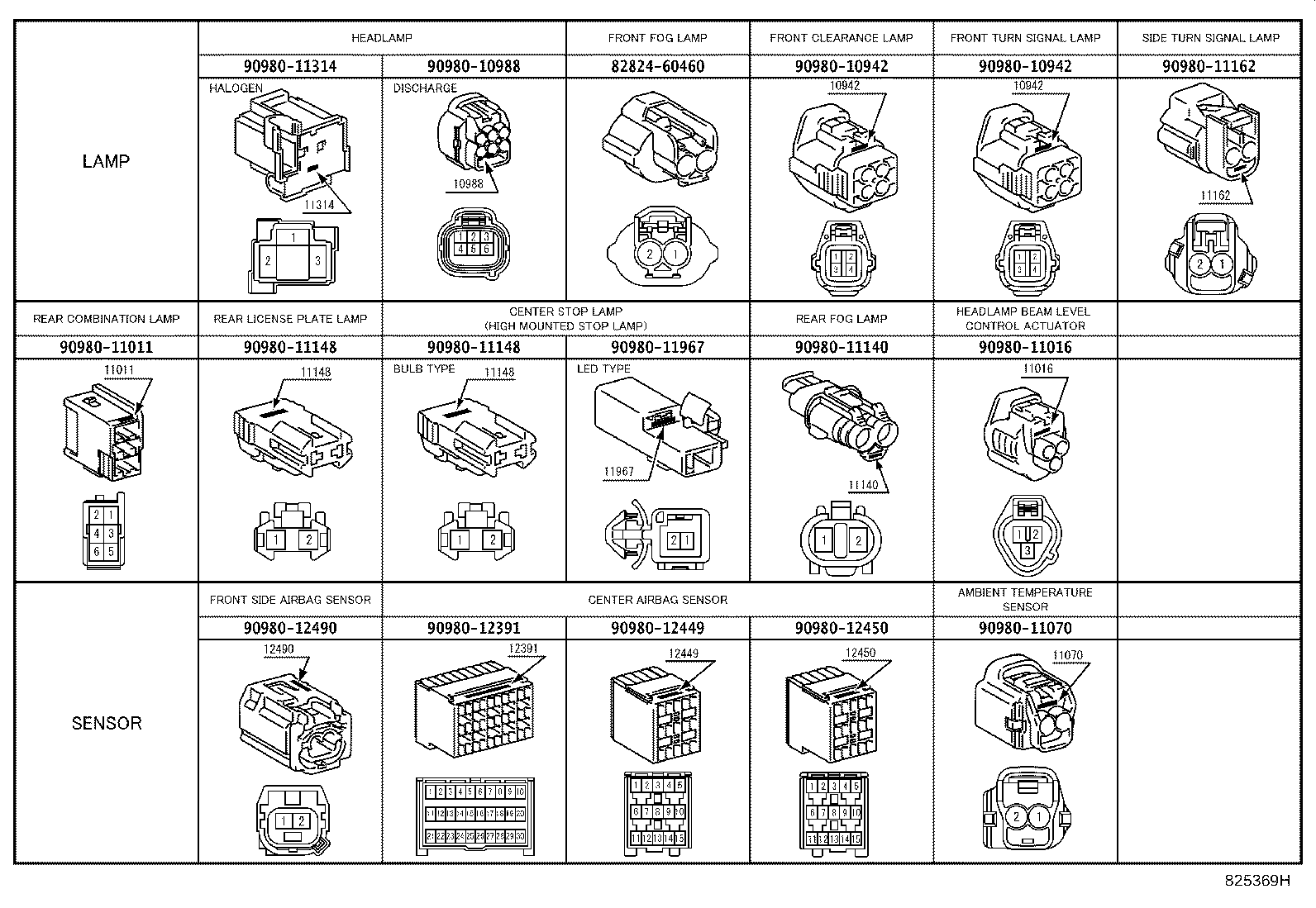

82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
