Toyota Vios

2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

4 part groups · 2 illustrations

Illustrations

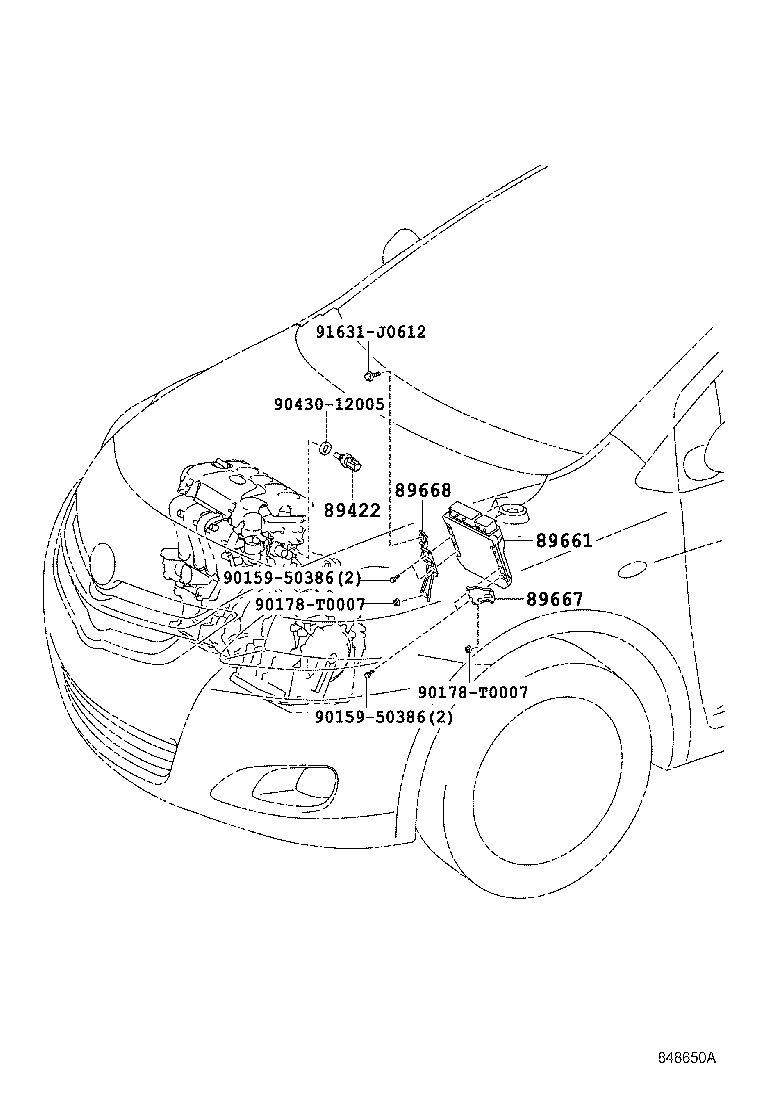

Figure 849020A 849020A 2007-08 → — Figure 848650A 848650A 2007-02 → —

Part groups

PNCDescription
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
