Toyota Vios

2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 3 illustrations

Illustrations

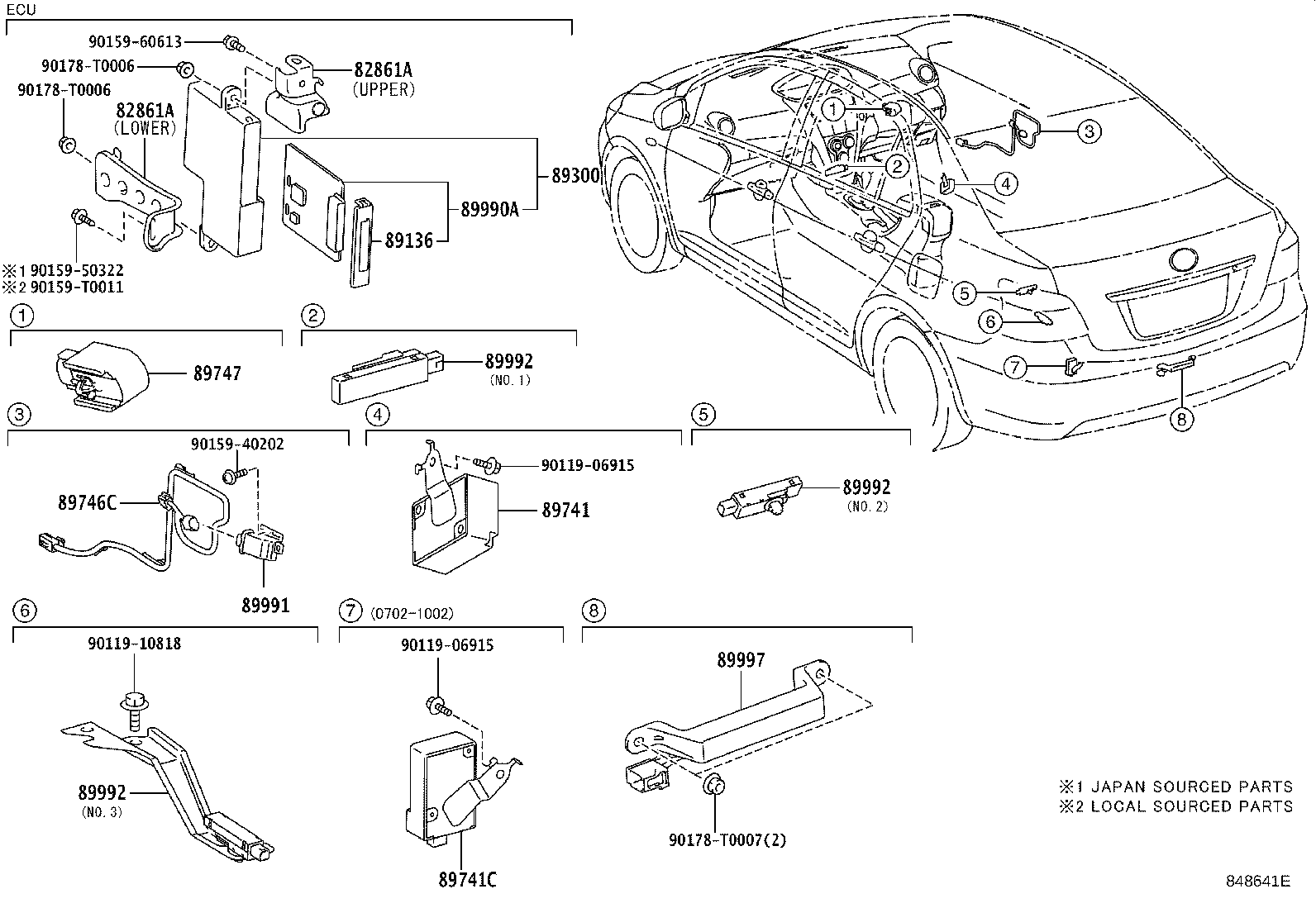

Figure 849021 849021 2007-02 → — Figure 849021 849021 2010-03 → — Figure 848641E 848641E 2007-02 → —

Part groups

PNCDescription
82861A Bracket, Computer Integration, NO.1
89136 Cover, Ecu Aggregation, NO.1
89300 Box Assy, Ecu Aggregation
89741 Receiver, Door Control
89741C Receiver, Door Control, NO.3
89746C Harness, Electrical Key Wire, NO.1
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
