Toyota Vios
2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General
Supported model
Data version 2014-01
Heating & Air Conditioning - Control & Air Duct
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

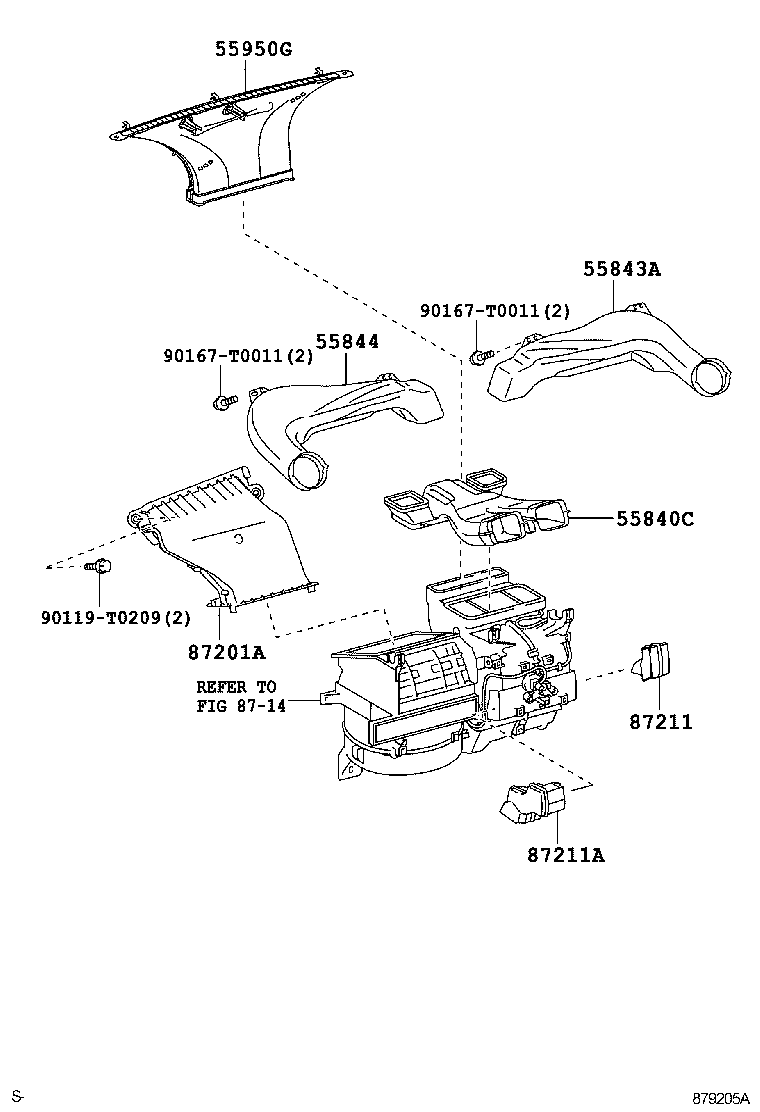

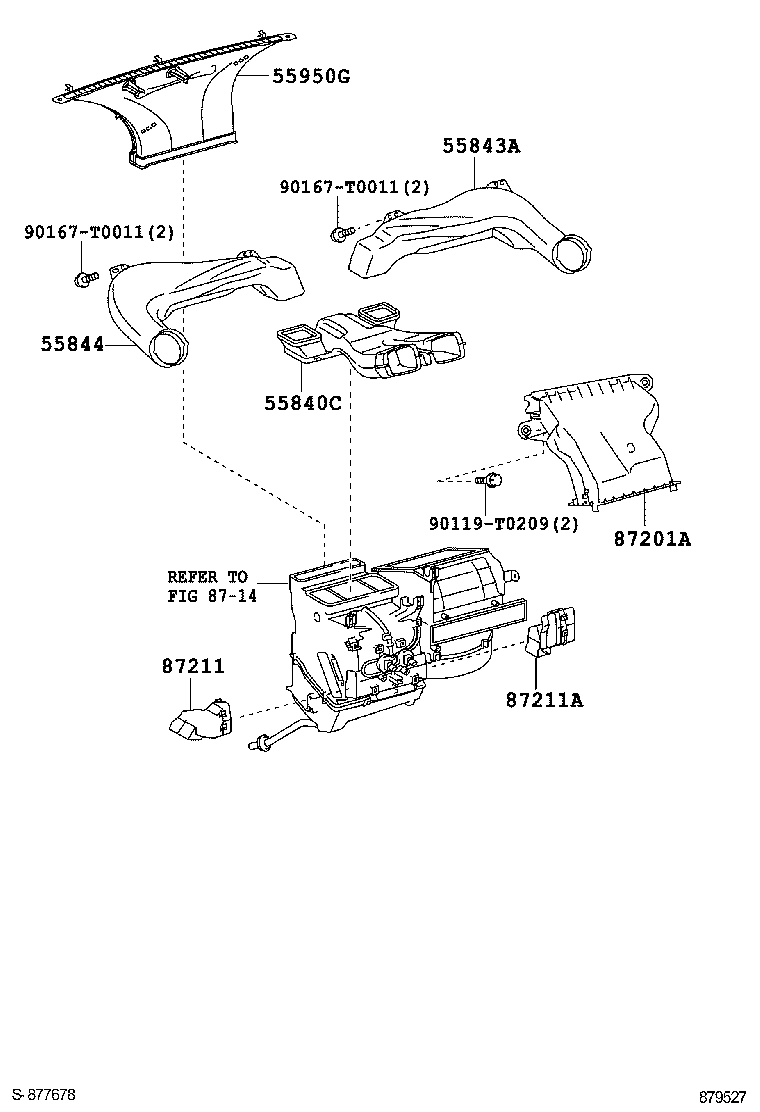

| 55840C | Duct Assy, Heater TO Register, NO.6 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55901 | Base Sub-assy, Heater Control |
| 55902B | Control Sub-assy, Heater |
| 55905B | Knob, Heater Control, NO.2 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910B | Bulb, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 87201A | Duct Sub-assy, Air |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |

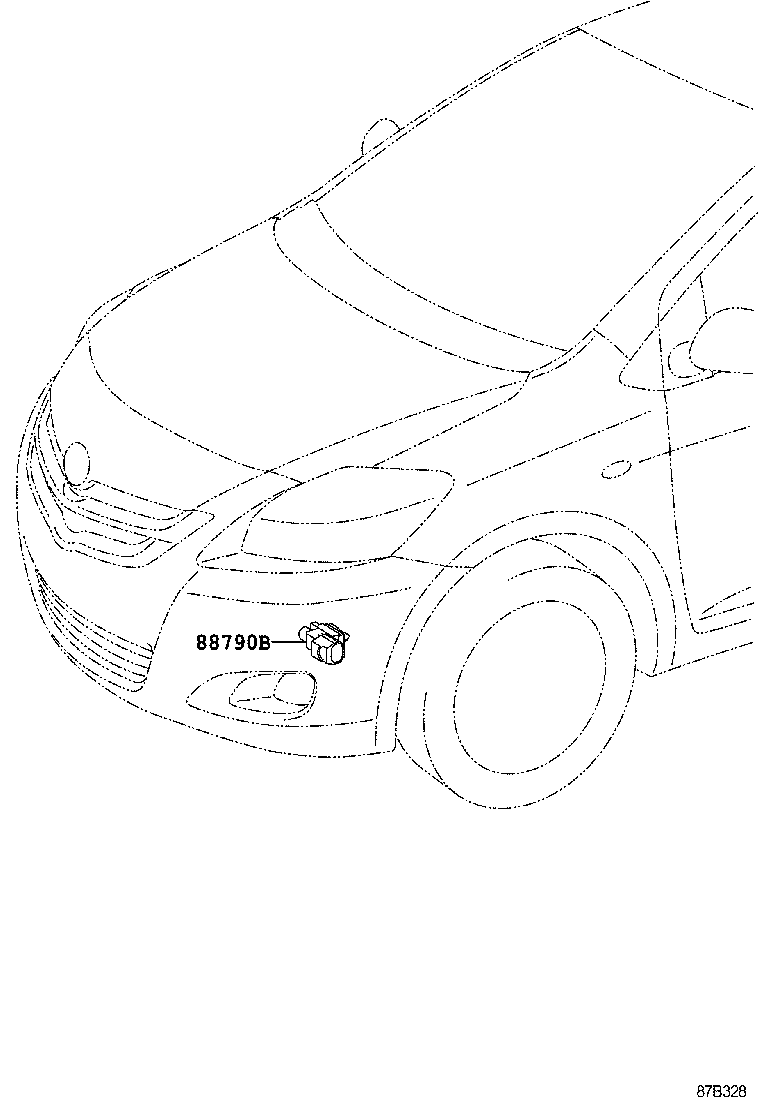

| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
