Toyota Vios
2007-02 → 2014-03 · chassis NCP9# · catalogue 149320 · General
Supported model
Data version 2014-01

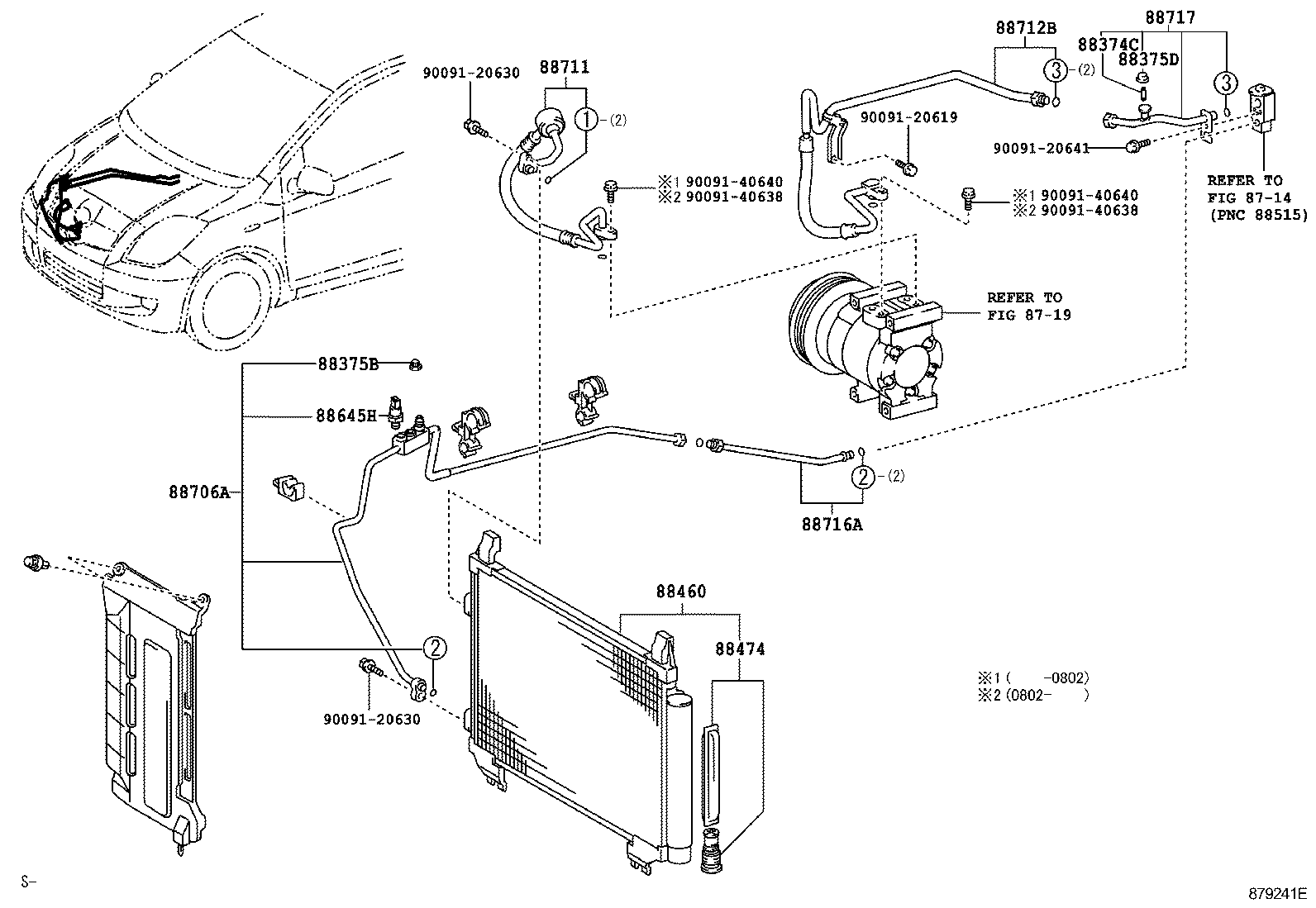

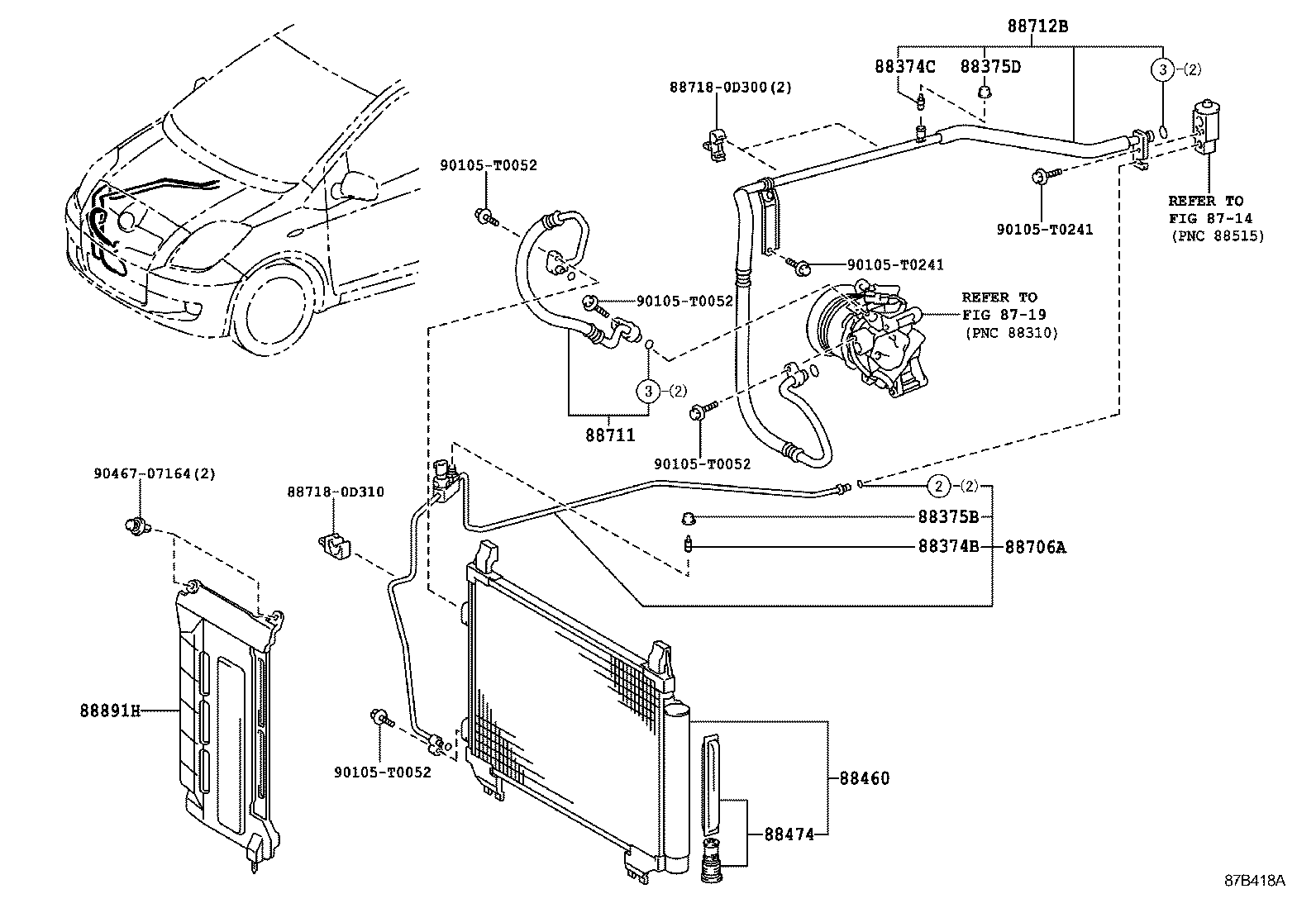

Heating & Air Conditioning - Cooler Piping
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88645H | Switch, Pressure NO.1 |
| 88706A | Tube Sub-assy, Liquid, A |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712B | Hose, Cooler Refrigerant Suction |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
| 88891H | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
