Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · General
Supported model
Data version 2024-06

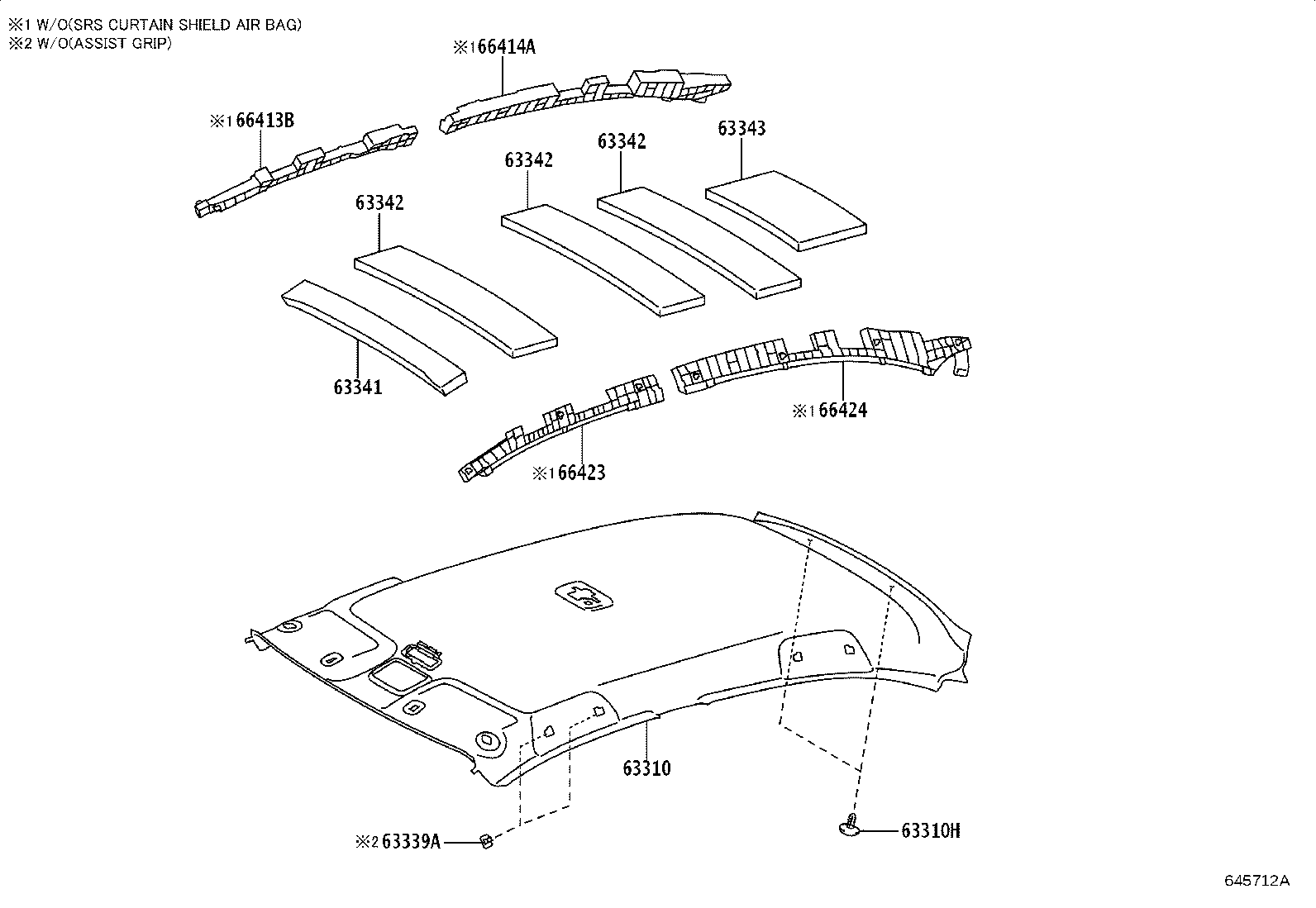

Roof Headlining & Silencer Pad
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
