Toyota Vios/Yaris

2023-03 → present · chassis NSP15# · catalogue 149340 · General

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 2 illustrations

Illustrations

Figure 869919B

869919B 2023-03 → —

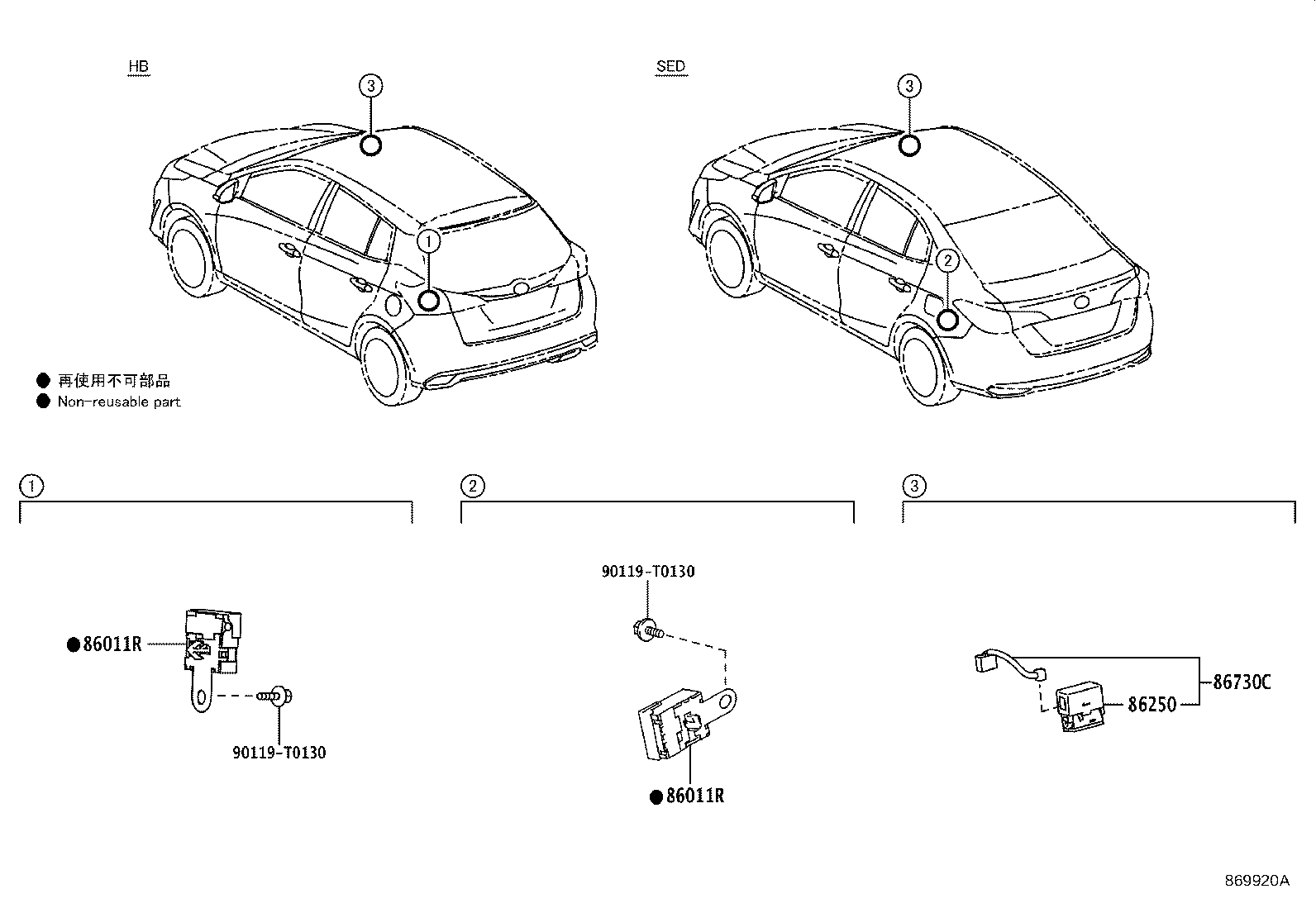

Figure 869920A

869920A 2023-03 → —

Part groups

PNC	Description
86011R	Condenser, Radio Setting
86120	Receiver Assy, Radio
86170V	Controller Assy, Remote
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86250	Microphone Assy, Amplifier
86730C	Microphone Assy, Telephone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
