Toyota Yaris
2019-08 → 2021-03 · chassis NSP151 · catalogue 14A310 · General
Supported model
Data version 2021-11

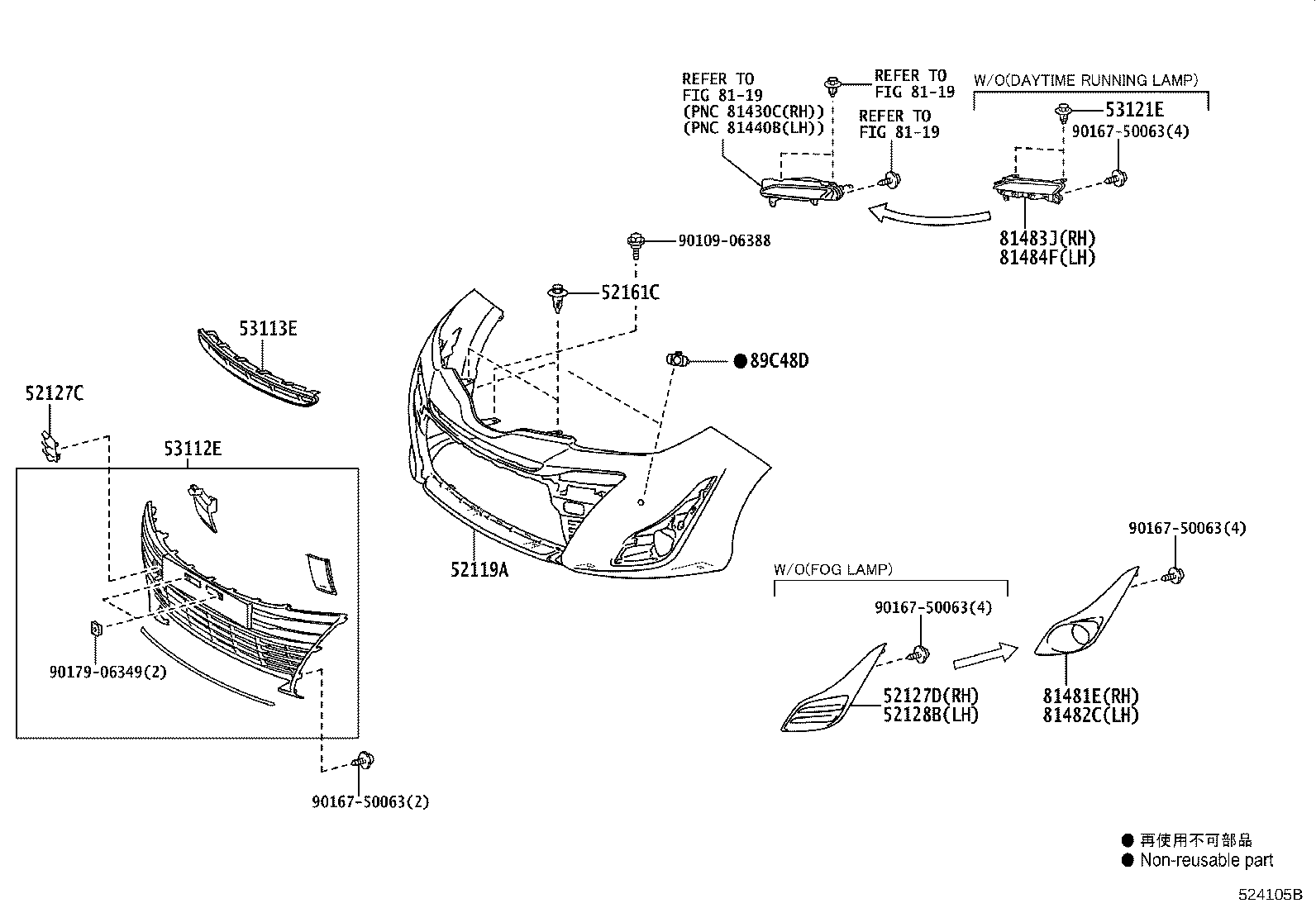

Front Bumper & Bumper Stay
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113E | Grille, Radiator, Lower NO.2 |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
| 53879H | Retainer, Front Fender Liner |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 81483J | Cover, Daytime Running Lamp, RH |
| 81484F | Cover, Daytime Running Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
